Page 1
• USERS OPERATING INSTRUCTIONS
IMPORTANT - PLEASE READ AND FOLLOW
IMPORTANT - PLEASE READ AND FOLLOW
✓ Before beginning, please read these instructions completely and carefully.
✓ Do not remove permanently affixed labels, warnings, or plates from the product. This
may void the warranty.
✓ Please observe all local and national codes and ordinances.
✓ Please ensure that this product is properly grounded.
✓ The installer should leave these instructions with the consumer who should retain
for local inspector's use and for future reference.
✓ The electrical plug should always be accessible.
Installation must conform with local codes or in the absence of codes, the National Fuel
Gas Code ANSIZ223.1 - Iatest edition. Electrical installation must be in accordance with the
National Electrical Code, ANSI/NFPA70 - latest edition and/or local codes. IN CANADA:
Installation must be in accordance with the current CAN/CGA-B149.1 National Gas
Installation Code or CAN/CGA-B149.2, Propane Installation Code and/or local codes.
Electrical installation must be in accordance with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
INSTALLATION IN MANUFACTURED (MOBILE) HOME: The installation must conform with
the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD (Part
280)] or, when such standard is not applicable, the Standard for Manufactured Home
Installations, ANSI/NCSBCS A225.1, or with local codes where applicable.
INSTALLATION IN RECREATIONAL PARK TRAILERS: The installation must conform with
state or other codes or, in the absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Installation of any gas-fired equipment should be made by a Iicensed plumber. A manual
gas shut-off valve must be installed in the gas supply line ahead of the appliance in the gas
stream for safety and ease of service.
If an external electrical source is utilized, the appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the
national Electrical Code, ANSI/NFPA 70.
DOUBLE OVEN GAS RANGE
for residential use only
This range is supplied with a protective film on steel and aluminium parts.
This film must be removed before installing/using the appliance.
THIS RANGE IS FOR RESIDENTIAL USE ONLY
Models: DEFSGG 36 D..
Page 2
2
✓ Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
✓ WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• lmmediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• lf you cannot reach your gas supplier, call the fire department.
✓ Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT
FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.
WARNING
NEVER use this appliance as a space heater to heat or warm the
room. Doing so may result in carbon monoxide poisoning and
overheating of the oven.
WARNING
• ALL RANGES CAN TIP
• INJURY TO PERSON COULD RESULT
• INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
• SEE INSTALLATION INSTRUCTIONS
Page 3
3
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations reported below are for
your own safety and that of others. They will also provide a means by
which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future, either
to yourself or to others in the event that doubts should arise relating to
its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage is
to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.
This appliance is designed and manufactured solely for the cooking of domestic (household)
food and in not suitable for any none domestic application and therefore should not be used
in a commercial environmement.
The appliance guarantee will be void if the appliance is used within a none domestic
environnement i.e. a semi commercial, commercial or communal environment.
Page 4
4
USER INSTRUCTIONS
GENERAL INFORMATION
WARNING!!
1. This appliance shall not be used for space heating. This
information is based on safety considerations.
2. AlI openings in the wall behind the appliance and in the floor
under the appliance shall be sealed.
3. Keep appliance area clear and free from combustible
materials, gasoline, and other flammable vapors.
4. Do not obstruct the flow of combustion and ventilation air.
5. Disconnect the electrical supply to the appliance before
servicing.
6. When removing appliance for cleaning and/or service;
A. Shut off gas at main supply.
B. Disconnect AC power supply.
C. Disconnect gas line to the inlet pipe.
D. Carefully remove the range by pulling outward.
CAUTION: Range is heavy; use care in handling.
7.
Electrical Requirement
Electrical installation should comply with national and local
codes.
8.
Air Supply and Ventilation
The installer must refers to local/national codes.
9.
Gas Manifold Pressure
Natural gas - 4.0” W.C.P.
LP/Propane - 11.0” W.C.P.
10. The misuse of oven door (e.g. stepping, sitting, or leaning
on them) can result in potential hazards and/or injuries.
11. When installing or removing the range for service, a rolling
lift jack should be used. Do not push against any of the
edges of the range in an attempt to slide it into or out of
the installation. Pushing or pulling a range (rather than using
a lift jack) also increases the possibility of bending the leg
spindles or the internal coupling connectors.
WARNING!!
ELECTRICAL GROUNDING INSTRUCTIONS
The range must be electrically grounded in accordance
with local codes or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA No. 70-latest edition.
Installation should be made by a Iicensed electrician.
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED.
If an external electrical source is utilized, the installation must
be electrically grounded in accordance with local codes or, in
the absence of local codes, with the national Electrical Code,
ANSI/NFPA 70.
This appliance is equipped with a three-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded socket.
Do not under any circumstances cut or remove the third
(ground) prong from the power plug.
REPLACEMENT PARTS
Only authorized replacement parts may be used in performing
service on the range. Replacement parts are available from
factory authorized parts distributors. Contact the nearest parts
distributor in your area.
Page 5
5
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental rules.
In particular:
✓
Never touch the appliance with wet hands or feet;
✓
Do not operate the appliance barefooted;
✓
Do not allow children or disabled people to use the appliance without your supervision.
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or unreasonable use of the appliance.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified technician.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
The packaging material is recyclable and is marked with the recycling symbol
.
✓
Do not attempt to modify the technical characteristics of the appliance as this may
become dangerous to use.
✓
Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
✓
After use, ensure that the knobs are in
OFF
position.
✓
Do not allow children or other incapable people to use the appliance without
supervision.
✓
During and after use of the range, certain parts will become very hot. Do not touch
hot parts.
✓
Keep children away from the range when it is in use.
✓
This range is supplied with a protective film on steel and aluminium parts. This film
must be removed before installing/using the appliance.
✓
Fire risk! Do not store flammable material in the ovens, and in the storage
compartment.
✓
Make sure that electrical cables connecting other appliances in the proximity of the
range cannot come into contact with the hob or become entrapped in the oven
doors.
✓
Do not line the oven walls with aluminium foil. Do not place shelves, grill-pan, pans
or other cooking utensils on the base of the oven chamber.
✓
The manufacturer declines all liability for injury to persons or damage to property
caused by incorrect or improper use of the appliance.
✓
To avoid any possible hazard, the appliance must be installed by qualified personnel
only. Any repairs by unqualified persons may result in electric shock or short circuit.
In order to avoid possible injuries to your body or to the appliance, do not attempt
any repairs by yourself. Such work should be carried out by qualified service
personnel only.
✓
Danger of burns! The oven and cooking accessories may become very hot during
operation. Make sure children are kept out of reach and warn them accordingly. To
avoid burns use kitchen clothes and gloves when handling hot parts or utensils.
✓
Stand away from the range when opening oven door. Hot air or steam which
escapes can cause burns to hands, face, and/or eyes.
✓
Never clean the range, ovens and storage compartment with a high-pressure steam
cleaning device, as it may provoke a short circuit.
✓
This appliance is intended for use in your household. Never use the appliance for
any other purpose!
✓
If you should decide not to use this appliance any longer (or decide to substitute an
older model), before disposing of it, it is recommended that it be made inoperative in
an appropriate manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous parts be made
harmless, especially in relation to children who could play with old appliances.
Remove the doors and the storage compartment pivoting panel before disposal to
prevent entrapment.
Page 6
6
CAUTION:
If the burner is accidentally extinguished, turn the gas off
at the control knob and wait at least 1 minute before
attempting to relight.
CAUTION:
Gas appliances produce heat and humidity in the environment in which they are installed.
Ensure that the cooking area is well ventilated following
national/local codes.
features
COOKING HOB
1. Semi-rapid burner (SR) - 6000 BTU/hr
2. Triple-ring burner (TR) - 12000 BTU/hr

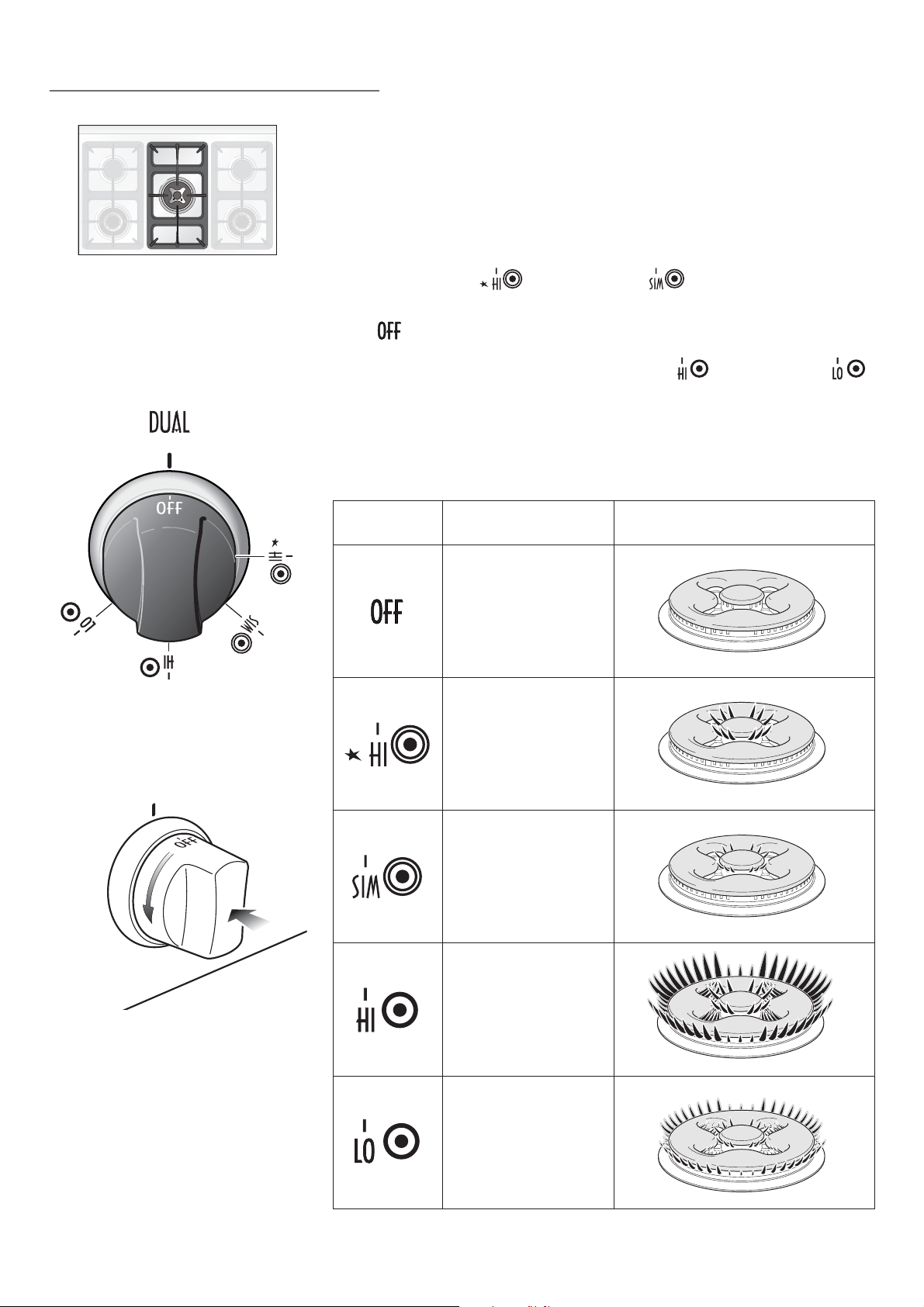

3. Dual burner (D) - 16000 BTU/hr (Natural gas),
15000 BTU/hr (LP/Propane)
Note:
- The electric gas-lighting device is incorporated into the
knobs.
- The appliance has a safety valve system fitted, the flow of
gas will be stopped if and when the flame should accidentally go out.
1 1
22
3
11
22
3
Fig. 1.1
WARNING - VERY IMPORTANT NOTICE
Never obstruct the slots on the backguard / island trim.
Backguard fitted
Island trim fitted
Page 7
7
CONTROLS DESCRIPTION
1. Front left burner (2) control knob
2. Rear left burner (1) control knob
3. Central dual burner (3) control knob
4. Rear right burner (1) control knob
5. Front right burner (2) control knob
6. Left oven light & fan control knob
7. Right oven light & fan control knob
8. Left gas oven/gas broil control knob
9. Right gas oven/gas broil control knob
10. Cooling fan failure warning light
11. Electronic clock/electronic alarm
Fig. 1.2
When the cooling fan failure warning light is OFF the cooling fan
motor is correctly operating.
Operate the cooking hob
burners and the ovens as
per instruction manual.
When the cooling fan failure warning light is lighted this indicates
the malfunctioning of the cooling fan motor.
The burners of the cooking hob and both
the gas ovens can be used.
SERVICE
Both the gas ovens cannot be used.
Only the burners of the cooking hob
can be used.
Contact the After-Sales
Service.
6118 1 2 3 4 5 7 9 10
Page 8
8
Fig. 2.2
Fig. 2.1
GAS BURNERS (Semi-rapid and triple ring)
Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 2.1) which
control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the position.
Other intermediate operating adjustments can be achieved by positioning the
indicator between the maximum and minimum aperture positions, and never between
the maximum aperture and positions.
N.B. When the range is not being used, set the gas knobs to their positions
and also close the gas shut-off valve placed on the main gas supply line.
how to use the top burners
Knob
position
Function SEMI-RAPID burner TRIPLE RING burner
closed
valve
maximum
rate
minimum
rate
Page 9
9
Caution!
The range becomes very hot during operation.
Keep children well out of reach.
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE
(Semi-rapid and triple ring)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise direction up to the position
(maximum rate), push in and hold the knob until the flame has been lit (fig. 2.2).
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burner in position, try again with the knob in position.
If there is no mains electrical supply, bring a lighted match close to the burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
3 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position, wait for at least 1
minute and then repeat the lighting procedure.
If your local gas supply makes it difficult to light the burner with the knob set to maximum, set the knob to minimum and repeat the operation.
Page 10
10
Fig. 2.3
Fig. 2.4
GAS BURNERS (Dual)
The Dual Burner is a very flexible burner which allows different regulations and optimal
cooking.
It is composed by one inner and two outer crowns; the flame of the inner crown can be
regulated separately from the flames of the outer crowns.
The Dual Burner can be used:
- as a small burner (flame produced only by the inner crown) which can be adjusted
from the maximum ( ) to the minimum ( ) position. Intermediate operating adjustments can be achieved by positioning the indicator between the maximum and minimum opening positions, and never between the maximum opening
and position.
- as a high-power burner (all flames produced simultaneously by inner and outer
crowns) which can be adjusted from the maximum ( ) to the minimum ( )
position.
Gas flow to the burner is adjusted by turning the knob (illustrated in fig. 2.3) which controls the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on
the control panel achieves the following functions:
Knob
position
Function DUAL burner
closed
valve
maximum rate
of inner crown
(only inner flame
at the maximum)
minimum rate
of inner crown
(only inner flame
at the minimum)
maximum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the maximum)
minimum rate of
inner + outer crowns
(inside and outside
flames in
simultaneously
at the minimum)
Page 11
11
LIGHTING GAS BURNERS FITTED WITH FLAME FAILURE
SAFETY DEVICE (Dual Burner)
In order to light the burner, you must:
1 – Push and turn the knob in an anti-clockwise direction up to the position
(maximum rate of inner crown); push in and hold the knob until the flame has been
lit.
The sparks produced by the lighter situated inside the relative burner will light the
flame.
In the event that the local gas supply conditions makes it difficult to light the burn-
er in position, try again with the knob in position.
If there is no mains electrical supply connection, bring a lighted match close to the
burner.
2 – Wait for about ten seconds after the gas burner has been lit before letting go the
knob (safety device activation delay).
2 – Adjust the gas valve to the desired position.
If the burner flame should go out for some reason, the safety valve will automatically
stop the gas flow.
To re-light the burner, return the knob to the closed position ( ), wait for at least 1
minute and then repeat the lighting procedure.
N.B. When the range is not being used, set the gas knobs to their positions
and also close the gas shut-off valve placed on the main gas supply line.
CAUTION!
The range becomes very hot during operation. Keep children well out of reach.
Page 12
12

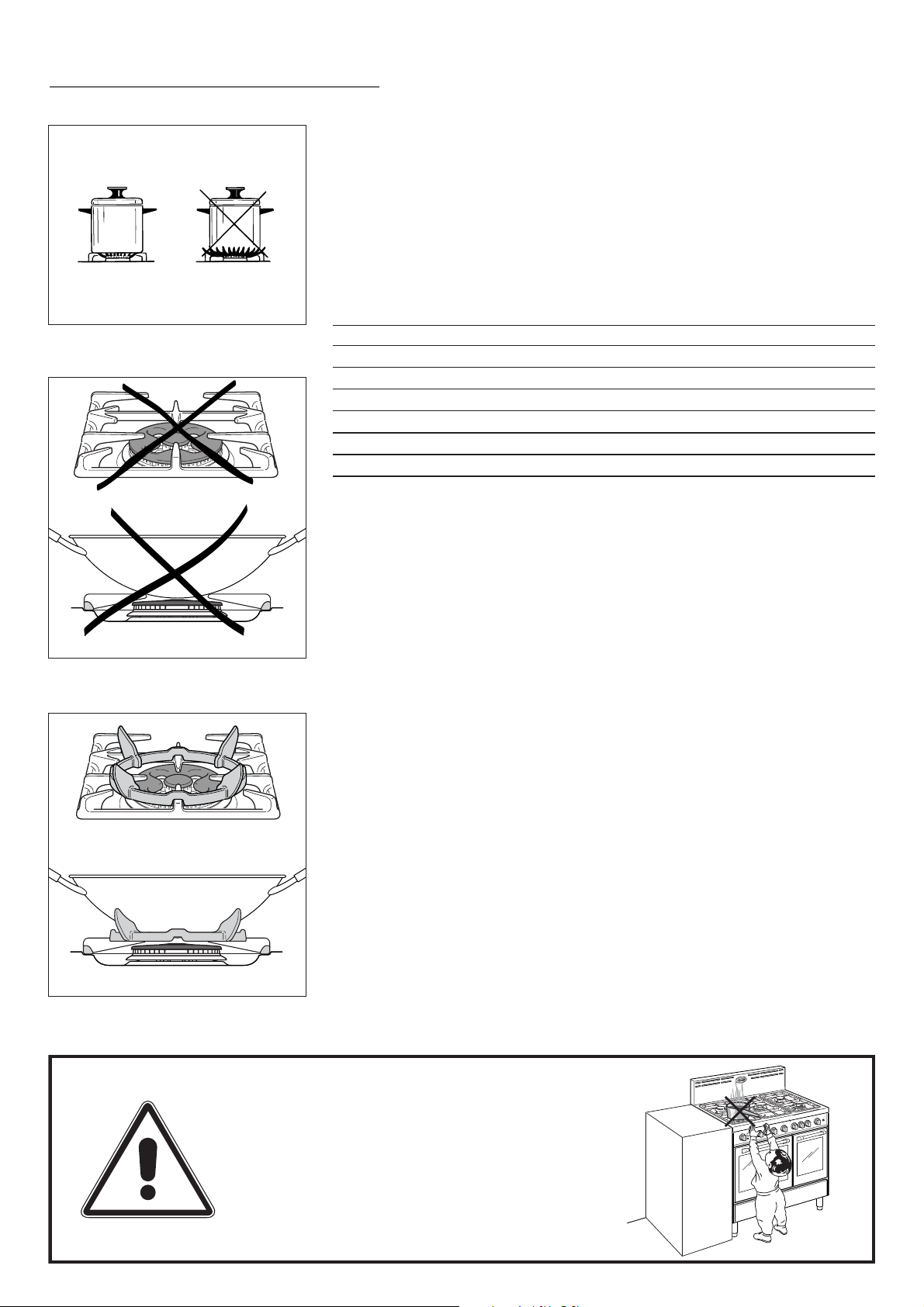

CORRECT USE OF DUAL BURNER (Fig. 2.6a - 2.6b)
The flat-bottomed pans are to be placed directly onto the pan-support.
When using a WOK you need to place the supplied stand in the burner to avoid any
faulty operation of the dual burner (Figs. 2.6a - 2.6b).
IMPORTANT:
The special grille for wok pans (fig. 2.6b) MUST BE PLACED ONLY over the pan-rest
for the dual burner.
Fig. 2.6a
WRONG
Fig. 2.6b
CORRECT
CHOICE OF BURNER (fig. 2.5)
The symbols printed on the panel above the gas knobs indicate the correspondence
between the knob and the burner.
The most suitable burner is to be chosen according to the diameter and volume capacity of the container to be warmed.
It is important that the diameter of the pots or pans suitably match the heating potential of the burners in order not to jeopardise the efficiency of the burners, bringing about
a waste of gas fuel.
A small diameter pot or pan placed on a large burner does not necessarily mean that
boiling conditions are reached quicker.
Fig. 2.5
DIAMETERS OF PANS WHICH MAY BE USED ON THE HOB BURNERS
BURNER MINIMUM MAXIMUM
Semi-rapid 16 cm (6" 19/64) 24 cm (9" 7/16)
Triple-ring 26 cm (10" 3/16) 28 cm (11" 1/16)
Dual 26 cm (10" 3/16) 28 cm (11" 1/16)
Wok pans max 36 cm (14" 3/16)
Do not use pans with concave or convex bases
Make sure that the handles of
cookware do not stick out over
the edge of the range, to avoid
them being knocked over by
accident. This also makes it more
difficult for children to reach the
cooking vessels.
Page 13
13
how to use the gas ovens
USING THE OVENS FOR THE FIRST TIME
It is advised to follow these instructions:
– Furnish the interior of the oven by placing the wire racks as described at chapter
“Cleaning and maintenance”.
– Insert shelves and tray.
–Turn the oven on to the maximum temperature (position ) to eliminate
possible traces of grease from the oven burner. The same operation should be
followed for broil burner.
– Switch off the electrical supply, let the oven cool down, then clean the interior
of the oven with cloth soaked in water and detergent (neutral) then dry carefully.
Attention: the range becomes
very hot during operation.
Attention: the oven door becomes
very hot during operation.
Keep children away.
WARNING:
The door is hot, use the handle.
GENERAL FEATURES (LEFT and RIGHT OVEN)
Both the gas ovens are provided with:
a) Oven burner, mounted on the lower part of the oven (Left oven: 13000 BTU/hr;
Right oven: 9000 BTU/hr)
b) Broil burner, mounted on the upper part of the oven (Left oven: 8500 BTU/hr;
Right oven: 8000 BTU/hr).
c) Fan motor which can be used in combination with the oven burner or separately
(without heating). It is not possible to use the fan motor in combination with
the broil burner: a safety device switches off the fan motor when the gas
oven/broil control knob is turned on broil position.
d) Light that illuminates the oven to enable visually controlling the food that is
cooking.
N.B. When the range is not being
used, set the gas knobs to their
positions and also close the
gas shut-off valve placed on the
main gas supply line.
VERY IMPORTANT
The oven/broil shall be used
always with the oven door closed.
OPERATING PRINCIPLES
Heating and cooking are obtained in the following ways:
a. by normal convection
The heat is produced by the oven burner.
c. by forced convection
The heat produced by the oven burner is distributed throughout the oven by
the fan. The hot air envelops the food in the oven, provoking a complete and
rapid cooking.
It is possible to cook several dishes simultaneously.
d. by radiation
The heat is irradiated by the infra red broil burner.
f. by ventilation (this is not a cooking function)
The food is defrosted by using the fan only without oven burner.
Do not use
Broiling level
Oven cooking level
Oven cooking level
1st STEP
2nd STEP
rd
3
STEP
th
STEP
4
1st STEP Do not use
2nd STEP Broiling level
3rd STEP
4th STEP
Oven cooking level
Oven cooking level
Page 14
14
Fig. 3.1a
Fig. 3.1cFig. 3.1b
OVEN THERMOSTAT (LEFT and RIGHT OVEN)
The numbers printed on the control knob (fig. 3.1a - 3.1c) indicate the increasing
oven temperature value (see temperature table near the control knob - fig. 3.1b).
Left column of the temperature table refers to oven burner used in combination
with the fan motor while right column refers to oven burner used in the normal convection mode (without fan motor).
To r egulate the temperature, set the chosen number onto the control panel indicator.
The position serves only to turn on the broil burner.
OK OK
NOT TURN
Fig. 3.2a
OK OK
NOT TURN
Fig. 3.2b
OVEN BURNER (LEFT and RIGHT OVEN)
It carries out normal “oven cooking”.
The gas flow to the burner is regulated by a thermostat which allow to maintain the
oven temperature constant.
The control of the temperature is assured by a thermostatic probe positioned inside
the oven.
The probe must be always kept in its housing, in a clean condition, as an incorrect
position or encrustment may cause an alteration in the control of the temperature.
OVEN LIGHT AND FAN MOTOR (LEFT and RIGHT OVEN)
The oven light and the fan motor are controlled by a switch knob on the control
panel (fig. 3.2a - 3.2b). To light up the oven lamp turn the knob anti-clockwise to
position.
To operate the fan motor turn the knob clockwise to position.
In this setting also the oven lamp is lighted.
WARNING: The switch knob can be turned only clockwise from
to position and anti-clockwise from to position.
The switch knob DO NOT TURN from to position. DO NOT
FORCE.
IMPORTANT NOTE: The fan motor can be used in combination only with the oven
burner. A safety device switches off the fan motor when the gas oven/broil control
knob is turned on position.
IMPORTANT NOTE FOR THE SMALL RIGHT OVEN: The fan motor, when turned
on, starts to operate after about 3 minutes from the ignition of the oven burner.
Page 15
15
Attention: the oven door becomes very hot during operation.
Keep children away.
IGNITION OF THE OVEN BURNER (LEFT and RIGHT OVEN)
IMPORTANT NOTE: during ignition of the oven burner the fan motor shall be
switched off (light and fan control knob in position - Figs. 3.2a - 3.2b).
The thermostat allows the automatic control of the temperature.
The gas delivery to the oven burner is controlled by a two way thermostatic tap (oven
and broil burners) with flame-failure device.
To light the oven burner operate as follows:
1) Open the oven door to its full extent.
WARNING: Risk of explosion! The oven door must be open during this operation.
2) Lightly press and turn the thermostat knob anti-clockwise (fig. 3.3) to max position
.
3) Press the knob right down to prime the electric ignition. Keep the knob pressed.
In case of power cut, press the knob and immediately approach a lighted match to
the opening “A” (fig. 3.4a - 3.4b).
Never continue this operation for more than 15 seconds. If the burner has still
not ignited, wait for about 1 minute prior to repeating the ignition.
4) Wait about 10/15 seconds after the burner lighting before releasing the knob (time of
priming of the valve).
5) Close the oven door slowly and adjust the burner according to the power required.
If the flame extinguishes for any reason, the safety valve will automatically shut off the
gas supply to the burner.
To r e-light the burner, first turn the oven control knob to position , wait for at least
1 minute and then repeat the lighting procedure.
Fig. 3.4a
A
Fig. 3.3
TRADITIONAL BAKING (OVEN BURNER WITHOUT FAN MOTOR)
Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.
Recommended for:
For foods which require the same cooking temperature both internally and externally,
i.e. roasts, spare ribs, meringue, etc.
Fig. 3.4b
F
Page 16
16
DEFROSTING FROZEN FOODS (ONLY FAN MOTOR)
With the oven burner control knob in position turn the LIGHT & FAN control knob
(fig. 3.2a - 3.2b) on position.
Only the fan and the oven lamp switch on. Defrosting takes place by the fan, without
heating.
Recommended for:
To rapidly defrost frozen foods; 2.2 lbs (1 kg) requires about one hour.
The defrosting times vary according to the quantity and type of foods to be defrosted.
CONVECTION BAKING WITH VENTILATION
(OVEN BURNER WITH FAN MOTOR)
After lighting the oven burner switch on the fan motor by turning the LIGHT & FAN control knob (fig. 3.2a - 3.2b) on position.
On the right small oven the fan motor, when turned on, starts to operate after about 3
minutes from the ignition of the oven burner.
Before introducing the food, preheat the oven to the desired temperature.
For a correct preheating operation, it is advisable to remove the tray from the oven and
introduce it together with the food, when the oven has reached the desired temperature.
Check the cooking time and turn off the oven 5 minutes before the theoretical time to
recuperate the stored heat.
It is possible to cook various different foods at the same time. Fish, cakes and meat
can be cooked together without the smells and flavours mixing.
The only precautions required are the following:
- The cooking temperatures must be as close as possible with a maximum difference
of 70-80 °F (20-25 °C) between the different foods.
- Different dishes must be placed in the oven at different times according to the cooking time required for each one. This type of cooking obviously provides a considerable saving on time and energy.
Recommended for:
For foods of large volume and quantity which require the same internal and external
degree of cooking; for ex: rolled roasts, turkey, legs, cakes, etc.
Page 17
17
IGNITION OF THE BROIL BURNER (LEFT and RIGHT OVEN)
IMPORTANT NOTE: the fan motor cannot be used in combination with the broil
burner. A safety device switches off the fan motor when the gas oven/broil control knob is turned on position.
The broil burner generates the infra-red rays for broiling.
To light the broil burner operate as follow:
1) Open the oven door to the full extent.
WARNING: Risk of explosion!
The oven door must be open during this operation.
2)
Lightly press and turn
the thermostat knob clockwise to the position
(fig. 3.5).
3) Press the knob right down to prime the electric ignition. Keep the knob pressed.
In case of power cut, press the knob and put a lighted match to the right and
left side of the burner (fig. 3.6a - 3.6b).
Never continue this operation for more than 15 seconds. If the burner has still
not ignited, wait for about 1 minute prior to repeating the ignition.
4) Wait about 10/15 seconds after the burner lighting before releasing the knob (time
of priming of the valve).
5) Close the oven door slowly.
If the flame extinguishes for any reason, the safety valve will automatically shut off the
gas supply to the burner.
To r e-light the burner, first turn the oven control knob to position , wait for at
least 1 minute and then repeat the lighting procedure.
Fig. 3.5
Fig. 3.6a
Do always broil with oven door closed.
Attention: the oven door becomes very hot during operation.
Keep children away.
Fig. 3.6b
Page 18
18
BROILING (LEFT OVEN)
Very important: the broil burner must always be used with
the oven door closed.
- Position the shelf on the second level from the top (fig. 3.7).
-Turn on the broil burner, as explained in the preceding paragraphs and let the broil burner preheat for about 5 minutes
with the door closed.
- Place the food to be cooked above the broiling pan.
- Introduce the broiling pan in the oven (fig. 3.8). The broiling
pan should be placed above the shelf and it should be centered with the broil burner (fig. 3.7).
Do not broil without using the broiling pan
.
Important: Use always suitable protective gloves when
inserting/removing the broiling pan, shelves, pans or other
cooking utensils from the oven.
Fig. 3.7
Fig. 3.8
LEFT OVEN
WRONG
CORRECT
Fig. 3.9
Fig. 3.10
Do not use
Broiling level
Oven cooking level
Oven cooking level
1st STEP
2nd STEP
rd
3
STEP
4th STEP
Page 19
19
Fig. 3.11
Fig. 3.12
BROILING (RIGHT OVEN)
Very important: the broil burner must always be used with
the oven door closed.
-Turn on the broil burner, as explained in the preceding paragraphs and let the broil burner preheat for about 5 minutes
with the door closed.
- Place the food to be cooked above the grill-pan grid.
- Introduce the grill-pan (tray + grid) in the oven (fig. 3.12) and
insert it on the second level from the top (fig. 3.11).
Do not broil without using the grill pan
.
Important: Use always suitable protective gloves when
inserting/removing the grill-pan, shelves, pans or other
cooking utensils from the oven.
WRONG
CORRECT
Fig. 3.13
Fig. 3.14
RIGHT SMALL OVEN
REAR
Small edge
FRONT
Big edge
1st STEP Do not use
2nd STEP Broiling level
3rd STEP
4th STEP
Oven cooking level
Oven cooking level
Page 20
20
electronic clock /electronic alarm
Fig. 4.1
ELECTRONIC CLOCK (fig. 4.1)
The electronic alarm is a device which groups the functions of 12 hours clock with illuminated display and 10 hours alarm.
Upon immediate connection of the oven or after a blackout, 12•00 will flash on the display.
To set the hour it is necessary to push the button and then, within 7 seconds, the
or button until you have set the exact hour.
An energy black-out makes the clock go to zero.
ELECTRONIC ALARM
The alarm program consists only of a buzzer which may be set for a maximum period
of 10 hours.
To set the time, push the or button until you obtain the desired time in the display.
From 0•10 to 99•50 you read the time in minutes and seconds (10 seconds step); then
from 1•40 to 10•00 you read the time in hours and minutes (minutes step).
Having finished the setting, the symbol will be lighted and the countdown will start
immediately.
During countdown the timer has priority in the display. To show the time of day press
button. At the end of the time, the symbol will be switched off and an intermittent buzzer, during 7 minutes, will go off; this can be stopped by pressing the button. The signal will be skipped if button is pressed during the last 15 seconds of the
timer.
To stop the alarm countdown in any moment keep the button pressed until you read
0•00 on the display (symbol switches off).
IMPORTANT WARNING: THIS IS ONLY AN ELECTRONIC ALARM. REMEMBER TO
TURN OFF THE OVEN OR BROIL MANUALLY AT THE END OF COUNTDOWN.
SETTING THE FREQUENCY OF THE ALARM SOUND
The selection from 3 possibilities of sound can be made by pressing the button.
SET TIME OF DAY
Push button and then, within 7 seconds, the or button until you have set the
exact hour. This function remains activated 7 seconds after the last pushing of or
button.
Change the hours only: press the button for 4 seconds until the hours display will
flash.
Change the hours only by pushing the or button. The minutes and hidden seconds will not be affected.
Page 21
21
Do not use steam jet cleaners
because the humidity could
infiltrate into the appliance making
it dangerous.
cleaning and maintenance
GENERAL RECOMANDATION
✓ Important: Before any operation of cleaning and maintenance disconnect the
appliance from the electrical supply.
✓ It is advisable to clean when the appliance is cold and especially for cleaning the
enamelled parts.
✓ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the sur-
faces.
✓ Avoid using cleaning products with a chlorine or acidic base.
The oven must always be cleaned after every use, using suitable products and keeping in mind that its operation for 30 minutes on the highest temperature eliminates
most grime reducing it to ashes.
ENAMELLED PARTS
✓ All the enamelled parts must be cleaned with a sponge and soapy water only or other
non-abrasive products.
Dry preferably with a chamois leather.
PAINTED PARTS AND SILK-SCREEN PRINTED SURFACES
✓ Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.
STAINLESS STEEL ELEMENTS
✓ Stainless steel parts must be rinsed with water and dried with a soft and clean
cloth or with a chamois leather.
✓ For difficult dirt, use a specific non-abrasive product available commercially or a
little hot vinegar.
✓ Note: regular use could cause discolouring around the burners, because of
the high flame temperature.
INSIDE OF OVEN
✓ This must be cleaned regularly.
✓ With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy
water or another suitable product.
BURNERS AND GRIDS
✓ These parts can be removed and cleaned with appropriate products.
✓ After cleaning, the burners and their flame distributors must be well dried and cor-
rectly replaced.
✓ It is very important to check that the burner flame distributor and the cap has been
correctly positioned - failure to do so can cause serious problems.
✓
Check that the probe next to each burner is always clean to ensure correct operation of the safety valves.
✓ In appliances with electric ignition keep the electrode clean so that the sparks always
strike.
✓ Note: To avoid damage to the electric ignition do not use it when the burners
are not in place.
Before any operation of maintenance
disconnect the appliance from the
electrical mains supply.
WARNING
VERY IMPORTANT
REPLACING THE OVEN LIGHT
Before any maintenance is started involving electrical parts of the appliance, it must be
disconnected from the power supply.
✓ Let the oven cavity and the broil burner cool down;
✓ Switch off the electrical supply;
✓ Remove the protective cover;
✓ Unscrew and replace the bulb with a new one suitable for high temperatures (300°C-
570°F) having the following specifications: 120V 60 Hz, 15W, E14;
✓ Refit the protective cover.
NOTE: Oven bulb replacement is not covered by your guarantee.
WARNING
Electrical Shock Hazard
Plug into a grounded 3-prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
3-prong polarized
ground-type outlet
ground
prong
Page 22
22
Fig. 5.2
Fig. 5.5
Fig. 5.3
A
B
Fig. 5.4
Fig. 5.1
S
F
C
T
CORRECT REPLACEMENT
OF THE SEMI-RAPID
BURNERS
It is very important to check that the
burner flame spreader “F” and the cap
“C” have been correctly positioned (see
figs. 5.1 and 5.2 ).
Failure to do so can cause serious
problems.
In appliances with electric ignition, check
that the electrode “S” (fig. 5.1) is always
clean to ensure trouble-free sparking.
Check that the probe “T” (fig. 5.1) next to
each burner is always clean to ensure
correct operation of the safety valves.
Both the probe and ignition plug must
be very carefully cleaned.
CORRECT POSITION OF
TRIPLE RING BURNERS
The triple ring burner must be correctly
positioned (see fig. 5.3); the burner rib
must be fitted in their housing as shown
by the arrow.
The burner correctly positioned must not
rotate (fig. 5.4).
Then position the cap A and the ring B
(fig. 5.4 - 5.5).
Page 23
23
CORRECT POSITION OF DUAL BURNER
The DUAL burner must be correctly positioned (see fig. 5.6); the burner rib must be fitted as shown by the arrows.
Position the central small cap in its housing as shown by the arrows (fig. 5.7).
Position the big cap in its housing as shown by the arrows (fig. 5.8).
IMPORTANT: NEVER unscrew the burner screws (fig. 5.9).
Fig. 5.8
Fig. 5.9
Fig. 5.6
Fig. 5.7
GAS VALVES
In the event of operating faults in the gas valves, call the Service Department.
Page 24
24
OVEN ACCESSORIES INSTALLATION AND REMOVAL
– Hang up the wire racks “G” on the oven walls (fig. 5.10).
– Slide in, on the guides, the shelves (fig. 5.11). Do not use the first step from the top.
The rack must be fitted so that the safety catch, which stops it sliding out, faces the
inside of the oven.
– Left oven: position the broiling pan above the oven shelf (see page 18).
– Right small oven: position the grill-pan (tray+grid) on the second level from the top
(see page 19).
–To dismantle, operate in reverse order.
STORAGE COMPARTMENT
The storage compartment is accessible
through the pivoting panel (fig. 5.13).
Fig. 5.13
Fig. 5.12
OVEN DOORS
The internal glass panel can be easily
removed for cleaning by unscrewing the
retaining screws (Fig. 5.12)
WARNING!!
Do not store flammable material in
the oven or in the storage compartment.
Fig. 5.10
Fig. 5.11
G
Do not use this step
Safety
catch
Page 25
25
REMOVING THE OVEN DOORS
Type B
The oven door can easily be removed as follows:
– Open the door to the full extent (fig. 5.17A).
– Attach the retaining rings to the hooks on the left and right hinges (fig. 5.17B).
–
Hold the door as shown in fig. 5.17.
– Gently close the door and withdraw the lower hinge pins from their location (fig.
5.17C).
– Withdraw the upper hinge pins from their location (fig. 5.17D).
– Rest the door on a soft surface.
– To replace the door, repeat the above steps in reverse order.
Fig. 5.17D
Fig. 5.17C
Fig. 5.17B
Fig. 5.17A
Fig. 5.17
REMOVING THE OVEN DOORS
Type A
To facilitate oven cleaning, it is possible to remove the door.
Please follow the instructions carefully:
– Open the door completely.
– Push down the lever “L” and, keeping it in this position, slowly close the door in
order to block the hinge (fig. 5.14).
–Grip the door (as indicated in fig. 5.15) and, while closing it, release the two hinges
as shown in fig. 5.16.
– Rest the door on a soft surface.
DOOR ASSEMBLY
– Grip the door with your hands placed near the hinges and raise the levers “H” with
your forefingers (fig. 5.16)
– Insert the hinges in their position until levers “H” are hooked.
– Open the door completely to obtain the release of levers “L”.
L
Fig. 5.14
Fig. 5.15
H
Fig. 5.16
Page 26
26
DO’S AND DO NOT’S
• Do always use the oven with the door closed.
• Do always broil with the door closed.
• Do read the user instructions carefully before using the range for first time.
• Do allow the oven to heat for about two hours, before using for the first time, in order to
expel any smell from the new oven insulation, without the introduction of food.
• Do clean your oven regularly.
• Do remove spills as soon as they occur.
• Do always use oven gloves when removing food shelves and trays from the oven.
• Do not allow children near the range when in use.
• Do not allow fat or oils to build up in the oven base, or oven accessories.
• Do not place cooking utensils or plates directly onto the oven base.
• Do not place hot enamel parts in water. Leave them to cool first.
• Do not allow vinegar, coffee, milk, saltwater, lemon or tomato juice to remain in contact
with enamel parts (i.e. inside the oven).
• Do not use abrasive cleaners or powders that will scratch the surface of the stainless
steel and the enamel.
• Do not attempt to repair the internal workings of your range.
• Do remove the protective film before the first use.
• Fire risk! Do not store flammable material in the ovens and in the storage compartment.
• Do not use the ovens with the oven doors open.
• Do not use the ovens to warm or heat a room.
FOR YOUR SAFETY
Under no circumstances should any external covers be removed for servicing or
maintenance except by suitably qualified personnel
Page 27
27
Page 28
The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in
the present booklet.
The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture
or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and
safety characteristics of the appliances.
Cod. 1102697 - ß7
Loading...
