DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DEIND64P
TOUCH CONTROL INDUCTION COOKING HOB
distributed by
ELBA Appliances Australia
(a Division of Fisher&Paykel Australia)
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features offered by your appliance.
Please preserve this booklet carefully. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance.
This appliance has been designed and constructed in accordance with the following
codes and specications:
AS/NZS 60335.1
AS/NSZ 60335.2.6
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements
2
Household and similar electrical appliances - Safety General
requirements
Safety Particular requirements for stationary cooking ranges, hobs,
ovens and similar appliances
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown
in this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• It is mandatory to connect the appliance to the grounding system.
This appliance incorporates an earth connection for functional
purposes only.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. Thislmmustberemovedbeforeusingthe
appliance.
3
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
• Do not cover the hob with aluminium foils.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the controls are in the off position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch off the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
5
• If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
• If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
• WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
• WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
• INDUCTION HOBS:
– Metallic objects such as knives, forks, spoons and lids should
not be placed on the hob surface since they can get hot.
– Do not use metallic kitchen utensils (e.g. ladles). It is preferable
to use plastic or wood kitchen utensils.
– Please use pans of recommended size (see minimum pan
diameter recommended). It is not advisable to use pans
smaller than the cooking zone. The pans have to be placed in
the centre of the cooking zone.
– Do not use defective pans or pans with a curved bottom.
– Please use suitable pans marked for induction cooking.
– Please keep your distance from the electromagnetic elds by
standing 5-10 cm from the cooking zones. When possible use
the rear cooking zones.
– Magnetic objects (e.g. credit cards, oppy disks, memory
cards) and electronic instruments (e.g. computers) should not
be placed near the induction hob.
– The heating of magnetic tins is forbidden! Closed tins may
6
explode by exceeding pressure while heating. There is a
burning risk with open tins as well, because the integrated
temperature protection will not work correctly.
– IMPORTANT WARNING: The induction hob complies
with the applicable Standards for domestic cooking
appliances. Therefore it should not interfere with other
electronic units. Persons with cardiac pacemakers or any
other electrical implants must check with their doctor if
they can use an induction cooking system (and check any
possible interferences with the implants).
7

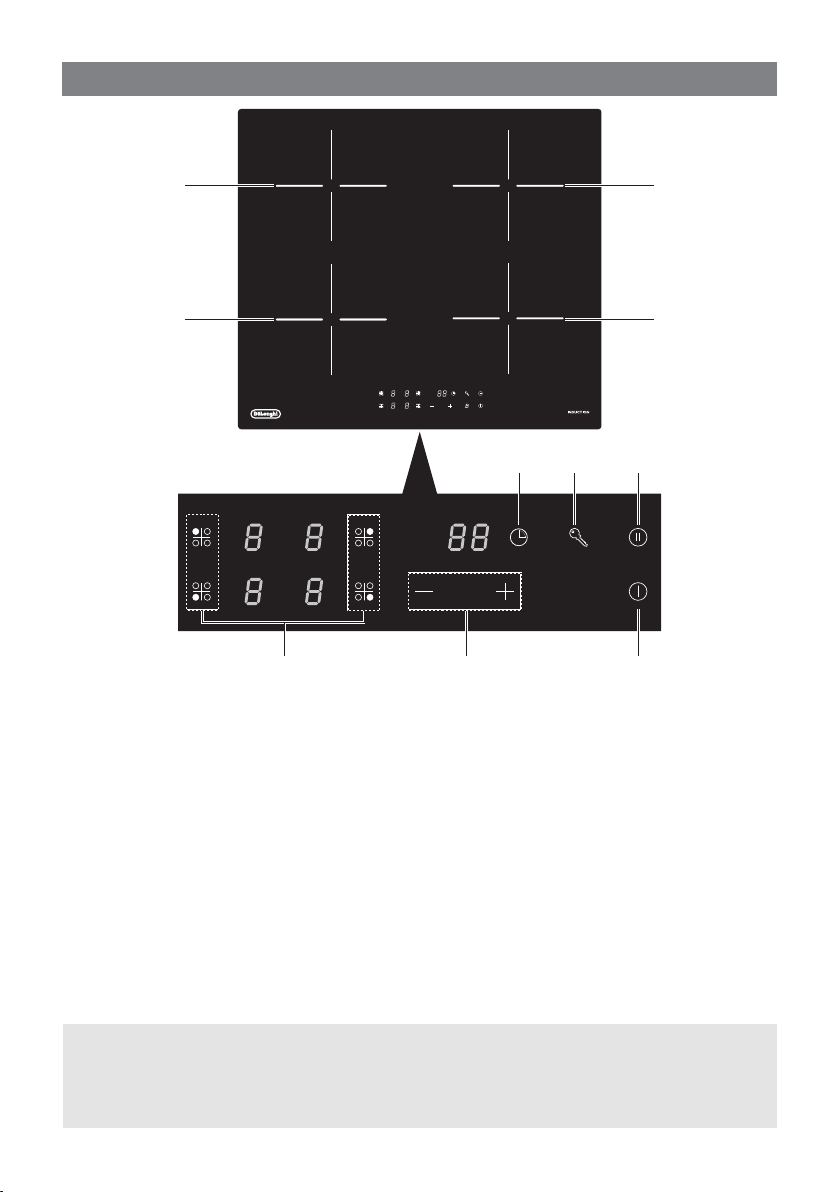

TECHNICAL SPECIFICATIONS
Cooktop model DEIND64P
Cooking zones 4 induction zones
Supply voltage 220-240 V~, 50-60 Hz
Total power (maximum total power of the cooktop). 2200 W
Cooktop dimensions W x D x H (mm) 590 x 520 x 55
Cut-out dimensions W x D (mm) 560 x 490
ENERGY CONSUMPTION OF THE COOKING ZONES
Position Symbol Value Unit
Model identication DEIND64P
Trade mark De’Longhi
Type of hob Electric
built-in
cooktop
Number of cooking zones 4
Heating technology Induction
Diameter of useful surface
area per electric heated
cooking zone, rounded to
the nearest 5mm
Energy consumption per
cooking zone calculated per
kg
Energy consumption for the
hob calculated per kg
Rear left Ø 18,0 cm
Rear right Ø 18,0 cm
Front left Ø 18,0 cm
Front right Ø 18,0 cm
Rear left 193,5 Wh/kg
Rear right 197.2 Wh/kg
Front left 192,3 Wh/kg
Front right 195.6 Wh/kg
194,7 Wh/kg
USE OF THE APPLIANCE, ENERGY SAVING TIPS
HOB, INDUCTION COOKING ZONES AND/OR AREAS
• To save electricity, use lids whenever possible.
• When the pan comes to the boil, turn the heat down to the level desired.
• Please use suitable pans marked for induction cooking. Some cookware available
on the market has an effective ferromagnetic area which is much smaller than the
diameter of the pan itself. Avoid using this cookware because the induction cooktop
may not function properly or may be damaged.
• Always use pans/coffee pots with thick, completely at bottom. Do not use pans/coffee
pots with concave or convex bottom; these could cause overheating of the cooking
zone.
• Important: Do not use pots/coffee pot adaptors.
8
Advice for
the installer
9

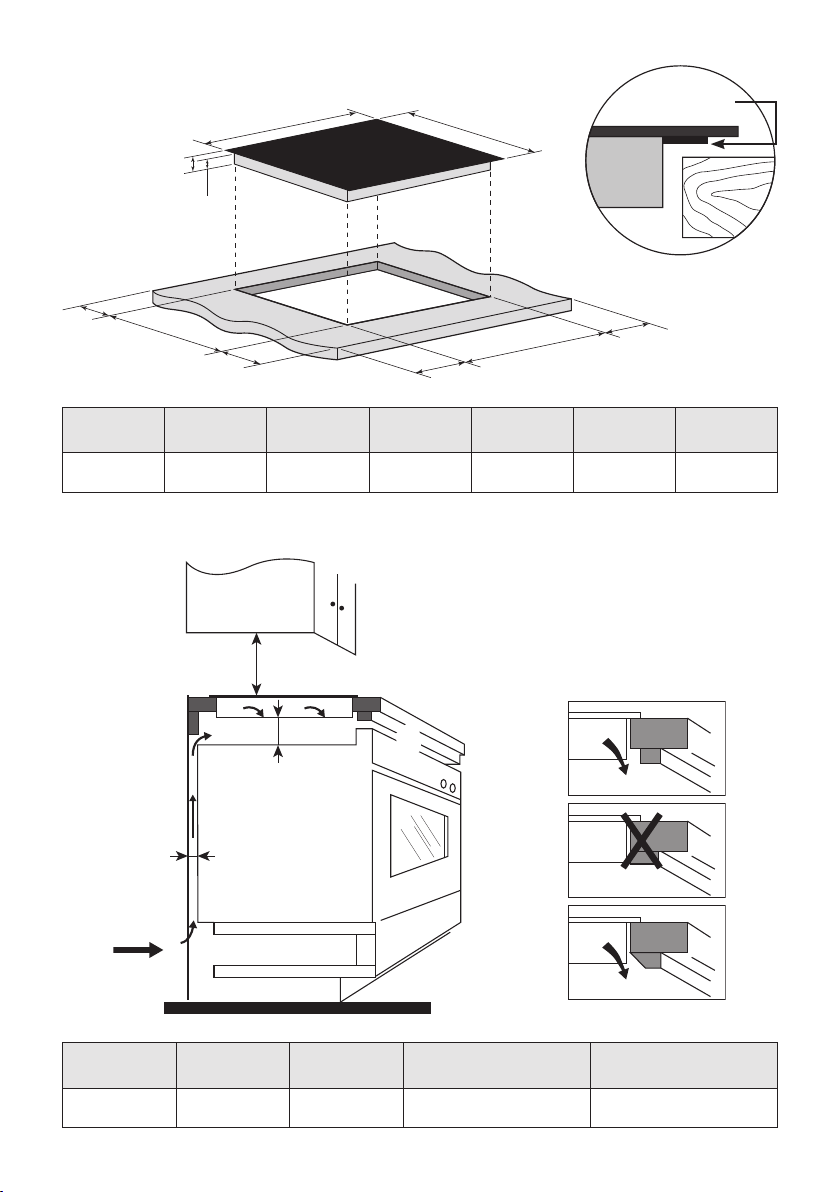

INSTALLATION
1
IMPORTANT :
• This appliance is to be installed only by an authorised person according to the
current local regulations and in observation of the manufacturer’s instructions.
• Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the cooktop from mains power supply before carrying out any
maintenance operations or repairs.
WARNING !
• The appliance must be housed in heat resistant units.
• We would point out that the adhesive which bonds the plastic laminate to the furniture
must withstand temperatures not less than 150 °C to avoid delamination.
• The walls of the units must be capable of resisting temperatures of 75 °C above room
temperature.
This cooktop can be built into a working surface at least 30 mm thick and at least 590 mm
deep.
In order to install the cooktop into the kitchen xture, a hole with the dimensions shown in
gure 1.1 has to be made, keeping in consideration the following:
• A clearance of minimum 50 mm must be left around the hole.
• The cooktop shall not be installed directly above a dishwasher, fridge, freezer, washing
machine or clothes dryer, as the humidity may damage the cooktop electronics.
• If the cooktop is installed above an oven, the oven shall be provided with cooling fan.
The two appliances should be connected to the electrical supply with independent
connections.
• IMPORTANT WARNING! This cooktop requires adequate supply of fresh, cool air
to fully function. The base of the cooktop must have direct unrestricted ventilation
fromtheroomwherethecooktopisinstalled.Followtherequirementsofgure
1.2. Always ensure that the air inlet and outlet openings are not obstructed.
• There must be a distance of at least 760 mm between the cooktop and any wall
cupboard or extractor hood positioned immediately above.
• If the cooktop is installed above a drawer or cupboard space, a thermal protection
barrier has to be tted below the base of the hob (follow the requirements for the
correct ventilation of the appliance).
• The coatings of the walls of the unit or appliances near the cooktop must be heat
resistant.
• Donotinstalltheappliancenearinammablematerials(eg.curtains).
10
Fig. 1.1
L
H
D
W
Gasket
X
B
X
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590 520 55 51 560 490 min. 50
Fig. 1.2
X
A
X
A
E
B
C
D
A (mm) B (mm) C (mm) D E
760 min. 50 min. 20 Air intake Air outlet 5 mm
11
FASTENING THE COOKTOP
Before you install the cooktop, make sure that the work surface is square and level, and no
structural members interfere with space requirements previously indicated.
Each cooktop is supplied with a set of xing springs and screws to fasten it into a working
surface at least 30 mm thick.
The kit includes 4 springs “B” and 4 screws “A” (see gure 1.3).
The gasket to seal the cooktop on the installation unit is already pre-installed around the
lower edge of the hob itself, make sure it is in place and intact.
The sealing gasket is used to ensure a perfect sealing between the appliance and the unit.
Incorrect installation may cause irreparable damage to the appliance.
• Cut the unit.
• Turn the cooktop upside down and rest it gently on a soft surface.
• Install the xing springs “B” by using the screws “A”. Make sure that the springs are
correctly tted as shown in gure 1.3.
• Put the cooktop into the hole cut into the unit and position it correctly.
Fig. 1.3
C
B
D
Glass
B
Fixing spring
Fixing screw
A
Bottom case
D
A B C D
Fixing screw Fixing spring Hole for screw Bottom case
12
Worktop / kitchen cabinet
A
ELECTRICAL CONNECTION
2
IMPORTANT: Installation must be carried out according to the manufacturer’s
instructions. Incorrect installation may cause harm and damage to people,
animals or property, for which the manufacturer accepts no responsibility.
Before carrying out any work on the electrical section of the appliance, it must be
disconnected from the mains.
Connection to a good earth wiring system is absolutely essential. This appliance
incorporates an earth connection for functional purposes only.
The manufacturer accepts no responsibility for any inconvenience caused by
failure to comply with this rule.
If the hob surface is cracked disconnect the appliance from the mains and contact
the After-Sales Service.
If the power supply cable is damaged, it must be replaced only by an authorized
service agent in order to avoid a hazard.
ELECTRICAL REQUIREMENTS
• Connection to the electric power supply must be carried out by a qualied technician
following the appropriate safety regulations and according to the local Regulations in
force.
• The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
• This cooktop has been designed with a power limiter to ensure the cooktop does not
exceed 2200W, allowing it to be plugged into a standard 10amp power socket, and it
is provided with a 10A power plug.
The plug must be inserted into a socket connected to the earth system in compliance
with safety rules. To connect the hob to the mains power supply, do not use adapters,
reducers, or branching devices, as they can cause overheating and re.
• The appliance can be connected directly to the mains placing a two pole switch with
minimum opening between the contacts of 3 mm between the appliance and the mains.
• A suitable isolating switch providing full disconnection from the mains power supply
(under overvoltage category III conditions) shall be incorporated in the permanent
wiring, mounted and positioned to comply with the local wiring rules and regulations.
The isolating switch must be of an approved type and provide a 3 mm air gap contact
separation in all poles (or in all active [phase] conductors if the local wiring rules allow
for this variation of the requirements).
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must
be installed in the active (phase) conductor of the xed wiring.
• The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 50°C above ambient.
• Once the appliance has been installed, the switch or socket must always be in a
accessible position.
• The appliance must be powered individually; any other appliance installed nearby
must be powered separately.
N.B. For connections to the mains power supply, never use adaptors, reductions or
multiplepowerpointsasthesemayoverheatandcatchre.
In the event that installation should require modications to the mains supply wiring system,
it is recommended that a qualied technician be called to carry out substitution.
He should also check that the domestic electrical system is suitable for the power absorbed
by the appliance.
13
ELECTRICAL CONNECTION DIAGRAMS
Power supply
Yellow/Green
Blue
N
V
Power supply
V
V
Power supply
Grey
Brown
L
Black
Yellow/Green
Blue
N2
Grey
N1
Brown
L2
Black
L1
Power cord
Power cord
V = 220-240 V~
1 = 400 V~
V
14
V
V
V1
Power supply
V1
Yellow/Green
Blue
N
Grey
Brown
L2
Black
L1
Yellow/Green
Blue
L2
Grey
Brown
L1
Black
Power cord
Power cord
Fig. 2.1
Advice for
the user
15
FEATURES AND TECHNICAL DATA
1
2
1
Fig. 1.1
6 7
COOKING ZONES
1. Induction cooking zone Ø 180 mm - 2000 W
2. Induction cooking zone Ø 180 mm - 1500 W
3. Induction cooking zone Ø 180 mm - 2000 W
4. Induction cooking zone Ø 180 mm - 1500 W
Note: The nominal powers may vary depending on the size and material of the pots used.
10 9 8
3
4
5
TOUCH-CONTROL DESCRIPTION
5. ON/OFF key
6. Cooking zones selection keys
7. Selection keys for the power level adjustment or for setting the timer/automatic cooking
programming
8. Pause function (“STOP+GO”) selection key
9. Child safety (key lock) selection key
10. Timer/automatic cooking programming selection key
• WARNING: If the hob surface is cracked disconnect the appliance from the
mains and contact the After-Sales Service.
• Metallic objects such as knives, forks, spoons and lids should not be placed
on the hob surface since they can get hot.
• Do not cover the hob with aluminium foils.
16
USE OF INDUCTION HOB
2
The ceramic hob is tted with induction cooking zones.
These zones, shown by painted areas on the ceramic surface, are controlled by a touch
control system.
Fig. 2.1
In the front central area of the hob, the displays of the touch control system indicate:
= Cooking zone Off (not activated)
= Cooking zone On (activated but not operating).
oppure
If all the zones are in zero setting, the touch control system switches off
automatically (touch controls Off) after about 60 seconds.
÷
÷
= Power levels
= Pause function (“STOP+GO”) enabled
= Cooking zone remaining heat indicator
= Pan detection indicator
= Child safety (key lock) enabled
= Timer/automatic cooking programming display
17
INDUCTION COOKING SYSTEM
When your induction hob is switched on and a cooking zone has been selected, the
electronic circuits produce induced currents that instantaneously heat the bottom of the
pan which then transfers this heat to the food.
Cooking takes place with hardly any energy loss between the induction hob and the food.
Your induction hob operates only if a correct pan with the right features is placed on a
cooking zone. Please refer to “COOKWARE/COFFEE POT FOR INDUCTION COOKING”.
If the pan detection symbol
induction hob will not operate. After about 1 minute without detecting any pan, the cooking
zone switches Off automatically.
If the induction cooktop emits a humming noise when a zone is used on a high power level,
this phenomenon is normal as it is caused by the induction cooking tecnology.
The noise should weaken or disappear completely when the power level is decreased.
appears on the display, your pan is not suitable and your
Magnetic eld
Induced currents
18
Pan for
induction
cooking
Glass-ceramic
surface
Induction
coil
Fig. 2.2
USING THE TOUCH CONTROLS
• The controls respond to touch, so you don’t
need to apply any pressure.
• Use the ball of your nger, not its tip.
• You will hear a beep each time a touch is
registered.
• Make sure the controls are always clean, dry,
and that there is no object (e.g. a utensil or
a cloth) covering them. Even a thin lm of water may make the controls difcult to
operate.
REMAINING HEAT INDICATORS
When the temperature of a cooking zone is still hot, the relevant remaining heat indicator
lights up on the display to alert you of the hot surface.
Avoid touching the hob surface over the cooking area. Please pay special attention to
children.
When the
cooking zone as indicated in the chapter POWER IGNITION AND ADJUSTMENT OF A
COOKING ZONE.
is lit on the display, it is still possible to start cooking again; just operate the
OVER-TEMPERATURE PROTECTION
The induction cooktop is tted with a temperature sensor to monitor the temperature inside
the appliance. When an excessive temperature is detected, the cooktop switches Off
automatically.
Inside the cooktop there is a cooling fan motor that switches On to prevent the electronics
from overheating; it may continue to operate even after the cooktop has been turned Off.
Do not disconnect the cooktop from the electrical supply if the cooling fan is operating, the
appliance could be damaged.
PROTECTION AGAINST CONTINUOUS ACCIDENTAL ACTIVATION OF
THE TOUCH CONTROL KEYS (CAUSED BY OVERFLOWING LIQUIDS OR
OBJECTS LEFT ON THE CONTROL PANEL AREA)
The hob switches off automatically within 10 seconds:
• if an object (e.g. fork, spoon, ...) is placed on the control keys;
• in case of overow of liquids on the control keys.
Dry the spilled liquids or remove the object before using the cooktop again.
19
COOKWARE/COFFEE POT FOR INDUCTION COOKING
The induction cooking system OPERATES ONLY if using correct cookware/coffee pot
suitable for induction cooking (normally identied by an induction symbol on the bottom
of the cookware/coffee pot). The use of not suitable cookware may cause damage to the
appliance.
The bottom of the pan/coffee pot has to be ferromagnetic to generate the electromagnetic
eld necessary for the heating process (meaning a magnet has to stick to the bottom of the
pan/coffee pot).
Pans/coffee pots made from the following materials are not suitable:
• glass, wood, porcelain, ceramic, stoneware;
• pure stainless steel, aluminium or copper without magnetic bottom.
To check if a pan/coffee pot is suitable or not:
• Test the bottom of the pan/coffee pot with a magnet: if the magnet sticks, the pan is
suitable.
• If a magnet is not available pour a small amount of water inside the pan/coffee pot and
place the pan on a cooking zone. Switch on the cooking zone: if the symbol
detection) appears on the cooking zone display (instead of the power level), the pan/
coffee pot is not suitable.
Important: Do not use pots/coffee pot adaptors; this could cause an overheating and
possible damage to the appliance.
Important note: the cooking zones will not operate if the pan/coffee pot diameter is too
small. (
the cooking zones follow the indications given in the following table:
pan detection symbol will appear on the cooking zone display). To correctly use
(pan
Induction cooking zone
Cooking zone Ø 180 mm 120 mm
IMPORTANT: Some cookware available on the market is not of good quality or has an
effective ferromagnetic area which is much smaller than the diameter of the pan itself.
Avoid using this cookware because the induction cooktop may not function properly or may
be damaged.
Pay attention: The pan/coffee pot shall always be centred over the middle of the cooking
zone.
Pay attention: If using a grill pan do not select the maximum level for a too long time, the
pan may become deformed due to the excessive heat. Always use pans with thick bottom.
It is possible to use oversized pans/coffee pots but its bottom shall not touch the other
cooking zone.
Always use pans/coffee pots with thick, completely at bottom.
Do not use pans/coffee pots with concave, convex or rough bottom; these could cause
overheating of the cooking zone.
Note: Some types of pans/coffee pots could cause noise when used on an induction
cooking zone. The noise does not mean any failure on the appliance and does not inuence
the cooking operation.
Always lift pans off the induction hob – do not slide, or they may scratch the glass.
20
Minimum pan diameter recommended
(referred to the bottom of the pan/coffee pot)
HOW TO TURN THE TOUCH CONTROLS ON AND OFF
Switching ON
• Press the key
• After power on, to indicate that the induction hob is in
standby mode:
– the buzzer beeps once;
– the displays of the cooking zones show ;
– the display of the timer/automatic cooking programming
shows
Note:
• If the child safety (key lock) is active, a cooking zone can
be used only after having deactivated this protection (see
chapter CHILD SAFETY (KEYLOCK)).
• Auto switch-Off: if a cooking zone is not turned On within
60 seconds, the cooktop will automatically switch off.
Switching OFF
• The cooktop can be switched Off at any time by pressing the key
If any cooking zones are turned On, they will be turned Off.
(g. 2.3).
.
Fig. 2.3
(g. 2.3).
POWER IGNITION AND ADJUSTMENT OF A COOKING
ZONE
To turn On a cooking zone the cooktop must be switched On
(see section HOW TO TURN THE TOUCH CONTROLS ON AND
OFF).
1. Select a cooking zone by touching the relevant key of the
cooking zone to be used (g. 2.4).
2. Select the desired power level by using the keys
from 1 (minimum level) to 9 (maximum level) - g. 2.5.
Note: If the desired power level is not selected within 1
minute, the cooktop will automatically switch off. You will
need to start again from step 1.
During operation the cooking
zone display shows the selected
power level. The power level
can be modied at any time
(start from step 1).
3. To switch off a cooking zone,
select the relevant key (g. 2.4)
and set the power level to
using the key
keys
time).
and at the same
(or touch the
0 by
or ,
Fig. 2.4
Fig. 2.5
21
OPERATION TIME LIMIT OF
COOKING ZONES
Each cooking zone is automatically
switched Off after a maximum preset
time if no operation is performed.
The maximum preset time limit
depends on the set power level, as
illustrated in this schedule.
Each operation on the cooking hob by
using the keys, will reset the maximum
operation time at its initial value..
Power level of
cooking zones
Operation
time limit
8 hours
8 hours
8 hours
4 hours
Auto switch Off: if a pot is removed
without turning off the relative cooking
zone, the zone itself will switch off
automatically after a maximum of two
minutes.
EXAMPLES OF COOKING POWER SETTING
0 or -
1 to 2
2 to 3
3 to 4
4 to 5
6 to 7
Melting
Reheating
Simmering
Defrosting
Steam Vegetables, sh, meat
Water
Medium cooking
Simmering
Cooking zone not operating
4 hours
4 hours
2 hours
2 hours
2 hours
Sauces, butter, chocolate, gelatine
Dishes prepared beforehand
Rice, pudding, sugar syrup
Dried vegetables, sh, frozen products
Steamed potatoes, soups, pasta,
fresh vegetables
Meat, lever, eggs, sausages
Goulash, roulade, tripe
22
7 to 8
9
Cooking Potatoes, fritters, wafers
Frying, roasting
Boiling water
Steaks, omelettes, fried dishes
Water
PROGRAM FOR AUTOMATIC SWITCHING OFF OF ONE OR MORE COOKING
ZONES
This function permits to set a timer from “ 01 ” to “ 99 ” minutes for automatic turning Off
the cooking zone/s.
With the touch control switched ON, proceed as follows (see also Fig. 2.6):
1. Select the cooking zone by touching the relevant key of the cooking zone to be
programmed.
2. Within 5 seconds, touch the timer/automatic cooking programming selection key. The
timer display will show “
set power level of the zone being programmed, will light up.
3. Set the cooking time within 5 seconds, using the
the value.
Touching the
Touching and holding the
minutes.
If the setting time exceeds “
minute.
If the selected time is “
the zone stays on.
or key once, the timer will decrease or increase by 1 minute.
30 ” ashing and a red dot, close to the display showing the
or keys to increase or decrease
or key, the timer will decrease or increase by 10
99 ” minutes, the timer will automatically return to “ 00 ”
00 ”, the timer will switch off automatically after 5 seconds while
Fig. 2.6
2
1
Now the program for automatic switching off is complete and the countdown will start a few
seconds after the last selection.
To program another cooking zone, repeat as described above.
Note: The red dot, close to the display showing the set power level of the cooking zone
closest to the end of the program, is blinking.
In the case of one programmed zone only, the red dot is always blinking.
The time can be changed at any time following the same procedure here above indicated
(selecting previously the cooking zone).
During operation, to check the remaining time of the set cooking program, follow the
procedure described as above (steps 1 and 2): the timer display will show the remaining
minutes,
At the end of the countdown the cooking zone will switch off automatically and the timer
display will show “
-- ”
.
33
or
23
Note: The program for automatic switch off can be cancelled at any time by selecting
the relative cooking zone and then touching the timer/automatic cooking programming
selection key (the timer display will show “
switching off manually the relative cooking zone, the program for automatic switch off will
be cancelled.
IMPORTANT: At the end of the program for the automatic switching off of a cooking zone:
• If there are other cooking zones in operation with automatic switching off programs
set, the zones will continue to operate and will switch off automatically at the end of
the program;
• if there are other cooking zones in manual operation (without any automatic switch off
program set), remember to switch off the zones manually.
00 ” ashing and then “ -- ”). Alternatively, by
TIMER
This function permits to set a simple timer (countdown) with acoustic signal (beep), from
01 ” to “ 99 ” minutes.
“
IMPORTANT: This function does NOT swith off automatically the cooking zones.
Do not use this function if there are no cooking zones in operation, the cooktop will
automatically switch off within 60 seconds if a cooking zone is not turned on.
With the touch control switched ON, proceed as follows:
-- ”
and an
30 ” ashing.
acoustic signal (beep)
1. Touch the timer selection key. The timer display will show “
2. Set the time within 5 seconds, using the
value.
Touching the
Touching and holding the
minutes.
If the setting time exceeds “
minute.
If the selected time is “
Now the timer function is complete and the countdown will start a few seconds after the
last selection.
The time can be changed at any time following the same procedure here above indicated.
At the end of the countdown the timer display will show “
will sound for 30 seconds.
Note: The timer function can be cancelled at any time by touching the timer selection key
(the timer display will show “
IMPORTANT: At the end of the timer function, remember to switch Off the zones
manually.
24
or key once, the timer will decrease or increase by 1 minute.
or key, the timer will decrease or increase by 10
99 ” minutes, the timer will automatically return to “ 00 ”
00 ”, the timer will switch off automatically after 5 seconds.
00 ” ashing and then “ -- ”).
or keys to increase or decrease the
PAUSE FUNCTION (“STOP+GO”)
This function can be used to pause a cooking process which has already been set, either
in manual mode or using the automatic switching off feature.
When it is selected, any cooking is stopped immediately and switches into standby mode;
the control area remains active only for the keys
(ON/OFF).
This function is particularly useful if you need to stop cooking temporarily, e.g. to answer
the telephone.
• To enable it, simply touch the key
• As soon as it has been enabled, the cooking zones displays show “
• To disable the pause function, touch the key
Note: The pause function may last for max 2 hours. If it is not terminated within this time,
the cooktop will switch Off automatically.
.
(pause function “STOP+GO”) and
I I ”.
again.
CHILD SAFETY (KEY LOCK)
This function locks the touch-control keys against unwanted activation (e.g. unintentional
switching on of the cooking zones by children).
When the controls are locked, all the keys except the ON/OFF are disabled.
It is therefore possible, in case of emergence, to switch Off the cooktop at any time
by simply touching the ON/OFF key.
Toreturntonormaluseofthecooktop,rstdeactivatethechildsafety(keylock).
To activate the child safety (key lock):
1. Touch the key
2. The timer display shows
3. The safety has been activated.
To deactivate the child safety (key lock):
1. Touch and hold the key
2. The safety has been deactivated.
.
(locked).
until disappears from the timer display.
POWER MANAGEMENT WHEN USING THE COOKTOP
When using one or more cooking zones, if the total power set on the zones reaches the
total power limit (2.2 kW), it will not be possible to increase the power level of any zone (for
the total power specications of each single zone refer to the chapter 1 FEATURES AND
TECHNICAL DATA).
In this case, if you’ll try to increase the power level of a cooking zone by using the key ,
the buzzer (beep) will sound 3 times and the timer display will show to indicate that the
power limit has been reached. It will therefore be necessary to reduce the power of the other
zones before increasing the power of the desired zone.
25
MALFUNCTIONING AND ERROR CODES
If the induction cooktop (or a cooking zone) turns Off unexpectedly, a buzzer (beep) sounds
and an error code is shown on the timer display (typically alternating with one or two digits),
this indicates a technical fault.
1. Switch Off the cooktop and disconnect it from the mains.
2. Reconnect the cooktop and turn it On.
3. Wait for a few minutes and if the problem does not appear the cooktop can be used.
4. If the problem does not disappear repeat step from 1 to 3.
5. If the problem continues, write down the error code (letters and numbers), disconnect
the cooktop from the mains and contact your Authorised Service Centre.
If an anomaly occurs, the induction cooktop automatically switches to self-protection mode
and an error code is shown on the timer display as per table below:
Error code Possible causes What to do
F3 / F4
F9 / FA
Induction coil temperature sensor
failure.
IGBT temperature sensor failure.
Please contact the Authorised Service
Centre.
Please contact the Authorised Service
Centre.
E1 / E2
E3
E5
The above errors list comes from the evaluation of the common anomalies.
In case of other faults not listed, always refer to the Authorised Service Centre.
IMPORTANT: To avoid risks and damages NEVER disassemble or try to repair the
appliance yourself, always refer to the Authorised Service Centre.
Abnormal supply voltage Please check if the power supply is correct.
High temperature of the induction
coil temperature sensor
High temperature of the IGBT
temperature sensor
Please contact the Authorised Service
Centre.
Please switch On the cooktop only after it
has cooled down completely.
IMPORTANT: DO NOT disconnect the
cooktop from the electrical supply to allow
the cooling fan motor to operate.
DISPLAY/S OFF OR NOT CORRECTLY OPERATING
If a display or the displays are only partially lit or not lit.
1. Switch Off the cooktop and disconnect it from the mains.
2. Reconnect the cooktop and turn it On.
3. Wait for a few minutes and if the problem does not appear the cooktop can be used.
4. If the problem does not disappear repeat step from 1 to 3.
5. If the problem continues, disconnect the cooktop from the mains and contact your
Authorised Service Centre.
26
3
CLEANING AND MAINTENANCE
CLEANING THE CERAMIC HOB
Before you begin cleaning, disconnect the cooktop from mains power supply.
• Remove spillages and other types of incrustations.
• Dust or food particles can be removed with a damp cloth.
• If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive
or scouring powders can damage the glass surface of the hob.
• All traces of the cleaner must be removed with a damp cloth.
• Dust, fat and liquids from food that has boiled over must be removed as soon as
possible. If they are allowed to harden they become increasingly difcult to remove.
This is especially true in the case of sugar/syrup mixtures which could permanently pit
the surface of the hob if left to burn on it.
• If any of these products has melted on the ceramic surface, you should remove it
immediately (when the surface is still hot) by using a scraper (not supplied with the
appliance) to avoid any permanent damage to the surface of the hob.
• Do not put articles on the hob which can melt: i.e plastic, aluminium foil, sugar, sugar
syrup mixtures etc.
• Avoid using a knife or other sharp utensil as these may damage the ceramic surface.
• Do not use steel wool or an abrasive sponge which could scratch the surface
permanently.
Do not scratch the cooktop with
cutting or sharp objects.
Do not use the glass ceramic surface
as a work surface.
Do not use a steam cleaner because
the moisture can get into the appliance
thus make it unsafe.
Fig. 3.1
27
4
SERVICE AND MAINTENANCE
SERVICING THE APPLIANCE
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised ELBA APPLIANCES Service Agent shared services with Fisher and Paykel
Australia PTY LTD (ELBA Appliances AUS, a division of F&P AUS PTY LTD).
Servicing shall be carried out only by authorized personnel.
Theapplianceshallnotbemodied.
TROUBLESHOOTING
If you acquire a problem with your hob, check the following points before calling an engineer.
1. The power is switched on.
2. The controls are switched on.
3. Both the fuse and the mains fuse are intact.
4. Check the chapters MALFUNCTIONING AND ERROR CODES and DISPLAY/S OFF
OR NOT CORRECTLY OPERATING.
Should you still require assistance please contact our Customer Service Centre for your
nearest Authorised Elba Appl. AUS Service Agent.
28
293031
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
SERVICE AND MAINTENANCE
modifications for their construction or for commercial needs.
If the ignition spark fails to ignite or does not light the gas, check the following items before
calling our Customer Service Centre to obtain the nearest Authorised Service Agent:
■ Burner is reassembled and located correctly.
■ Spark electrode and white ceramic are clean and dry.
■ 240 VAC power supply is connected.
Contact the local gas utility or our Customer Service Centre to obtain the nearest Authorized
Service Agent.
■ You can smell gas when all burners are turned on.
■ The burners do not remain alight at the minimum marked setting.
■ The burner ame is yellow or emits an unusual odour.
Note that a bi-annual inspection of the appliance by an authorized service agent or your
locate gas utility will ensure many years of trouble free operation of your appliance.
www.delonghicookingappliances.com.au
SERVICING THE APPLIANCE
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised:ELBA APPLIANCES Service Agent shared services with Fisher and Paykel
Australia PTY LTD (ELBA Appliances AUS, a division of F&P AUS PTY LTD).
Servicing shall be carried out only by authorized personnel.
Theapplianceshallnotbemodied.
Cod.1106293-ß0
Loading...
