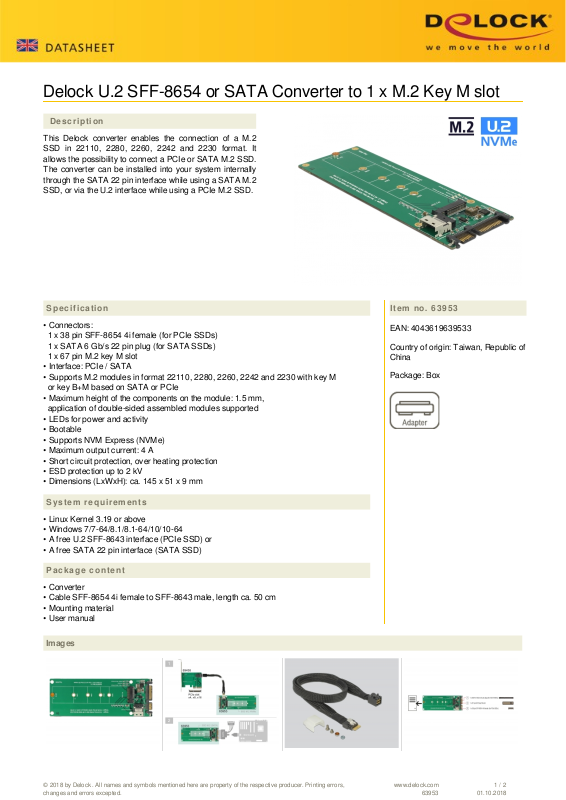

Delock U.2 SFF-8654 or SATA Converter to 1 x M.2 Key M slot
Description
This Delock converter enables the connection of a M.2
SSD in 22110, 2280, 2260, 2242 and 2230 format. It
allows the possibility to connect a PCIe or SATA M.2 SSD.
The converter can be installed into your system internally
through the SATA 22 pin interface while using a SATA M.2
SSD, or via the U.2 interface while using a PCIe M.2 SSD.
Specification
• Connectors:
1 x 38 pin SFF-8654 4i female (for PCIe SSDs)
1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs)
1 x 67 pin M.2 key M slot
• Interface: PCIe / SATA
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on SATA or PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 51 x 9 mm
Item no. 63953
EAN: 4043619639533
Country of origin: Taiwan, Republic of
China
Package: Box
System requirements
• Linux Kernel 3.19 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8643 interface (PCIe SSD) or
• A free SATA 22 pin interface (SATA SSD)
Package content
• Converter
• Cable SFF-8654 4i female to SFF-8643 male, length ca. 50 cm
• Mounting material
• User manual
Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
63953
1 / 2
01.10.2018

General
Function: NVM Express (NVMe)
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.19 or above
Slot: PCIe
SATA
Supported module: 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe
Maximum height of the components on
the module:
Interface
Connector 1: 1 x 38 pin SFF-8654 4i female
Connector 2: 1 x SATA 6 Gb/s 22 pin plug
connector 3: 1 x 67 pin M.2 key M slot
Physical characteristics
Length: 145 mm
Width: 51 mm
Height: 9 mm
1.5 mm application of double-sided assembled modules supported
