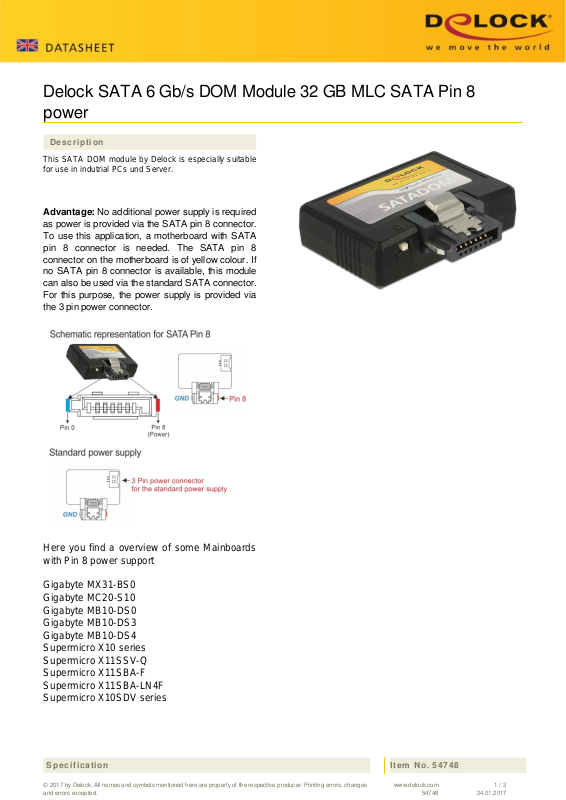

Delock SATA 6 Gb/s DOM Module 32 GB MLC SATA Pin 8 power
Description
This SATA DOM module by Delock is especially suitable for use in indutrial PCs und Server.
Advantage: No additional power supply is required as power is provided via the SATA pin 8 connector. To use this application, a motherboard with SATA pin 8 connector is needed. The SATA pin 8 connector on the motherboard is of yellow colour. If no SATA pin 8 connector is available, this module can also be used via the standard SATA connector. For this purpose, the power supply is provided via the 3 pin power connector.
Here you find a overview of some Mainboards with Pin 8 power support
Gigabyte MX31-BS0 Gigabyte MC20-S10 Gigabyte MB10-DS0 Gigabyte MB10-DS3 Gigabyte MB10-DS4 Supermicro X10 series Supermicro X11SSV-Q Supermicro X11SBA-F Supermicro X11SBA-LN4F Supermicro X10SDV series
Specification
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
Item No. 54748
www.delock.com
54748
1 / 3
24.01.2017
Page 2
• Capacity: 32 GB
• Interface: SATA 6 Gb/s
• Supports SATA pin 8 power
• Chip: Toshiba
• Flash type: MLC
• Maximum performance: 270 MB/s read, 45 MB/s write
• Maximum write cycles: 3000
• Maximum power consumption: 2.39 W (5 V x 478 mA)
• Write protect: yes
• ATA security: yes
• S.M.A.R.T.: yes
• Thermal sensor: yes
• Dimensions (width x length x height): 37.17 x 31.50 x 10.20 mm
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 ms
• MTBF: >3 million hours
• Operation temperature: 0 °C ~ 70 °C
• Storage temperature: -55 °C ~ 95 °C
System requirements
• A free SATA 8 pin or SATA 7 pin connector
• For SATA 7 pin: power supply with a free 4 pin power connection
Package content
• SATA DOM module
• Power cable
EAN: 4043619547487
Country of origin: Taiwan, Republic Of China
Package: Antistatic cover
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
54748
2 / 3
24.01.2017
Page 3
Technical characteristics
Operation temperature: 0° C - 70°C Chipset: Toshiba Storage temperature: -55°C - 95°C Read: 270 MB/s Maximum power consumption: 2.39 W Maximum write cycles: 3000 MTBF: 3 million hours Interface: SATA 6.0 Gb/s Shock: 1500 G @ 0.5 ms Write: 45 MB/s Write protect: yes Capacity: 32 GB Thermal sensor: yes Vibration: 20 G @ 7 ~ 2000 Hz Password protection: Yes
Physical characteristics
Length: 31.50 mm Width: 37.17 mm Height: 10.20 mm
