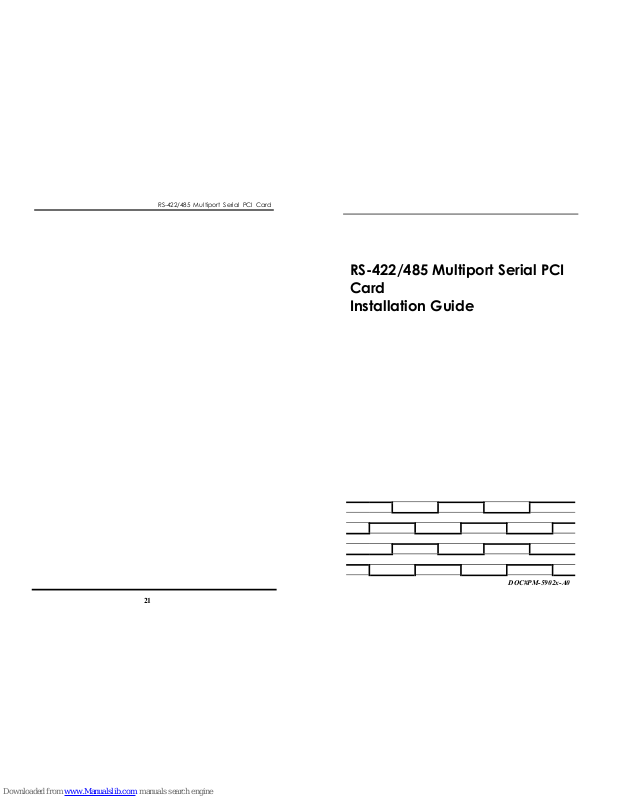

DeLOCK RS-422/485 Installation Manual
RS-422/485 Multiport Serial PCI Card
21
RS-422/485 Multiport Serial PCI
Card
Installation Guide
DOC#PM-5902x-A0
RS-422/485 Multiport Serial PCI Card
i
Contents
1. Introduction........................................................ 1
2. Package Check List .......................................... 2
3. Board Layouts and Connectors .......................3
3.1 2S with DB9 Male Connectors ...........................................3
3.1.1 JP5: UART Input Clock Speed Selector ....................3
3.1.2 JP1: RS-422/485 Mode Selector .................................4
3.1.3 S1,S2 Connector Pin Assignments .............................5
3.1.4 S1,S2 Terminator Settings ............................................5
3.2 2S with Terminal Block Connectors..................................6
3.2.1 JP5: UART Input Clock Speed Selector ....................7
3.2.2 JP1: RS-422/485 Mode Selector .................................7
3.2.3 S1,S2 Terminal Block Connectors Pin Assignments 8
3.2.4 S1,S2 Terminator Settings ............................................8
4. Installing the RS-422/485 PCI Card ..................10
5. Installing Drivers................................................. 11
5.1 Windows 98, ME, 2000, XP, 2003........................................11
5.2 Windows NT 4.0 ...................................................................11
6. Set RS-485 in 2-wire (Half Duplex) Mode......... 12
6.1 Windows 2000, XP...............................................................13
RS-422/485 Multi port Serial P CI Card
20
RS-422/485 Multiport Serial PCI Card
19
RS-422/485 Multi port Serial P CI Card
ii
6.2 Windows 98, ME ..................................................................14
7. Set High Baud Rate............................................ 15
7.1 Windows 2000, XP...............................................................15
7.2 Windows 98/ME ..................................................................16
8. Application Wiring............................................. 17
8.1 RS-485 (Transmitter is controlled automatically by ATTATM
Hardware) ...................................................................................17
8.2 RS-422 (Transmitter buffer is always enabled) ................18
RS-422/485 Multiport Serial PCI Card
1
1. Introduction
Congratulation on your purchasing this high performance
RS-422/485 multiport serial PCI card. The card is high speed PCI
bus based and plug-and-play compliant. It works at 2-wire
(with Auto Transceiver Turn Around feature, ATTA
TM
) and 4-wire
configuration. Its UARTs are fully 16C950 (128-byte FIFO)
featured and compatible with most of the serial devices
available from the market.
Features:
Fully PCI Bus Specifications 2.2 and Power Management 1.0
compliant
128-byte on-chip FIFO and arbitrary trigger levels and
interrupts, and automatic hardware/software flow control
Up to 921.6 Kbps baud rate, over 700 Kbps data throughput
5,6,7,8,9-bits data framing
Precise RS-485 ATTA
TM
(Auto Transceiver Turn Around) feature
to disable the line driver by hardware
Supports echo mode to help software determining
unexpected bus collisions
Universal PCI compatible with 3.3/5V PCI and PCI-X buses
Optional 15KV ESD surge and optical isolation protection
models are available
Supports Win98/Me, NT, Windows 2000 and XP,2003, and
Linux
RS-422/485 Multi port Serial P CI Card
18
8.2 RS-422 (Transmitter buffer is always
enabled)
Please note that the RS-422/485 PCI Card supports 4-wire RS-422
mode. In this mode, the data was sent and received
independently. So you need to connect them with the
cross-over, twisted pair cable.
For the model with DB9 connectors, it also provides two
handshaking signials RTS+/RTS- and CTS+/CTS- to do the
hardware flow control. In this case, the wiring will be as follows:
RS-422/485 PCI Card
TXD+
TXD-
RXD+(485)
RXD-(485)
TX+
TX-
RX+
RX-
4-wire twisted pair cable
RS-422/485 PCI Card
RS-422 Device
TXD+
TXDRXD+
RXDRTS+
RTSCTS+
CTS-
RS-422 Device
TXD+
TXDRXD+
RXDRTS+
RTSCTS+
CTS-
