Delock Multiband GNSS LTE-MIMO, WLAN MIMO IEEE 802.11
ac/a/h/b/g/n Antenna 5x RP-SMA omnidirectional roof mount
outdoor
Description
This high quality multi band antenna is composed of five
physically separate transmitting and receiving units. The
GNSS patch antenna receives signals from the Global
Navigation Satellite Systems GPS and GLONASS. Two
PCB antennas in MIMO mode working in all popular LTE
bands. Two other PCB antennas in MIMO mode cover off
the WLAN area in the dual band completely. Furthermore,
this multi band antenna is capable of GSM, UMTS,
Bluetooth, Z-Wave and ZigBee signals to be
transmitted. The multi band antenna delivers and transmits
signals in all circumstances reliably, quickly and
accurately.
Specification
• Connectors: 5 x RP-SMA plug
• GNSS GPS GLONASS:
Frequency range:
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Gain: 4 dBi
VSWR: < 2
Impedance: 50 Ohm
Polarisation: RHCP
• LNA GNSS:
Frequency range:
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
Gain: 30 dBi
Voltage: 3.3 - 5.0 V
Current: 17 mA
VSWR: < 2
Impedance: 50 Ohm
Polarisation: linear
Cable type: RG-174
Cable attenuation:
2.4 GHz: 2.06 dB per meter
6.0 GHz: 3.45 dB per meter
• LTE MIMO:
Frequency range:
698 - 960 MHz
1.710 - 2.170 GHz
2.500 - 2.600 GHz
LTE Band: 1-10/ 12-20/ 23/ 25-30/ 33-41/ 44
GSM / UMTS/ ZigBee/ Z-Wave
Gain: 3.4 - 4 dBi
Operating power: 5 W
VSWR: < 3
Impedance: 50 Ohm
Polarisation: linear
Cable type: CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
Item No. 88967
EAN: 4043619889679
Country of origin: Taiwan, Republic of
China
Package: Poly bag
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
88967
1 / 5
13.01.2017
Page 2
• WLAN MIMO dualband
Frequency range:
2.400 - 2.483 GHz
5.150 - 5.850 GHz
Bluetooth/ ZigBee
Gain: 4 dBi
Operating power: 1 W
VSWR: < 3
Impedance: 50 Ohm
Polarisation: linear
Cable type: CFD200
Cable attenuation:
2.4 GHz: 0.55 dB per meter
5.7 GHz: 0.86 dB per meter
• Operating temperature: -40°C - 80°C
• Housing: PC-540 PC/ABS Alloy
• Cable length: 3 m
• Cable colour: black
• Protection class: IP67
• Dimensions (LxWxH): ca. 160 x 106 x 102 mm
System requirements
• Device with free RP-SMA connectors
Package content
• Multiband Antenna
• Nut
• 3 x RF adapter RP-SMA jack > SMA plug
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
88967
2 / 5
13.01.2017
Page 3

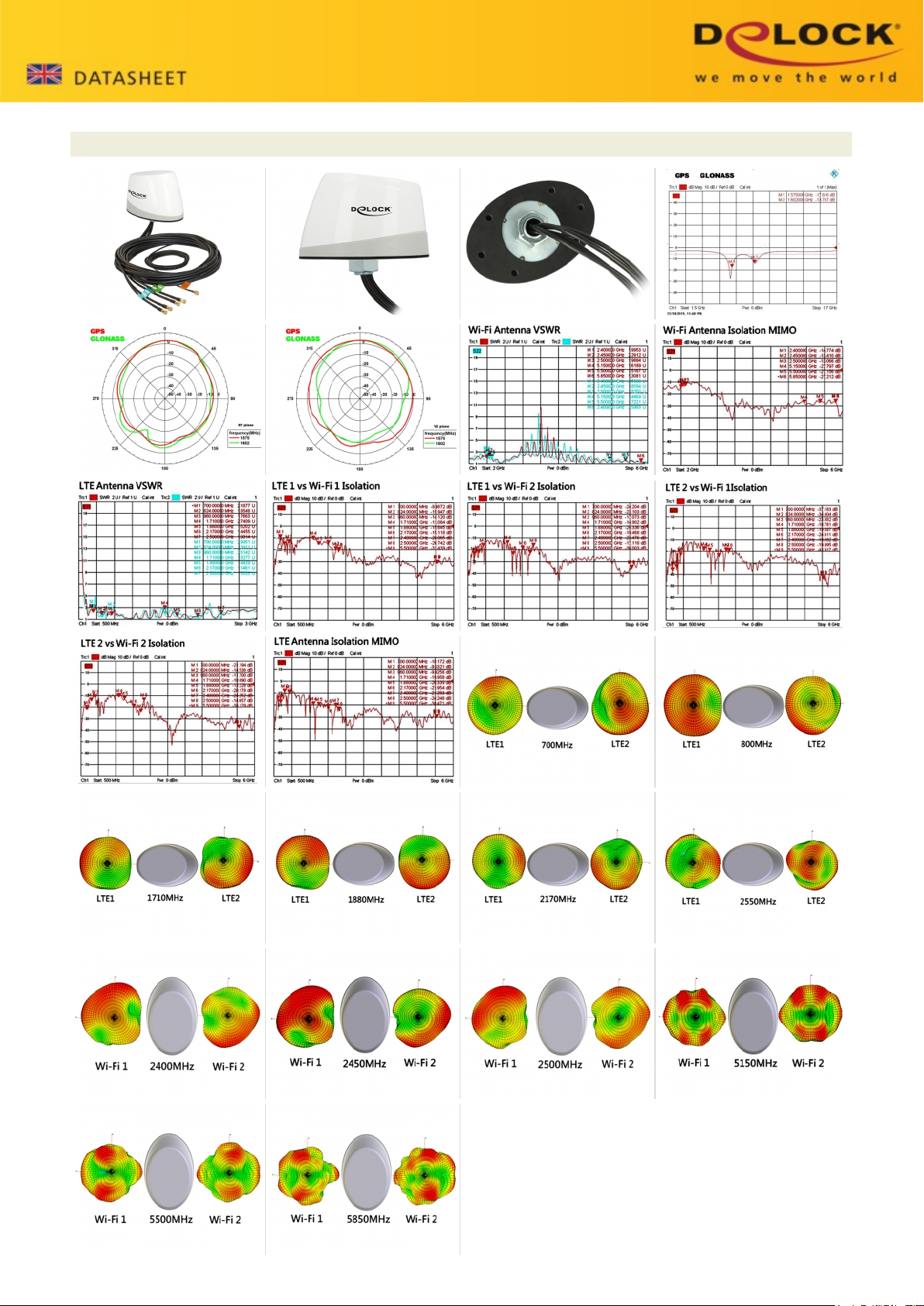

Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
88967
3 / 5
13.01.2017
Page 4
General
Mounting type: design mounting
Protection category: IP67
Suitable for indoor: yes
Suitable for outdoor: yes
Interface
connector: 1 x RP-SMA plug GNSS
2 x RP-SMA plug LTE
2 x RP-SMA plug WLAN
Technical characteristics
Operating voltage: LNA GNSS
3 - 5 V
Frequency range: GNSS GPS GLONASS
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
LNA GNSS
GPS: L1, 1.5754200 GHz
GLONASS: L1, 1.6025625 - 1.6155000 GHz
LTE MIMO
698 - 960 MHz
1.71 - 2.17 GHz
2.500 - 2.700 GHz
WLAN MIMO Dualband
2.400 - 2.483 GHz
5.150 - 5.850 GHz
Gain: GNSS GPS GLONASS
4 dBi
LNA GNSS
30 dBi
LTE MIMO
3.4 - 4 dBi
WLAN MIMO Dualband
4 dBi
Impedance: 50 Ω
Polarisation: GNSS GPS GLONASS
RHCP
LTE MIMO
linear vertical
WLAN MIMO Dualband
linear vertical
Power handling: LTE MIMO
5 W
WLAN MIMO Dualband
1 W
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
88967
4 / 5
13.01.2017
Page 5
Current consumption: LNA GNSS
10 - 16 mA
VSWR: GNSS GPS GLONASS
2.0
LNA GNSS
2.0
LTE MIMO
3.0
WLAN MIMO Dualband
3.0
Physical characteristics
Housing colour: white
Housing material: PC-540 PC/ABS Alloy
Weight: 1.6 kg
Cable category: coaxial cable
Cable type: GNSS GPS GLONASS
RG-174
LTE MIMO
CFD200
WLAN MIMO Dualband
CFD200
Cable attenuation: 0.61 dB @ 1.8 GHz per meter CFD200
0.50 dB @ 200 MHz per meter RG-174
Cable colour: black
Length: 16.0 cm
Width: 10.6 cm
Height: 10.2 cm
