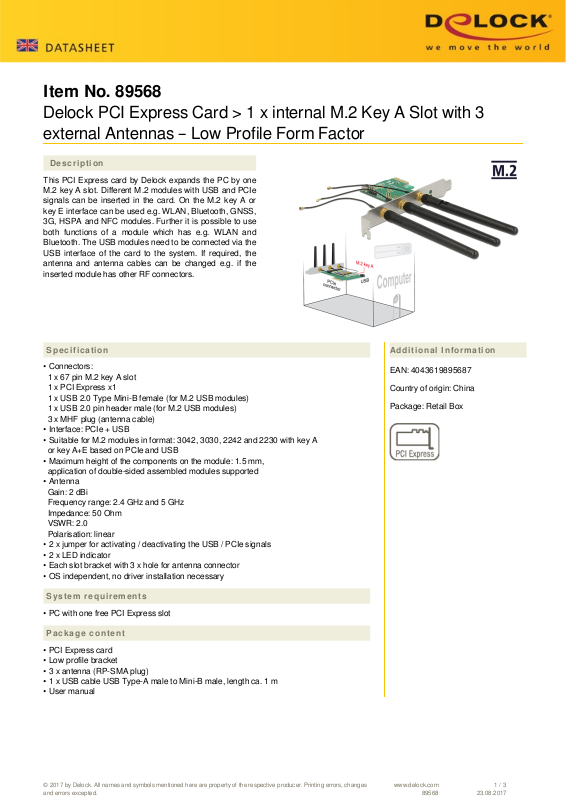

Item No. 89568
Delock PCI Express Card > 1 x internal M.2 Key A Slot with 3
external Antennas – Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC by one
M.2 key A slot. Different M.2 modules with USB and PCIe
signals can be inserted in the card. On the M.2 key A or
key E interface can be used e.g. WLAN, Bluetooth, GNSS,
3G, HSPA and NFC modules. Further it is possible to use
both functions of a module which has e.g. WLAN and
Bluetooth. The USB modules need to be connected via the
USB interface of the card to the system. If required, the
antenna and antenna cables can be changed e.g. if the
inserted module has other RF connectors.
Specification
• Connectors:
1 x 67 pin M.2 key A slot
1 x PCI Express x1
1 x USB 2.0 Type Mini-B female (for M.2 USB modules)
1 x USB 2.0 pin header male (for M.2 USB modules)
3 x MHF plug (antenna cable)
• Interface: PCIe + USB
• Suitable for M.2 modules in format: 3042, 3030, 2242 and 2230 with key A
or key A+E based on PCIe and USB
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Antenna
Gain: 2 dBi
Frequency range: 2.4 GHz and 5 GHz
Impedance: 50 Ohm
VSWR: 2.0
Polarisation: linear
• 2 x jumper for activating / deactivating the USB / PCIe signals
• 2 x LED indicator
• Each slot bracket with 3 x hole for antenna connector
• OS independent, no driver installation necessary
Additional Information
EAN: 4043619895687
Country of origin: China
Package: Retail Box
System requirements
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• 3 x antenna (RP-SMA plug)
• 1 x USB cable USB Type-A male to Mini-B male, length ca. 1 m
• User manual
