Delock Docking Station for MacBook Dual HDMI 4K / PD / Hub
Description
This docking station by Delock can be connected to a
MacBook with two adjacent Thunderbolt™ 3 ports, e.g. the
MacBook Pro. Two monitors can be operated
simultaneously at the HDMI output ports. Three built-in
USB Type-A ports allows the use of peripherals.
With a USB-C™ power supply, laptops such as the
MacBook can be charged during operation.
Advanced monitor setting
The Delock docking station occupies two ports on the
MacBook simultaneous; therefor it is possible to display
different content on both HDMI ports at the same time.
Further it allows multiple monitors to be combined into one
large display. Thereby the docking station supports a
maximum resolution of up to 4K per monitor.
USB Power Delivery (USB PD 3.0) support up to 60
watt
The docking station has a USB Type-C™ Power Delivery
port to connect the power supply of the laptop or tablet to
charge it. The docking station can also be used without a
power supply.
Small sturdy helper
Due to its small dimensions and its sturdy housing,
this Delock docking station is particularly suitable for
travelling. It can simply be packed into the bag together
with the laptop and used as needed.
Specification
• Connectors:
2 x USB Type-C™ male
2 x HDMI-A female
3 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
1 x USB Type-C™ female (power supply)
• Resolution:
Single + Dual:
HDMI port 1 up to 3840 x 2160 @ 60 Hz
HDMI port 2 up to 3840 x 2160 @ 30 Hz
(depending on the system and the connected hardware)
• Transmission of audio and video signals
• USB Power Delivery (PD) 3.0
• Input power: 1 x USB Type-C™ female max. 60 W
• Metal housing
• Colour: grey
• Dimensions (LxWxH): ca. 116.0 x 28.0 x 9.5 mm
System requirements
• MacBook Pro with two adjacent Thunderbolt™ 3 ports
Package content
• Docking station
• User manual
Item no. 87753
EAN: 4043619877539
Country of origin: China
Package: • Retail Box
Page 2

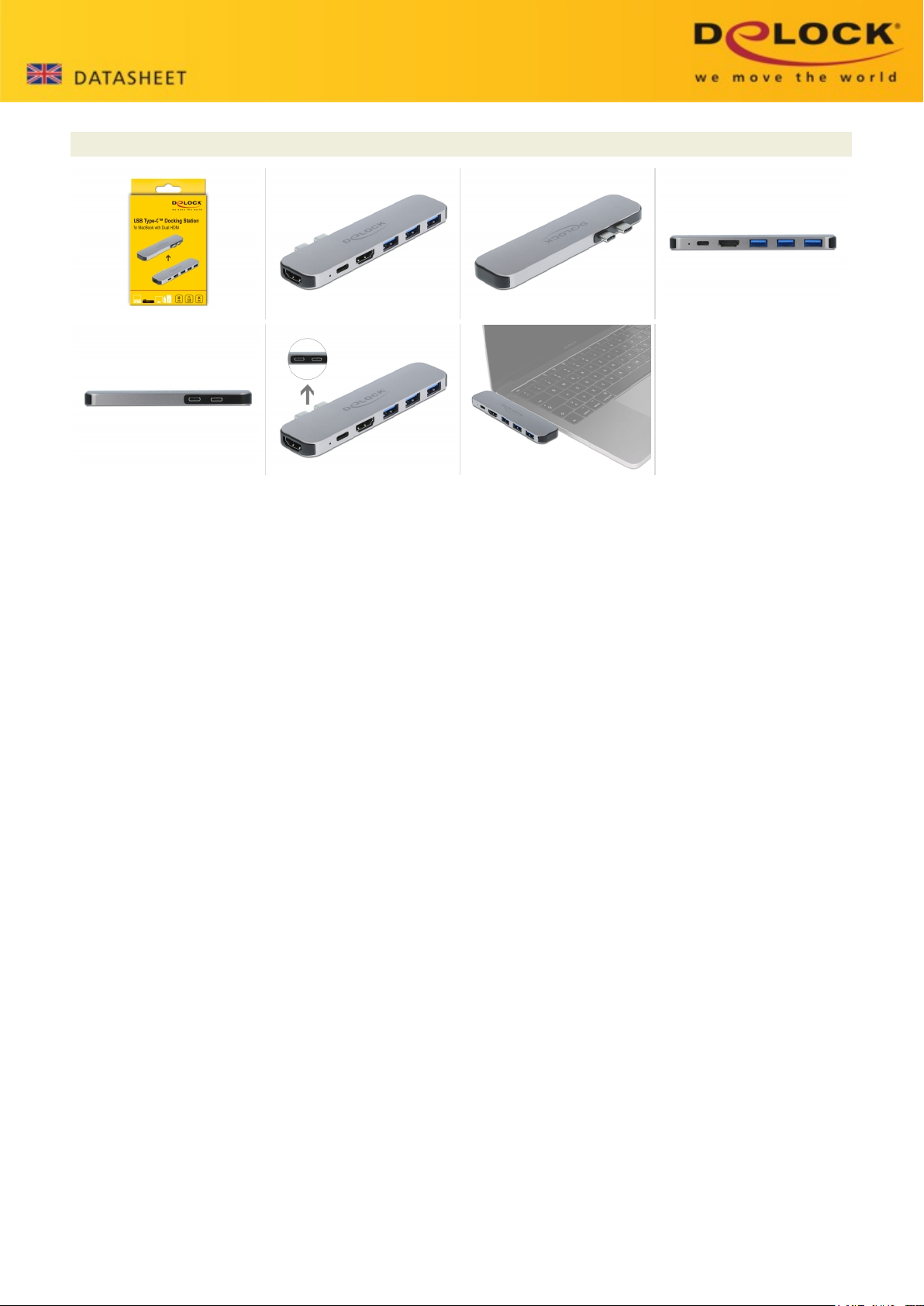

Images
Page 3
Interface
Connector 1: 2 x USB Type-C™ male
Connector 2: 2 x HDMI-A female
connector 3: 3 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
connector 4: 1 x USB Type-C™ female (power supply)
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
3840 x 2160 @ 30 Hz
Voltage: USB Power Delivery (PD) 2.0
Physical characteristics
Housing material: metal
Colour: grey
