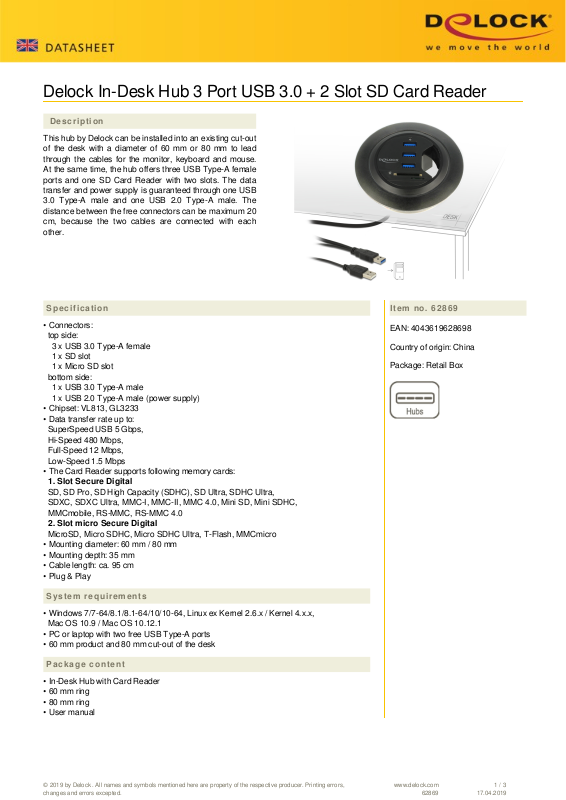

Delock In-Desk Hub 3 Port USB 3.0 + 2 Slot SD Card Reader
Description
This hub by Delock can be installed into an existing cut-out
of the desk with a diameter of 60 mm or 80 mm to lead
through the cables for the monitor, keyboard and mouse.
At the same time, the hub offers three USB Type-A female
ports and one SD Card Reader with two slots. The data
transfer and power supply is guaranteed through one USB
3.0 Type-A male and one USB 2.0 Type-A male. The
distance between the free connectors can be maximum 20
cm, because the two cables are connected with each
other.
Specification
• Connectors:
top side:
3 x USB 3.0 Type-A female
1 x SD slot
1 x Micro SD slot
bottom side:
1 x USB 3.0 Type-A male
1 x USB 2.0 Type-A male (power supply)
• Chipset: VL813, GL3233
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD Pro, SD High Capacity (SDHC), SD Ultra, SDHC Ultra,
SDXC, SDXC Ultra, MMC-I, MMC-II, MMC 4.0, Mini SD, Mini SDHC,
MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot micro Secure Digital
MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• Mounting diameter: 60 mm / 80 mm
• Mounting depth: 35 mm
• Cable length: ca. 95 cm
• Plug & Play
Item no. 62869
EAN: 4043619628698
Country of origin: China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.x / Kernel 4.x.x,
Mac OS 10.9 / Mac OS 10.12.1
• PC or laptop with two free USB Type-A ports
• 60 mm product and 80 mm cut-out of the desk
Package content
• In-Desk Hub with Card Reader
• 60 mm ring
• 80 mm ring
• User manual
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
62869
1 / 3
17.04.2019
Page 2

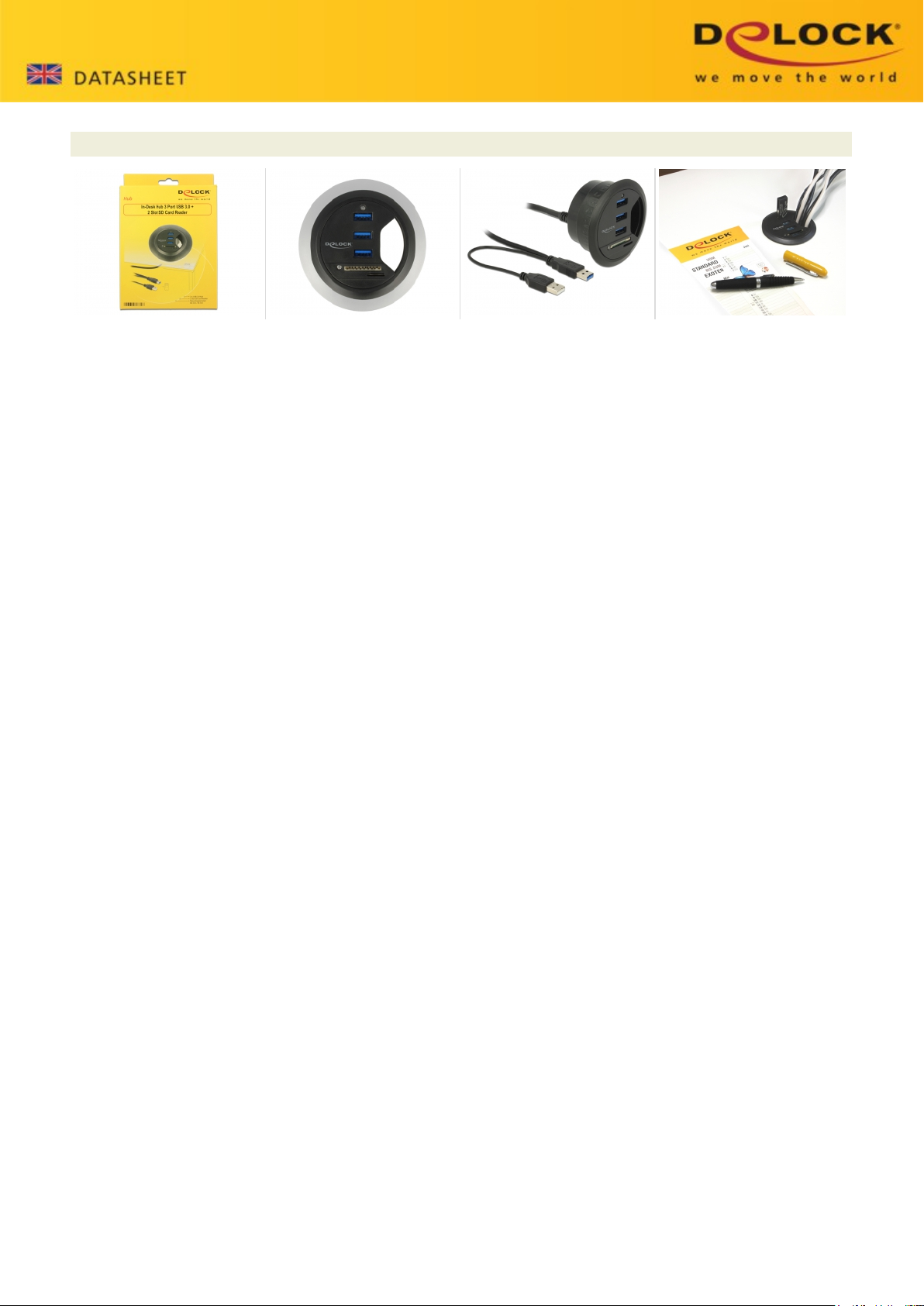

Images
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
62869
2 / 3
17.04.2019
Page 3
General
Function: Plug & Play
Supported operating system: Mac OS 10.9 or above
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 2.6 or above
Supported memory card: Micro SD
Micro SDHC
Micro SDXC
SD
SDHC
SDXC
T-Flash
MMCmicro
miniSD
MMC
RS-MMC
MMC-I
MMC-II
MMC 4.0
MMCmobile
RS-MMC 4.0
Interface
Top side: 1 x Micro SD slot
1 x SD slot
3 x USB 3.0 Type-A female
Bottom side: 1 x USB 3.0 Type-A male
1 x USB 2.0 Type-A male (power supply)
Technical characteristics
Chipset: VL813
GL3233
Data transfer rate: 5 Gbps
Physical characteristics
Cable length: 95 cm
Depth: 35 mm
Diameter: 80 mm
60 mm
