Delock In-Desk Hub 4 Port USB 3.0
Description
This Delock Hub can be installed into an existing cut-out of
your desk and enables you to lead out the cables for
monitor, keyboard and mouse. This is a practical and
space saving solution which enables you to connect your
USB devices easily.
Specification
• Connectors:
top side:
4 x USB 3.0 Type-A female
bottom side:
1 x USB 3.0 Type-A male
1 x 5 V DC jack
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Mounting diameter: 60 mm
• Mounting depth: 30 mm
• Cable length:
USB 3.0 ca. 115 cm
DC ca. 12 cm
• Plug & Play
Item no. 61989
EAN: 4043619619894
Country of origin: China
Package: Retail Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64, Mac Lion 10.7.4,
Linux Kernel 3.x
• PC or laptop with a free USB Type-A port
• 60 mm cut-out in the desk
Package content
• In-Desk Hub
• External power supply
• User manual
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
61989
1 / 2
17.04.2019
Page 2

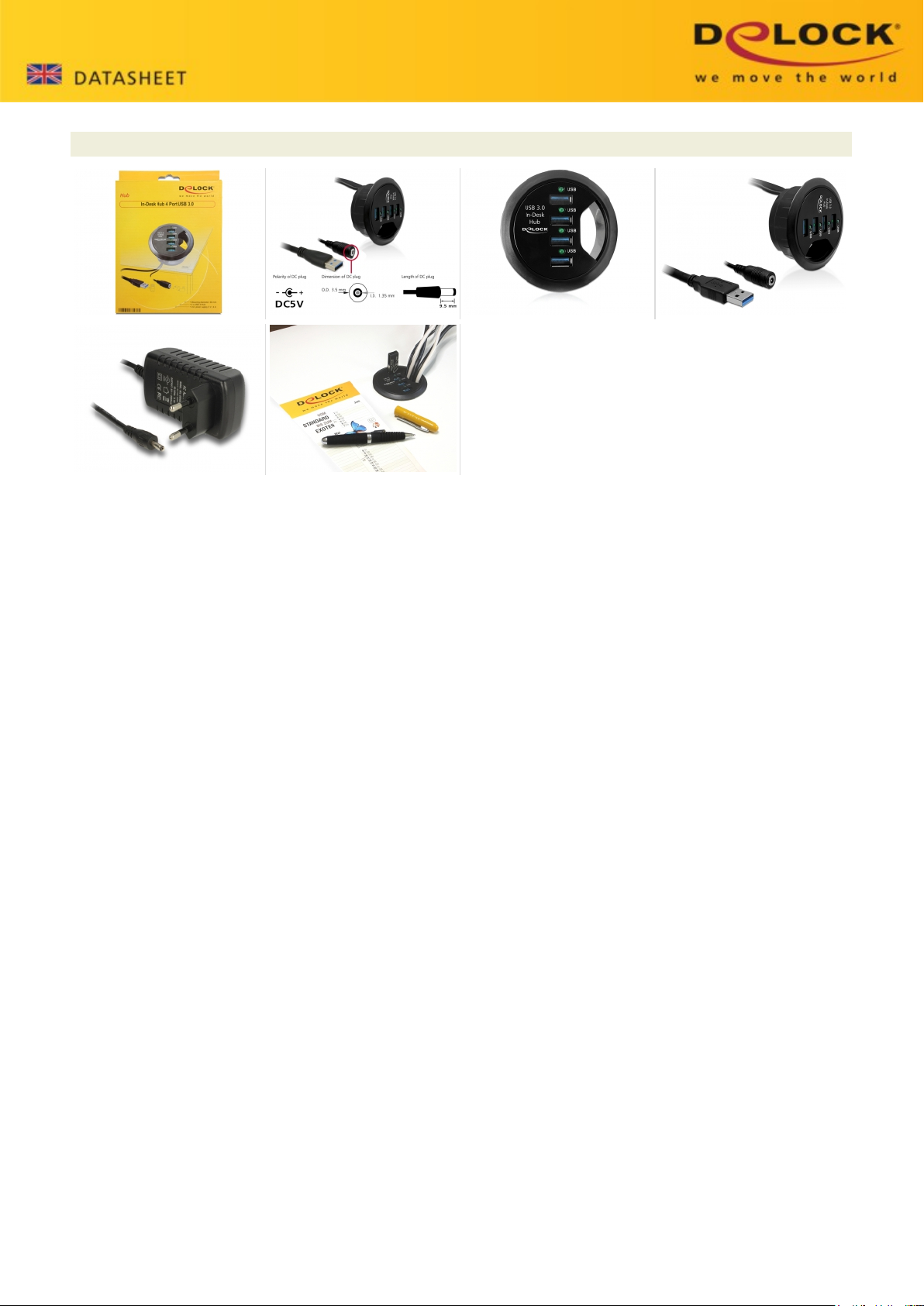

Images
