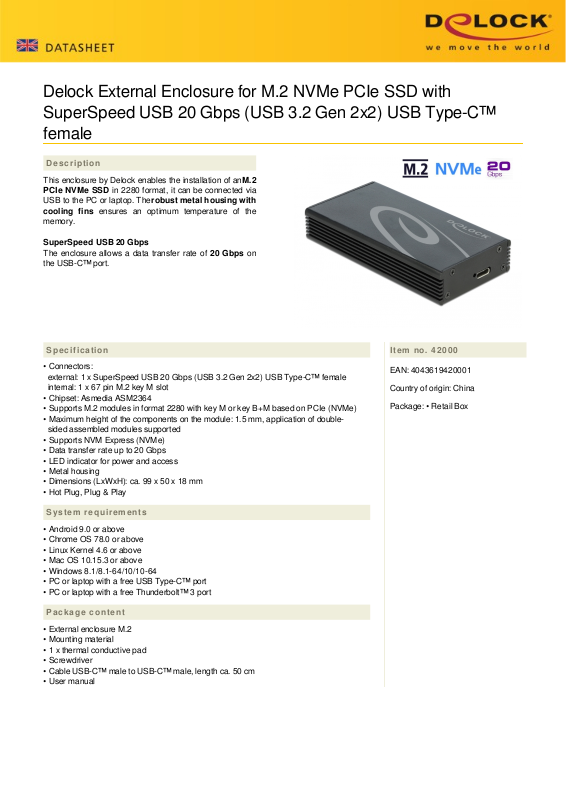

Delock External Enclosure DATASHEET

Delock External Enclosure for M.2 NVMe PCIe SSD with
SuperSpeed USB 20 Gbps (USB 3.2 Gen 2x2) USB Type-C™
female

Description

This enclosure by Delock enables the installation of anM.2
PCIe NVMe SSD in 2280 format, it can be connected via
USB to the PC or laptop. The robust metal housing with
cooling fins ensures an optimum temperature of the

memory.

SuperSpeed USB 20 Gbps

The enclosure allows a data transfer rate of 20 Gbps on
the USB-C™ port.

Specification

• Connectors:
external: 1 x SuperSpeed USB 20 Gbps (USB 3.2 Gen 2x2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot

• Chipset: Asmedia ASM2364

• Supports M.2 modules in format 2280 with key M or key B+M based on PCIe (NVMe)

• Maximum height of the components on the module: 1.5 mm, application of double­ sided assembled modules supported

• Supports NVM Express (NVMe)

• Data transfer rate up to 20 Gbps

• LED indicator for power and access

• Metal housing

• Dimensions (LxWxH): ca. 99 x 50 x 18 mm

• Hot Plug, Plug & Play

Item no. 42000

EAN: 4043619420001

Country of origin: China

Package: • Retail Box

System requirements

• Android 9.0 or above

• Chrome OS 78.0 or above

• Linux Kernel 4.6 or above

• Mac OS 10.15.3 or above

• Windows 8.1/8.1-64/10/10-64

• PC or laptop with a free USB Type-C™ port

• PC or laptop with a free Thunderbolt™ 3 port

Package content

• External enclosure M.2

• Mounting material

• 1 x thermal conductive pad

• Screwdriver

• Cable USB-C™ male to USB-C™ male, length ca. 50 cm

• User manual
