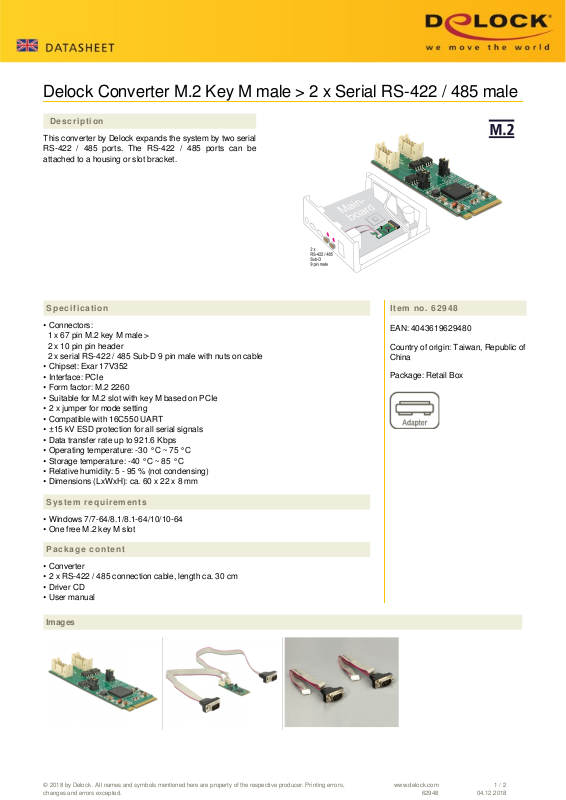

Delock Converter M.2 Key M male > 2 x Serial RS-422 / 485 male

Description

This converter by Delock expands the system by two serial RS-422 / 485 ports. The RS-422 / 485 ports can be attached to a housing or slot bracket.

Specification

• Connectors: 1 x 67 pin M.2 key M male > 2 x 10 pin pin header 2 x serial RS-422 / 485 Sub-D 9 pin male with nuts on cable

• Chipset: Exar 17V352

• Interface: PCIe

• Form factor: M.2 2260

• Suitable for M.2 slot with key M based on PCIe

• 2 x jumper for mode setting

• Compatible with 16C550 UART

• ±15 kV ESD protection for all serial signals

• Data transfer rate up to 921.6 Kbps

• Operating temperature: -30 °C ~ 75 °C

• Storage temperature: -40 °C ~ 85 °C

• Relative humidity: 5 - 95 % (not condensing)

• Dimensions (LxWxH): ca. 60 x 22 x 8 mm

Item no. 62948

EAN: 4043619629480

Country of origin: Taiwan, Republic of China

Package: Retail Box

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64

• One free M.2 key M slot

Package content

• Converter

• 2 x RS-422 / 485 connection cable, length ca. 30 cm

• Driver CD

• User manual

Images

www.delock.com

62948

1 / 2

04.12.2018

General

Form factor: M.2 2260 Supported operating system: Windows 7 32-bit

Windows 7 64-bit Windows 8.1 32-bit Windows 8.1 64-bit Windows 10 32-bit

Windows 10 64-bit Slot: PCIe

Interface

Connector 1: 1 x 67 pin M.2 Key M male Connector 2: 2 x 10 pin pin header connector 3: 2 x serial RS-422 / 485 Sub-D 9 pin male with nuts on cable

Technical characteristics

Chipset: Exar 17V352 Data transfer rate: up to 921.6 Kbps Storage temperature: -40 °C ~ 85 °C Operating temperature: -30 °C ~ 75 °C Humidity: 5 ~ 95 %

Physical characteristics

Length: 60 mm Width: 22 mm Height: 8 mm
