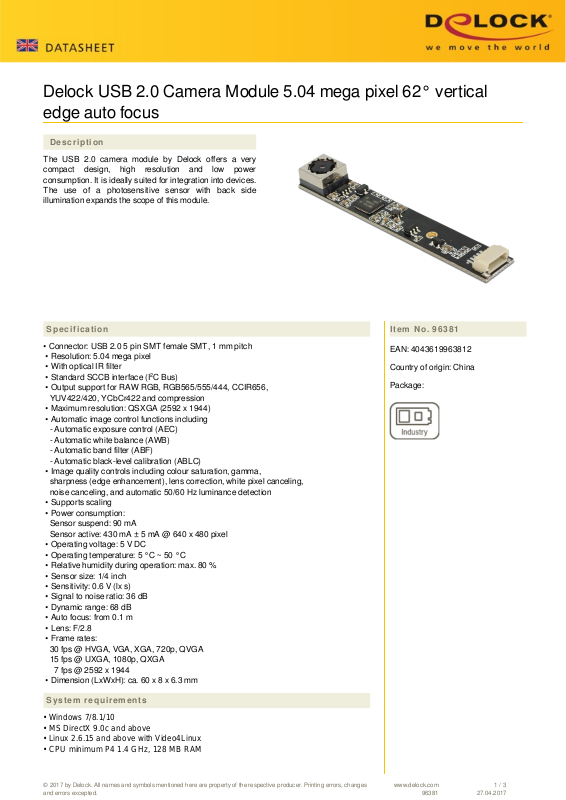

Delock USB 2.0 Camera Module 5.04 mega pixel 62° vertical
edge auto focus
Description
The USB 2.0 camera module by Delock offers a very
compact design, high resolution and low power
consumption. It is ideally suited for integration into devices.
The use of a photosensitive sensor with back side
illumination expands the scope of this module.
Specification
• Connector: USB 2.0 5 pin SMT female SMT, 1 mm pitch
• Resolution: 5.04 mega pixel
• With optical IR filter
• Standard SCCB interface (I²C Bus)
• Output support for RAW RGB, RGB565/555/444, CCIR656,
YUV422/420, YCbCr422 and compression
• Maximum resolution: QSXGA (2592 x 1944)
• Automatic image control functions including
- Automatic exposure control (AEC)
- Automatic white balance (AWB)
- Automatic band filter (ABF)
- Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma,
sharpness (edge enhancement), lens correction, white pixel canceling,
noise canceling, and automatic 50/60 Hz luminance detection
• Supports scaling
• Power consumption:
Sensor suspend: 90 mA
Sensor active: 430 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Relative humidity during operation: max. 80 %
• Sensor size: 1/4 inch
• Sensitivity: 0.6 V (lx s)
• Signal to noise ratio: 36 dB
• Dynamic range: 68 dB
• Auto focus: from 0.1 m
• Lens: F/2.8
• Frame rates:
30 fps @ HVGA, VGA, XGA, 720p, QVGA
15 fps @ UXGA, 1080p, QXGA
7 fps @ 2592 x 1944
• Dimension (LxWxH): ca. 60 x 8 x 6.3 mm
Item No. 96381
EAN: 4043619963812
Country of origin: China
Package:
System requirements
• Windows 7/8.1/10
• MS DirectX 9.0c and above
• Linux 2.6.15 and above with Video4Linux
• CPU minimum P4 1.4 GHz, 128 MB RAM
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
96381
1 / 3
27.04.2017
Page 2
Package content
• Camera module
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
96381
2 / 3
27.04.2017
Page 3
General
Supported operating system: Linux Kernel 2.6 and higher
Windows Vista 32-bit
Windows Vista 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Operating system requirement: Windows DirectX from 9.0c
Linux with Video4Linux
Interface
connector: 1 x WTB ACES 87214 – 0500 plug
Technical characteristics
Operating voltage: 5 V
Operating temperature: 0 °C ~ 50 °C
Maximum screen resolution: 2592 x 1944 @ 7 fps
Sensor Size: 1/4"
Current consumption: 430 mA @ 640 x 480
Physical characteristics
Length: 60 mm
Width: 8.0 mm
Height: 6.3 mm
