Page 1
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720

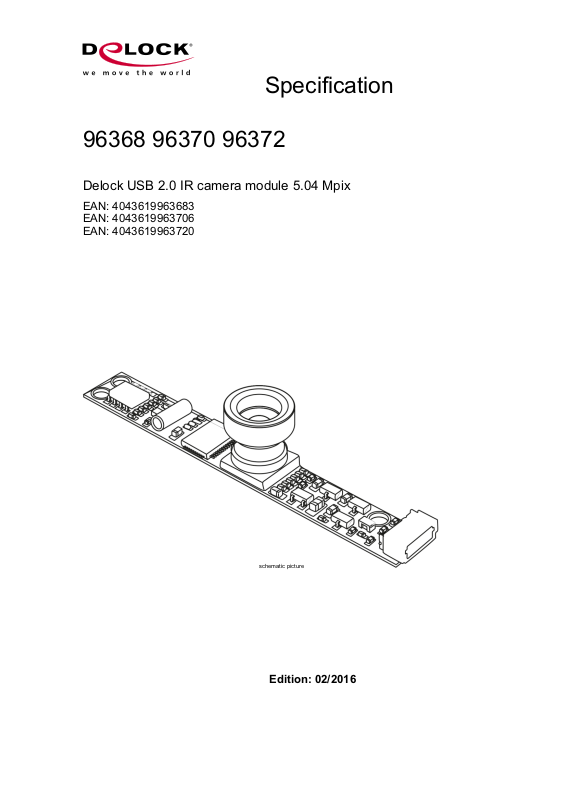

schematic picture
Edition: 02/2016
Page 2
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720
General Description
This is 5.04 mega pixel and AF camera module with sensor on board, lens module
and USB2.0 video/image process controller. It is designed for all kinds of
image processing.
The OV5640 is a low voltage, high perfomance, 1/4 inch CMOS image sensor that
provides the full functionality of a single chip camera using OmniBSI™ backside
illumination architectur in a small footprint package. It provides full-frame, subsample, windowed or arbitrarily scaled 8-bit/10-bit images in various formats via the
control of the Serial Camera Control Bus (SCCB) interface.
electronic
Features
• USB specification compliance
• USB 2.0 and USB 1.1 compliance
• USB video V1.1 compliance (UVC)
• USB high speed, full speed auto switching
• Supports 2592x1944, QXGA, SXGA, 1080P, 720P, VGA, CIF output formats.
• USB Video Class compliant, works with native driver in Microsoft Windows
XP 32-bit/64-bit,VISTA 32-bit/64-bit,Windows 7 and Windows 8 system, also with
Linux with UVC Video4Linux
• Auto Exposure (AE).
• Auto White Balance (AWB)
• Auto Flicker Correction.
• Color Correction.
• Gamma Correction.
• Dark Level Compensation.
• Auto Edge enhancement.
• Software controlled connection to USB bus for re-enumeration.
• Adjustable and dynamic frame rate control on USB transaction.
• Automatic frame rate adjustment when exposure in low light environment.
• Selective suspend to minimize power consumption.
Page 3
Parameter SPEC.
Optical sensor OV5640, 1/4 inch COMS sensor
Sensor resolution 2592 (H) x 1944 (V), QSXGA
Unit pixel size 1.4 um
Image area 3673.6 x 2738.4 micrometer
Color filter RGB Bayer pattem
Shutter type Electronic rolling shutter
Max. video frame rate 90fps@VGA,30fps@720p
F Number 2.8
AEC / AGC/ white balance Auto
Focus distance Fix focus 30 cm -
∝
Interface USB 2.0
Power USB Bus Power
Dimensions (mm) (L x W) 60 mm x 8 mm
Operating temperature 0°C ~ 50°C
Operating system request Windows XP，Windows 7/8/8.1/10
Max pixel rate 28 Mp/s
ADC accuracy 10-bit
USB 2.0 PHY On Chip PHY
Power consumption suspend 90 mA 士 5 mA
operating 430 mA 士 5 mA @ 640x480
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720
Character:
● Total height: 96372: 48°: 6.30 mm +/- 0.10 mm
96370: 55°: 12.00 mm +/- 0.10 mm
96368: 80°: 13.00 mm +/- 0.10 mm
● The dimension of lens’s seat: 8.0 × 8.0 mm.
● With IR Filter
● Working temperature: 0°C ~ 50°C
● Storage temperature: -40°C ~ 80°C
Page 4
Standard
Resolution fps
HVGA 320x480 30fps
VGA 640x480 30fps
XGA 1024x768 30fps
720p 1280x720 30fps
1280x960 30fps
1600x1200 15fps
1080p 1920x1080 15fps
2048x1536 15fps
5MP 2592x1944 7fps
Field of view F Eleme nts
96371 / 96372 D=60° / H=46° / V=32° 2.8 4
96369 / 96370 D=80° / H=60° / V=45° 3.0 5
96367 / 96368 D=170° / H=107° / V=80° 2.5 4
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720
Video capability
System requirements
• Device with Microsoft Windows Vista/7/8/8.1/19 or Linux above kernel 2.6.15 with
Video4Linux
Optical lens specification
Page 5
1 USB_D+
2 USB_D3 USB 5 V
4 NC
5 GND
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720

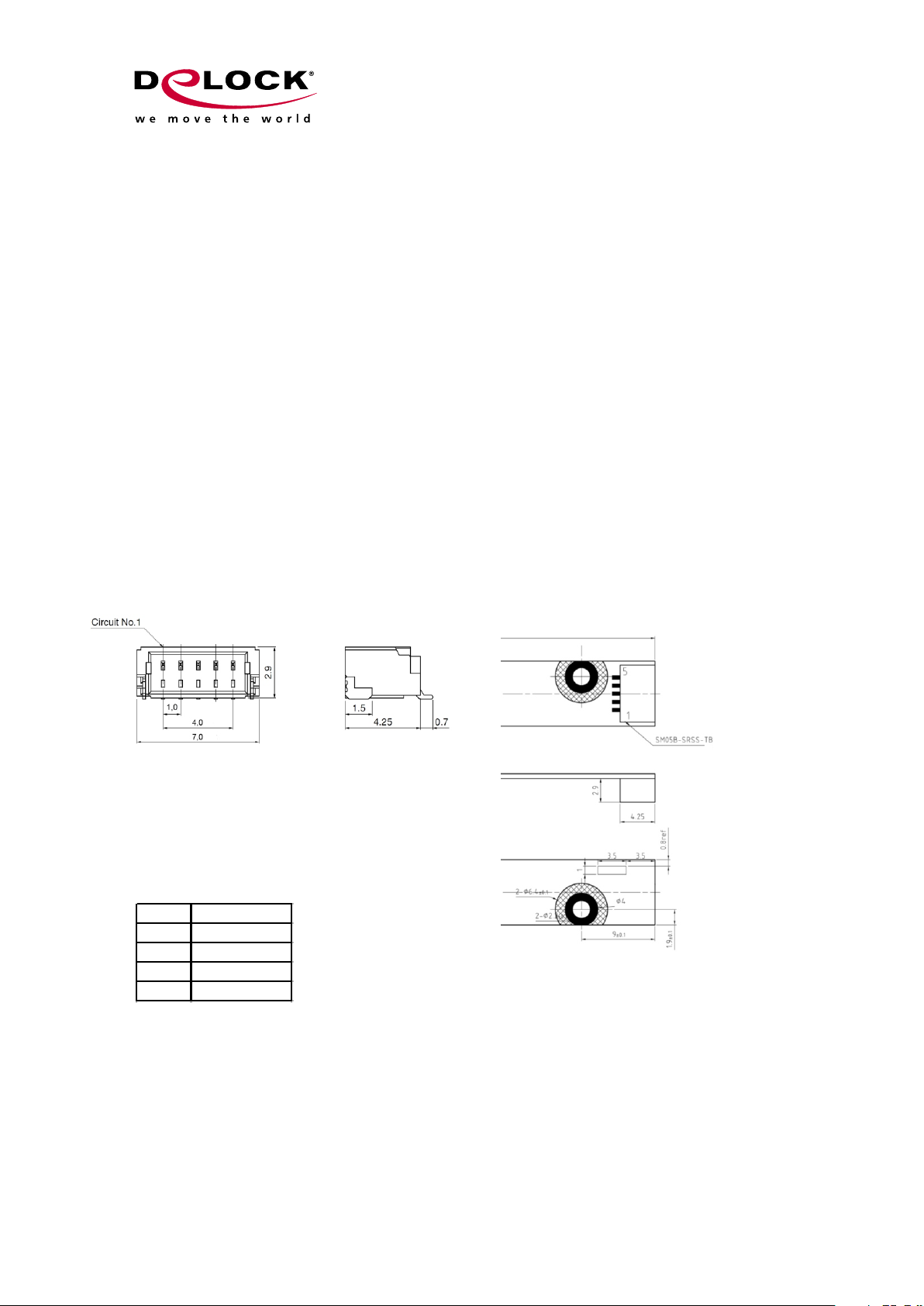

Pin assignment
(5pin 1.0mm pitch) connector definition:
Optional cable:
A95843 10cm
A95985 1.5m USB plug A
Page 6
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720

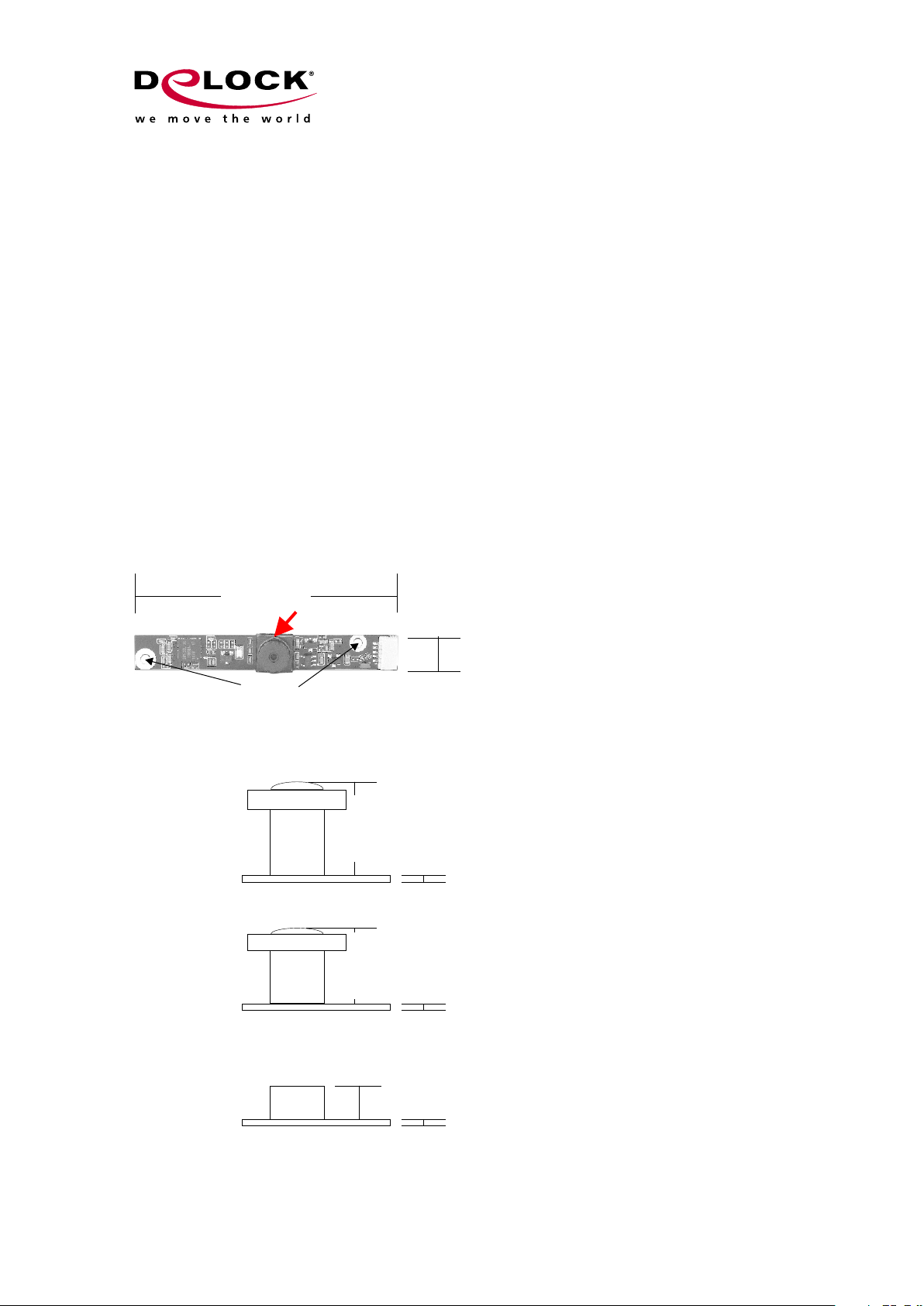

Structural diagram
lens height
96368
96370
60mm
R1.1mm
80°
55°
up
8mm
13.00
0.60
12.00
0.60
96372
48°
6.30
0.60
Page 7
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720
WEEE note
The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13
February 2003, lead to a comprehensive change in the disposal of used electric products. It is the
main purpose of this directive to avoid electric waste products (WEEE), while simultaneously
promoting the re-usage, recycling and other forms of reconditioning in order to reduce the amount of
waste. The WEEE logo on the product and the package shows that the product should not be
disposed of with regular garbage. You are responsible for disposing all used electric and electronic
devices at the corresponding collection sites. The separate collection and meaningful re-usage of
electronic waste helps to deal with natural resources more economically. In addition, re-using
electronic waste contributes to the preservation of the environment and human health. Additional
information regarding the disposal of electric and electronic devices, their re-usage and the collection
sites can be found at your local authorities, disposal companies, specialist shops and the
manufacturer of the product.
RoHS conformity
This product complies with the directive 2002/95/EC of the European parlament and the council from
January 27th 2003 concerning the restricted use of dangerous substances in electrical and
electronical devices (RoHS) as well as its modification. This product is compliant with Directive
2011/65/EU of 3 January 2013.
Page 8
Specification
96368 96370 96372
Delock USB 2.0 IR camera module 5.04 Mpix
EAN: 4043619963683
EAN: 4043619963706
EAN: 4043619963720
Support Delock
If you have further questions, please contact our customer support
[email protected].
You can find current product information on our homepage: www.delock.com.
Final clause
Information and data contained in this manual are subject to change without
notice in advance. Errors and misprints excepted.
Copyright
No part of this user manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically,
without explicit written approval of Delock.
Edition: 02/2016
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
