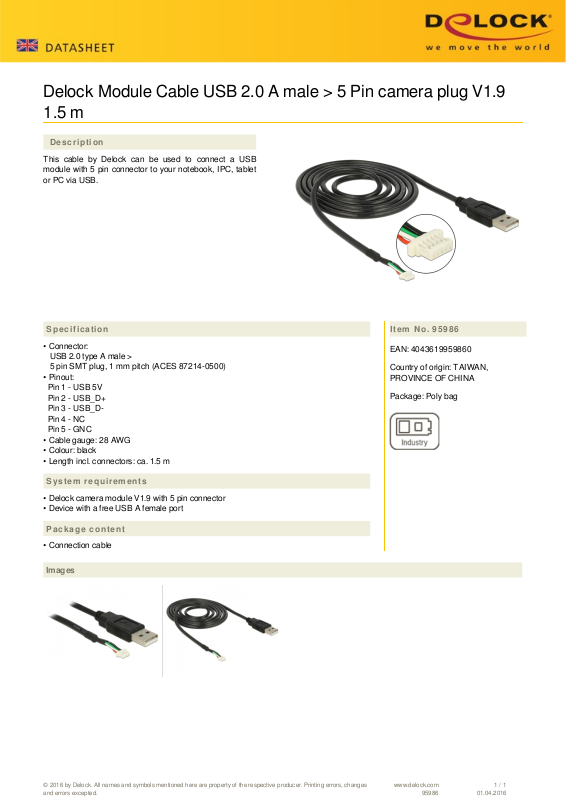

DELOCK 95986 Datasheet

Delock Module Cable USB 2.0 A male > 5 Pin camera plug V1.9

1.5 m

Description

This cable by Delock can be used to connect a USB
module with 5 pin connector to your notebook, IPC, tablet
or PC via USB.

Specification

• Connector:
USB 2.0 type A male >
5 pin SMT plug, 1 mm pitch (ACES 87214-0500)

• Pinout:
Pin 1 - USB 5V
Pin 2 - USB_D+
Pin 3 - USB_D­ Pin 4 - NC
Pin 5 - GNC

• Cable gauge: 28 AWG

• Colour: black

• Length incl. connectors: ca. 1.5 m

Item No. 95986

EAN: 4043619959860

Country of origin: TAIWAN,
PROVINCE OF CHINA

Package: Poly bag

System requirements

• Delock camera module V1.9 with 5 pin connector

• Device with a free USB A female port

Package content

• Connection cable

Images

Powered by TCPDF (www.tcpdf.org)

© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.

www.delock.com

95986

1 / 1

01.04.2016
