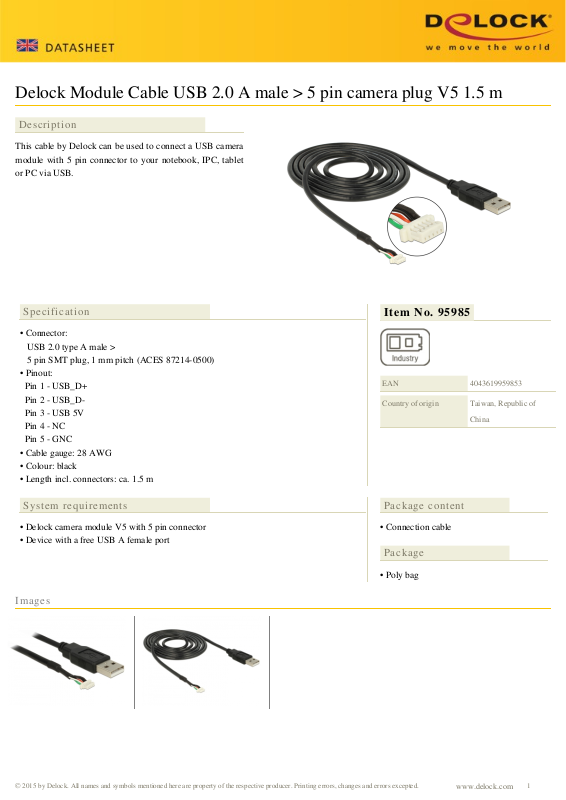

DELOCK 95985 Datasheet

Delock Module Cable USB 2.0 A male > 5 pin camera plug V5 1.5 m

Description

This cable by Delock can be used to connect a USB camera
module with 5 pin connector to your notebook, IPC, tablet
or PC via USB.

Specification

• Connector:
USB 2.0 type A male >
5 pin SMT plug, 1 mm pitch (ACES 87214-0500)

• Pinout:
Pin 1 - USB_D+
Pin 2 - USB_D­ Pin 3 - USB 5V
Pin 4 - NC
Pin 5 - GNC

• Cable gauge: 28 AWG

• Colour: black

• Length incl. connectors: ca. 1.5 m

Item No. 95985

EAN

Country of origin

4043619959853

Taiwan, Republic of
China

System requirements

• Delock camera module V5 with 5 pin connector

• Device with a free USB A female port

Images

Package content

• Connection cable

Package

• Poly bag
