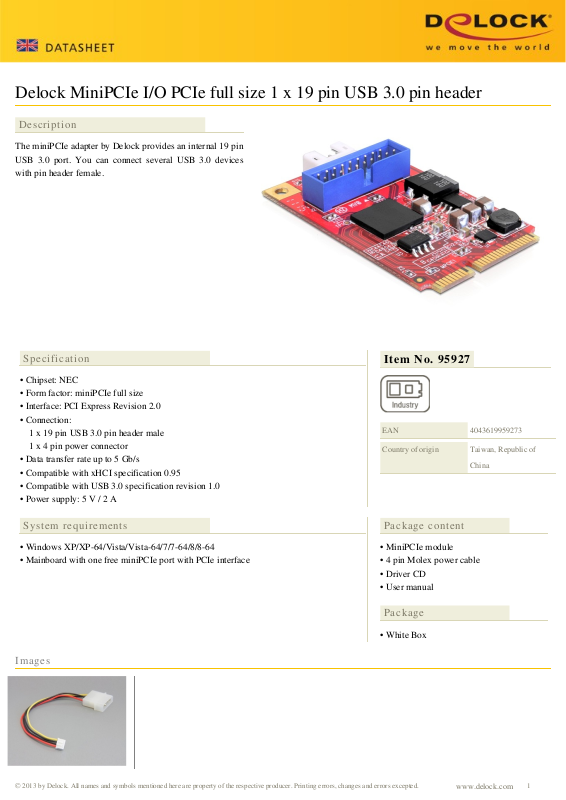

Delock MiniPCIe I/O PCIe full size 1 x 19 pin USB 3.0 pin header

Description

The miniPCIe adapter by Delock provides an internal 19 pin
USB 3.0 port. You can connect several USB 3.0 devices
with pin header female.

Specification

• Chipset: NEC

• Form factor: miniPCIe full size

• Interface: PCI Express Revision 2.0

• Connection:
1 x 19 pin USB 3.0 pin header male
1 x 4 pin power connector

• Data transfer rate up to 5 Gb/s

• Compatible with xHCI specification 0.95

• Compatible with USB 3.0 specification revision 1.0

• Power supply: 5 V / 2 A

Item No. 95927

EAN

Country of origin

4043619959273

Taiwan, Republic of
China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64

• Mainboard with one free miniPCIe port with PCIe interface

Package content

• MiniPCIe module

• 4 pin Molex power cable

• Driver CD

• User manual

Package

• White Box

Images
