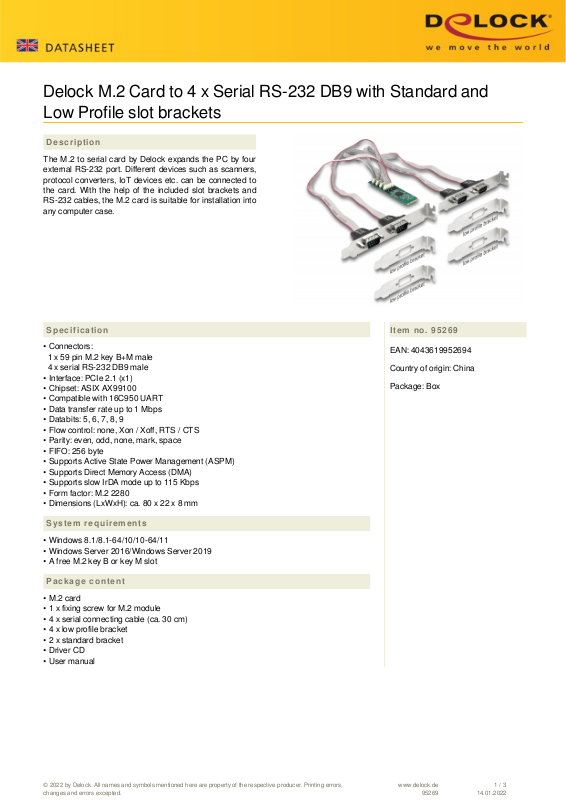

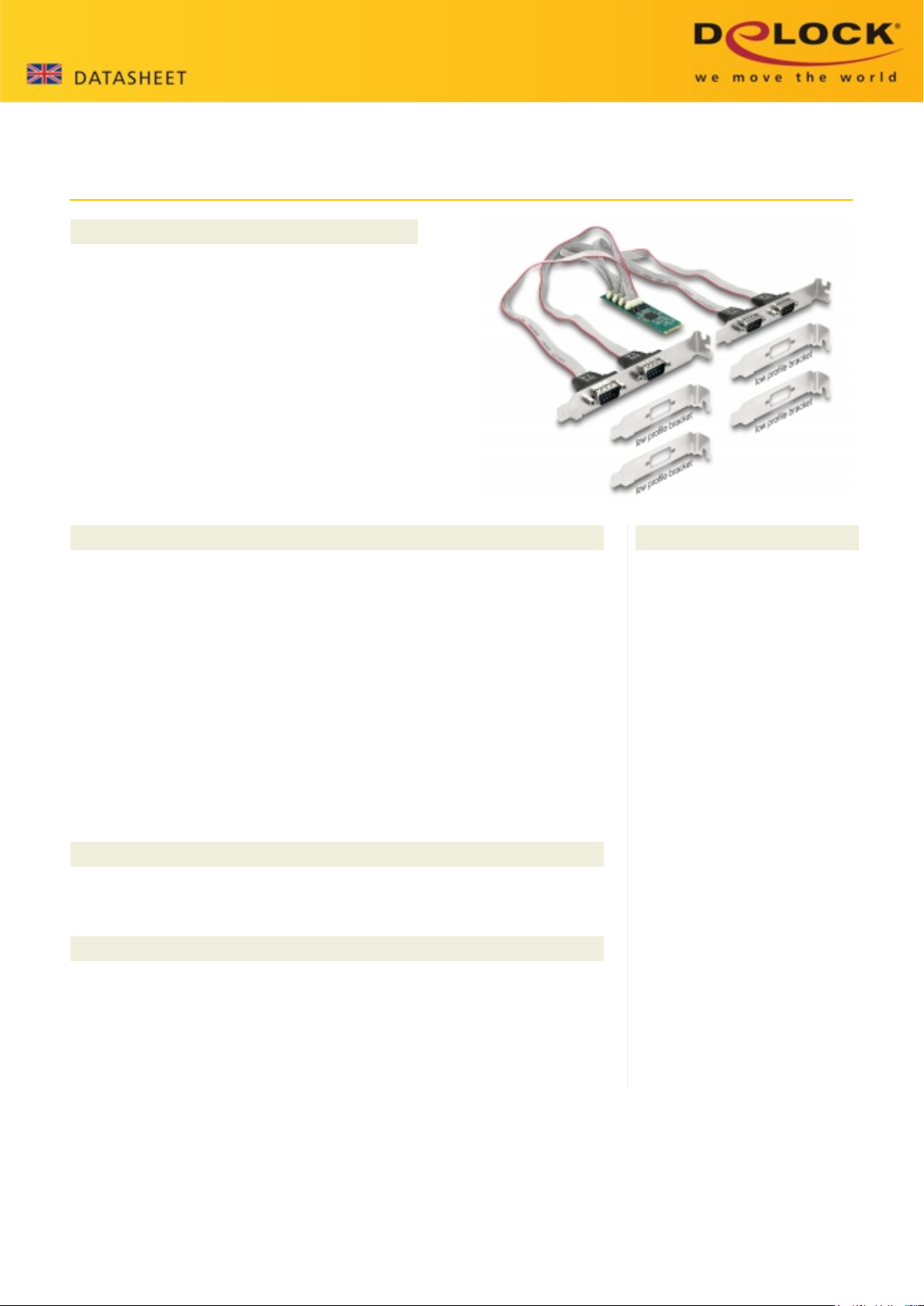

Delock M.2 Card to 4 x Serial RS-232 DB9 with Standard and
Low Profile slot brackets
Description
The M.2 to serial card by Delock expands the PC by four
external RS-232 port. Different devices such as scanners,
protocol converters, IoT devices etc. can be connected to
the card. With the help of the included slot brackets and
RS-232 cables, the M.2 card is suitable for installation into
any computer case.
Specification
• Connectors:
1 x 59 pin M.2 key B+M male
4 x serial RS-232 DB9 male
• Interface: PCIe 2.1 (x1)
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Data transfer rate up to 1 Mbps
• Databits: 5, 6, 7, 8, 9
• Flow control: none, Xon / Xoff, RTS / CTS
• Parity: even, odd, none, mark, space
• FIFO: 256 byte
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Supports slow IrDA mode up to 115 Kbps
• Form factor: M.2 2280
• Dimensions (LxWxH): ca. 80 x 22 x 8 mm
Item no. 95269
EAN: 4043619952694
Country of origin: China
Package: Box
System requirements
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016/Windows Server 2019
• A free M.2 key B or key M slot
Package content
• M.2 card
• 1 x fixing screw for M.2 module
• 4 x serial connecting cable (ca. 30 cm)
• 4 x low profile bracket
• 2 x standard bracket
• Driver CD
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
95269
1 / 3
14.01.2022
Page 2

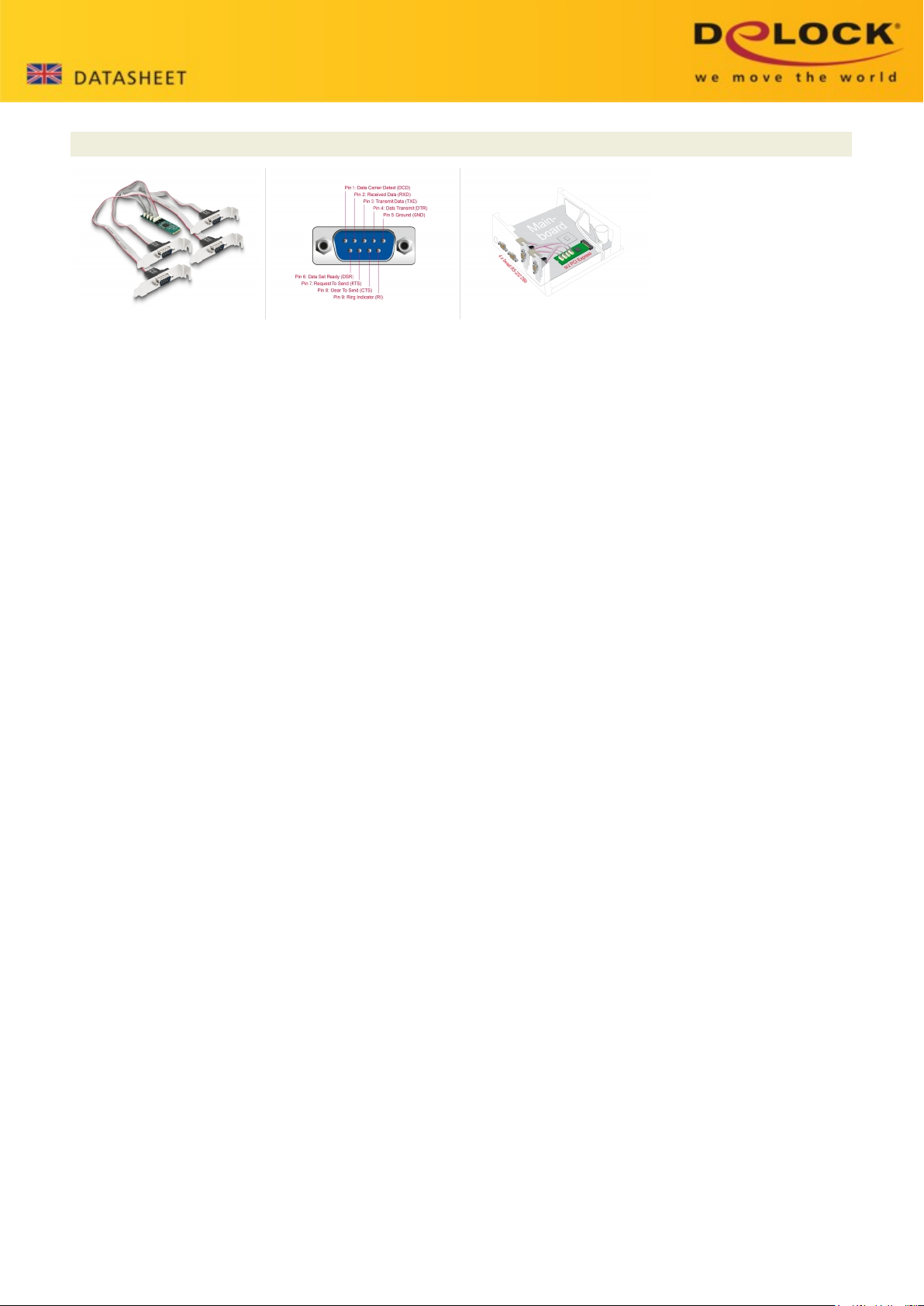

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
95269
2 / 3
14.01.2022
Page 3
General
Form factor: M.2 2280
Specification: RS-232 (EIA / TIA)
M.2
PCI Express 2.1
Supported operating system: Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Slot: M.2
Interface
External: 2 x Seriell RS-232 DB9 Stecker (separates Slotblech)
4 x Seriell RS-232 DB9 Stecker (separates LP Slotblech)
Internal: 1 x 59 pin M.2 key B+M male
Technical characteristics
Chipset: ASIX AX99100
Data transfer rate: 4 x up to 921,6 Kbps
FIFO: 4 x 256 Byte
Operating temperature: 0 °C ~ 70 °C
Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
UART: 16C950
Physical characteristics
Slot bracket: low profile
standard
Colour: green
