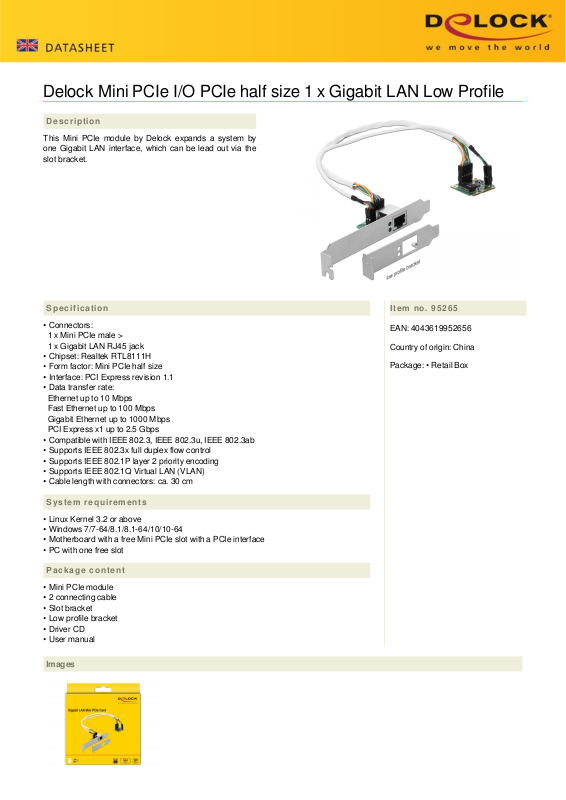

DELOCK 95265 Datasheet

Delock Mini PCIe I/O PCIe half size 1 x Gigabit LAN Low Profile

Description

This Mini PCIe module by Delock expands a system by
one Gigabit LAN interface, which can be lead out via the
slot bracket.

Specification

• Connectors:
1 x Mini PCIe male >
1 x Gigabit LAN RJ45 jack

• Chipset: Realtek RTL8111H

• Form factor: Mini PCIe half size

• Interface: PCI Express revision 1.1

• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
PCI Express x1 up to 2.5 Gbps

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports IEEE 802.3x full duplex flow control

• Supports IEEE 802.1P layer 2 priority encoding

• Supports IEEE 802.1Q Virtual LAN (VLAN)

• Cable length with connectors: ca. 30 cm

Item no. 95265

EAN: 4043619952656

Country of origin: China

Package: • Retail Box

System requirements

• Linux Kernel 3.2 or above

• Windows 7/7-64/8.1/8.1-64/10/10-64

• Motherboard with a free Mini PCIe slot with a PCIe interface

• PC with one free slot

Package content

• Mini PCIe module

• 2 connecting cable

• Slot bracket

• Low profile bracket

• Driver CD

• User manual

Images

General

Form factor: Mini PCIe half size
Supported operating system: Windows 7 32-bit

Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Linux Kernel 3.2 or above

Interface

connector: 1 x RJ45 jack

Technical characteristics

Chipset: Realtek RTL8111H
Data transfer rate: Ethernet up to 10 Mbps

Fast Ethernet up to 100 Mbps

Gigabit Ethernet up to 1 Gbps

Physical characteristics

Slot bracket: low profile

standard
