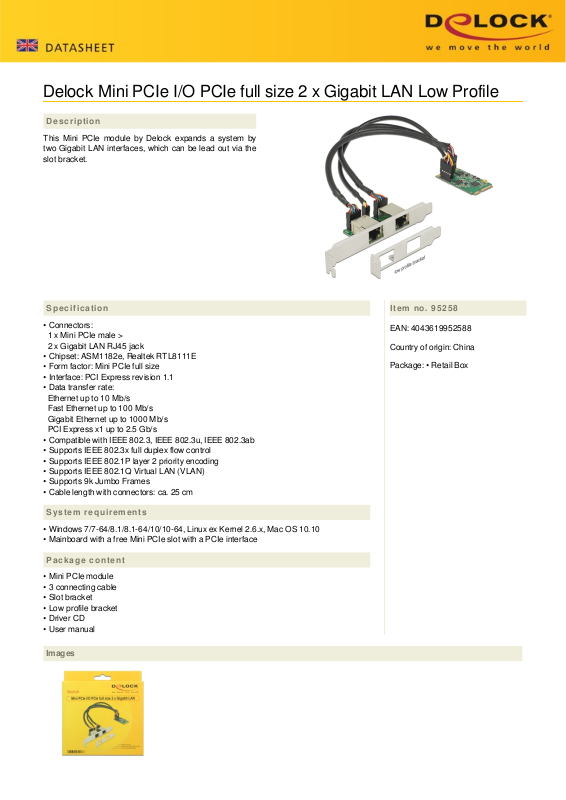

DELOCK 95258 Datasheet

Delock Mini PCIe I/O PCIe full size 2 x Gigabit LAN Low Profile

Description

This Mini PCIe module by Delock expands a system by
two Gigabit LAN interfaces, which can be lead out via the
slot bracket.

Specification

• Connectors:
1 x Mini PCIe male >
2 x Gigabit LAN RJ45 jack

• Chipset: ASM1182e, Realtek RTL8111E

• Form factor: Mini PCIe full size

• Interface: PCI Express revision 1.1

• Data transfer rate:
Ethernet up to 10 Mb/s
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1000 Mb/s
PCI Express x1 up to 2.5 Gb/s

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports IEEE 802.3x full duplex flow control

• Supports IEEE 802.1P layer 2 priority encoding

• Supports IEEE 802.1Q Virtual LAN (VLAN)

• Supports 9k Jumbo Frames

• Cable length with connectors: ca. 25 cm

Item no. 95258

EAN: 4043619952588

Country of origin: China

Package: • Retail Box

System requirements

• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 2.6.x, Mac OS 10.10

• Mainboard with a free Mini PCIe slot with a PCIe interface

Package content

• Mini PCIe module

• 3 connecting cable

• Slot bracket

• Low profile bracket

• Driver CD

• User manual

Images

General

Form factor: Mini PCIe full size
Supported operating system: Mac OS 10.5 or above

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Linux Kernel 2.6 or above

Interface

connector: 2 x Gigabit LAN RJ45 jack

Technical characteristics

Chipset: Realtek RTL8111E

ASM1182e
Data transfer rate: Ethernet up to 10 Mbps

Fast Ethernet up to 100 Mbps

Gigabit Ethernet up to 1 Gbps

Physical characteristics

Slot bracket: low profile

standard
