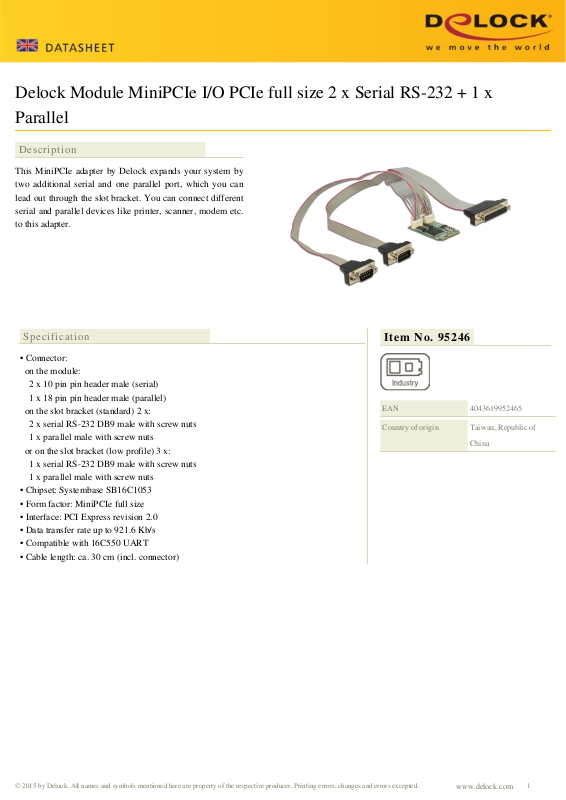

Delock Module MiniPCIe I/O PCIe full size 2 x Serial RS-232 + 1 x
Parallel
Description
This MiniPCIe adapter by Delock expands your system by
two additional serial and one parallel port, which you can
lead out through the slot bracket. You can connect different
serial and parallel devices like printer, scanner, modem etc.
to this adapter.
Specification
• Connector:
on the module:
2 x 10 pin pin header male (serial)
1 x 18 pin pin header male (parallel)
on the slot bracket (standard) 2 x:
2 x serial RS-232 DB9 male with screw nuts
1 x parallel male with screw nuts
or on the slot bracket (low profile) 3 x:
1 x serial RS-232 DB9 male with screw nuts
1 x parallel male with screw nuts
• Chipset: Systembase SB16C1053
• Form factor: MiniPCIe full size
• Interface: PCI Express revision 2.0
• Data transfer rate up to 921.6 Kb/s
• Compatible with 16C550 UART
• Cable length: ca. 30 cm (incl. connector)
Item No. 95246
EAN
Country of origin
4043619952465
Taiwan, Republic of
China
© 2015 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1

System requirements
Package content
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 2.6
• Mainboard with a free MiniPCIe slot with a PCIe interface
Images
• MiniPCIe module
• 2 x serial connection cable (pin header >
DB9)
• 1 x parallel connection cable (pin header >
DB25)
• Power cable
• 2 x standard slot bracket
• 3 x low profile slot bracket
• Driver CD
• User manual
Package
• Box
