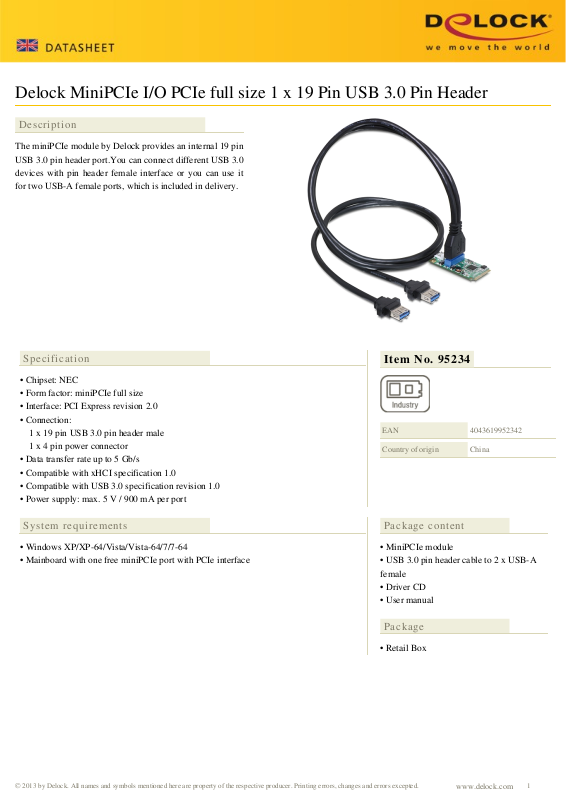

DeLOCK 95234 User Manual
Delock MiniPCIe I/O PCIe full size 1 x 19 Pin USB 3.0 Pin Header
Description
The miniPCIe module by Delock provides an internal 19 pin
USB 3.0 pin header port.You can connect different USB 3.0
devices with pin header female interface or you can use it
for two USB-A female ports, which is included in delivery.
Specification
• Chipset: NEC
• Form factor: miniPCIe full size
• Interface: PCI Express revision 2.0
• Connection:
1 x 19 pin USB 3.0 pin header male
1 x 4 pin power connector
• Data transfer rate up to 5 Gb/s
• Compatible with xHCI specification 1.0
• Compatible with USB 3.0 specification revision 1.0
• Power supply: max. 5 V / 900 mA per port
Item No. 95234
EAN
Country of origin
4043619952342
China
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64
• Mainboard with one free miniPCIe port with PCIe interface
Package content
• MiniPCIe module
• USB 3.0 pin header cable to 2 x USB-A
female
• Driver CD
• User manual
Package
• Retail Box
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
Images
