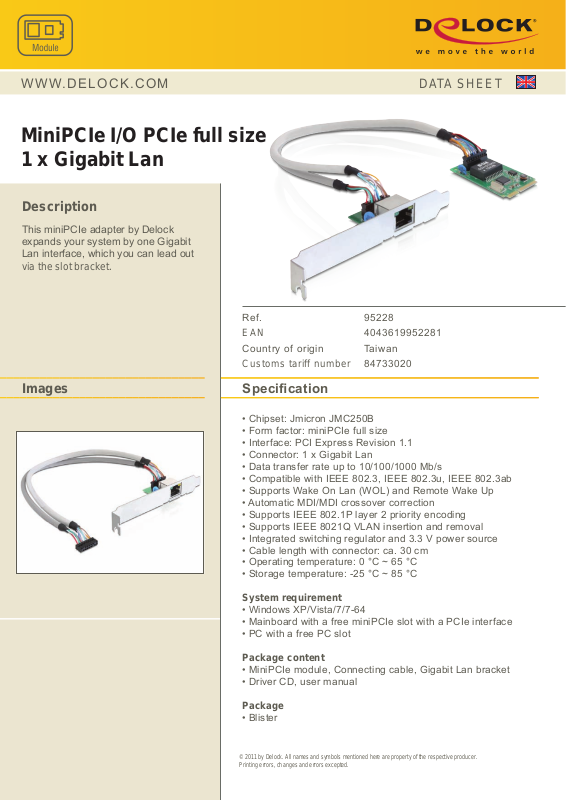

DeLOCK 95228 User Manual

WWW.DELOCK.COM

MiniPCIe I/O PCIe full size 1 x Gigabit Lan

Description

This miniPCIe adapter by Delock expands your system by one Gigabit Lan interface, which you can lead out

via the slot bracket.

DATA SHEET

Images

Ref.

EAN

Country of origin

Customs tariff number

95228

4043619952281

Taiwan

84733020

Specication

• Chipset: Jmicron JMC250B

• Form factor: miniPCIe full size

• Interface: PCI Express Revision 1.1

• Connector: 1 x Gigabit Lan

• Data transfer rate up to 10/100/1000 Mb/s

• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

• Supports Wake On Lan (WOL) and Remote Wake Up

• Automatic MDI/MDI crossover correction

• Supports IEEE 802.1P layer 2 priority encoding

• Supports IEEE 8021Q VLAN insertion and removal

• Integrated switching regulator and 3.3 V power source

• Cable length with connector: ca. 30 cm

• Operating temperature: 0 °C ~ 65 °C

• Storage temperature: -25 °C ~ 85 °C

System requirement

• Windows XP/Vista/7/7-64

• Mainboard with a free miniPCIe slot with a PCIe interface

• PC with a free PC slot

Package content

• MiniPCIe module, Connecting cable, Gigabit Lan bracket

• Driver CD, user manual

Package

• Blister
