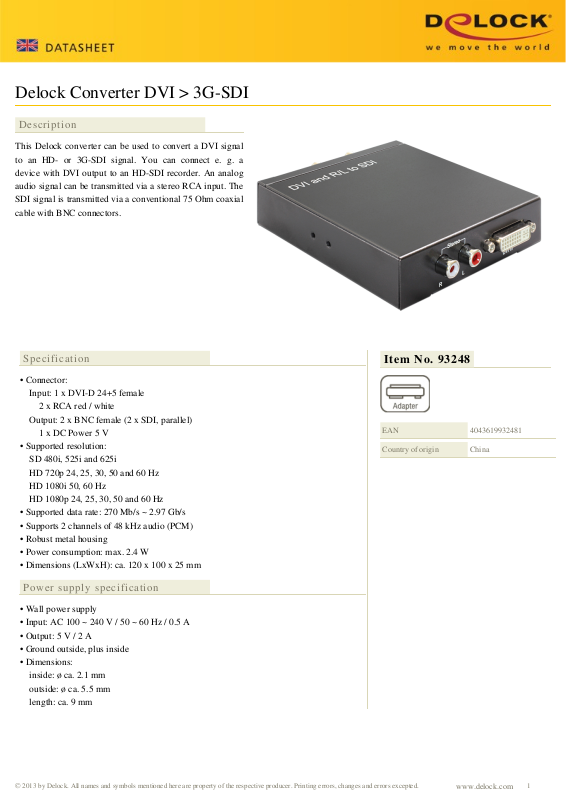

DeLOCK 93248 User Manual

Delock Converter DVI > 3G-SDI

Description

This Delock converter can be used to convert a DVI signal
to an HD- or 3G-SDI signal. You can connect e. g. a
device with DVI output to an HD-SDI recorder. An analog
audio signal can be transmitted via a stereo RCA input. The
SDI signal is transmitted via a conventional 75 Ohm coaxial
cable with BNC connectors.

Specification

• Connector:
Input: 1 x DVI-D 24+5 female
2 x RCA red / white
Output: 2 x BNC female (2 x SDI, parallel)
1 x DC Power 5 V

• Supported resolution:
SD 480i, 525i and 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz

• Supported data rate: 270 Mb/s ~ 2.97 Gb/s

• Supports 2 channels of 48 kHz audio (PCM)

• Robust metal housing

• Power consumption: max. 2.4 W

• Dimensions (LxWxH): ca. 120 x 100 x 25 mm

Power supply specification

Item No. 93248

EAN

Country of origin

4043619932481

China

• Wall power supply

• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A

• Output: 5 V / 2 A

• Ground outside, plus inside

• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm

© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.

www.delock.com

1

Images

Package content

• DVI > 3G-SDI Converter

• Mounting brackets and screws

• Power supply 5 V

Package

• Box
