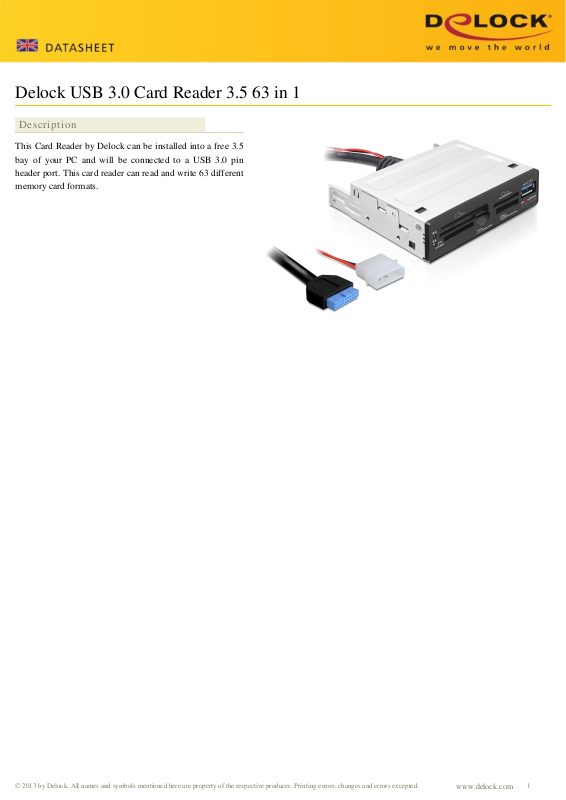

DeLOCK 91725 User Manual

Delock USB 3.0 Card Reader 3.5 63 in 1
Description
This Card Reader by Delock can be installed into a free 3.5 bay of your PC and will be connected to a USB 3.0 pin header port. This card reader can read and write 63 different memory card formats.
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
1
Specification
• Connector: external: 5 x Card Reader slots 1 x USB 3.0 type A female internal: 1 x 19 pin USB 3.0 pin header female 1 x Molex power connector
• Metal case for 3.5 bay installation
• USB 3.0-A port to use USB devices for data or power (also for charging devices like iPad, iPhone)
• Data transfer rate up to 5 Gb/s
• Hot Swap, Plug & Play
Supports following memory cards:
Slot 1
Compact Flash / Micro Drive
CF I, CF II, CF4.0, CF Ultra, CF Ultra DMA, CF Ultra II, CF Ultra III, CF Ultra IV, CF Extreme, CF Extreme III, CF Extreme IV, Microdrive, MagicStor
Slot 2
Secure Digital / Multi Media Card
SD, SD Pro, SD Ultra, SD High Capacity (SDHC), Turbo-SD, SDHC Turbo, SD Ultra, SD Ultra II, SDHC Ultra, SDXC, SDXC Ultra, MMC-I, MMC-II, MMC plus,MMC plus Turbo, MMC
4.0, Mini SD, Mini SDHC, Turbo Mini SD, MMCmobile, RS-MMC, RS-MMC 4.0
Slot 3
xD, xD type M, xD type H
xD
Slot 4
M2 / Micro SD
MS Micro, MS-Pro Micro, MS-HG Micro, MS XC-HG Micro, M2 MicroSD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
Slot 5
Memory Stick
MS, High Speed Memory Stick (HS-MS), MS Pro, MS Pro-HG, MS-HG, Memory Stick XC, MS Magic Gate, MS-Pro Magic Gate, MS-Duo, MS-Duo Magic Gate, MS-Pro Duo, MS Pro-HG Duo, MS-Duo, MS XC-Duo, MS XC-HG Duo
Item No. 91725
EAN
Country of origin
4043619917259
China
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64
• PC with one free 3.5 Bay
• Mainboard with a free 19 pin USB 3.0 pin header
• Power supply with a free Molex power connector
Package content
• Card Reader with cable for Mainboard
• User manual
Package
• Retail Box
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
2
