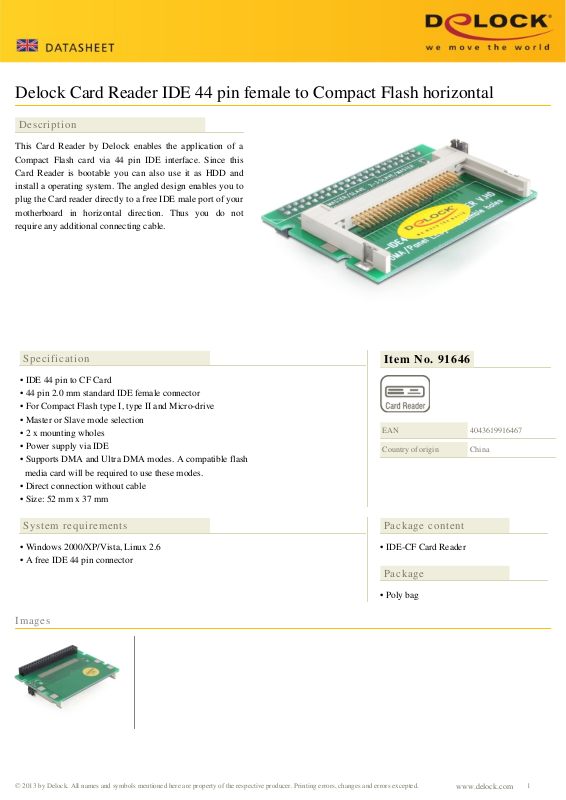

DeLOCK 91646 User Manual

Delock Card Reader IDE 44 pin female to Compact Flash horizontal

Description

This Card Reader by Delock enables the application of a
Compact Flash card via 44 pin IDE interface. Since this
Card Reader is bootable you can also use it as HDD and
install a operating system. The angled design enables you to
plug the Card reader directly to a free IDE male port of your
motherboard in horizontal direction. Thus you do not
require any additional connecting cable.

Specification

• IDE 44 pin to CF Card

• 44 pin 2.0 mm standard IDE female connector

• For Compact Flash type I, type II and Micro-drive

• Master or Slave mode selection

• 2 x mounting wholes

• Power supply via IDE

• Supports DMA and Ultra DMA modes. A compatible flash
media card will be required to use these modes.

• Direct connection without cable

• Size: 52 mm x 37 mm

Item No. 91646

EAN

Country of origin

4043619916467

China

System requirements

• Windows 2000/XP/Vista, Linux 2.6

• A free IDE 44 pin connector

Package content

• IDE-CF Card Reader

Package

• Poly bag

Images
