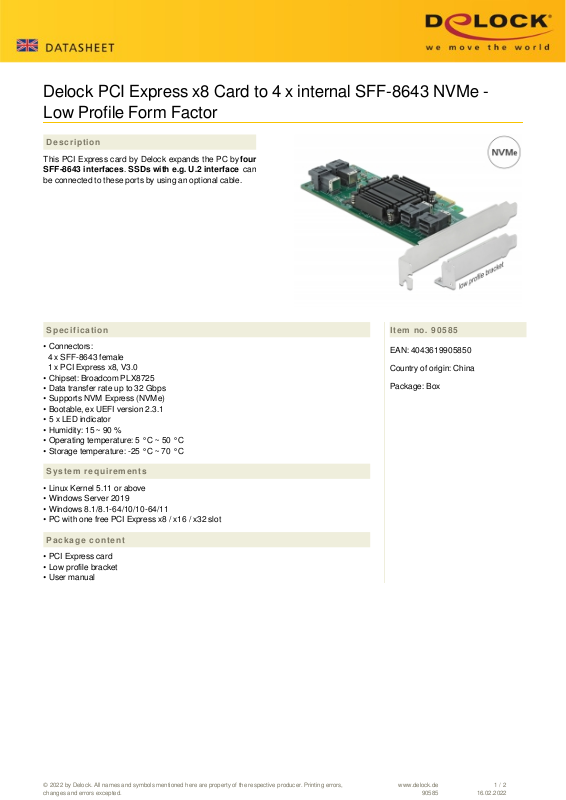

Delock PCI Express x8 Card to 4 x internal SFF-8643 NVMe Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC byfour
SFF-8643 interfaces. SSDs with e.g. U.2 interface can
be connected to these ports by using an optional cable.
Specification
• Connectors:
4 x SFF-8643 female
1 x PCI Express x8, V3.0
• Chipset: Broadcom PLX8725
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• 5 x LED indicator
• Humidity: 15 ~ 90 %
• Operating temperature: 5 °C ~ 50 °C
• Storage temperature: -25 °C ~ 70 °C
Item no. 90585
EAN: 4043619905850
Country of origin: China
Package: Box
System requirements
• Linux Kernel 5.11 or above
• Windows Server 2019
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90585
1 / 2
16.02.2022
Page 2
General
Function: Bootable, ex UEFI 2.3.1
NVM Express (NVMe)
Supported operating system: Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows Server 2019
Linux Kernel 5.11 or above
LED indicator: 5 x
Interface
Internal: 1 x PCI Express x8, V3.0
4 x SFF-8643 female
Technical characteristics
Chipset: Broadcom PLX8725
Operating temperature: 5 °C ~ 50 °C
