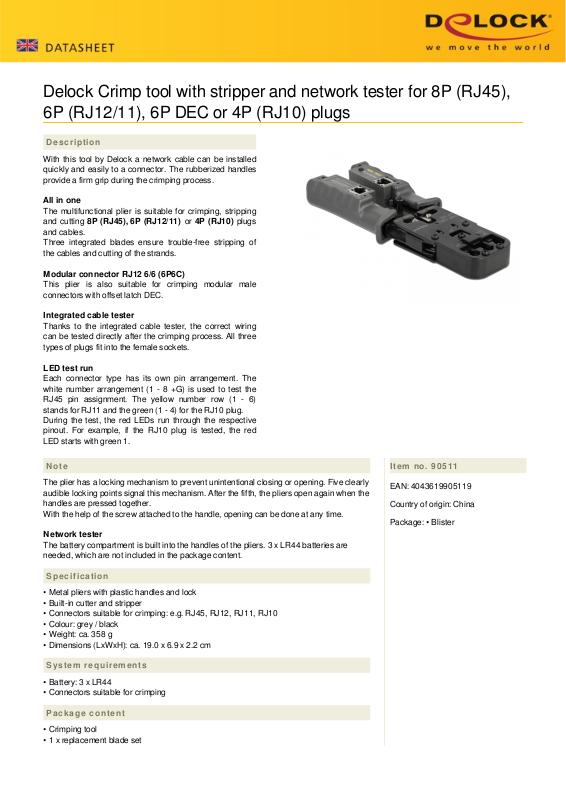

Delock Crimp tool with stripper and network tester for 8P (RJ45),
6P (RJ12/11), 6P DEC or 4P (RJ10) plugs
Description
With this tool by Delock a network cable can be installed
quickly and easily to a connector. The rubberized handles
provide a firm grip during the crimping process.
All in one
The multifunctional plier is suitable for crimping, stripping
and cutting 8P (RJ45), 6P (RJ12/11) or 4P (RJ10) plugs
and cables.
Three integrated blades ensure trouble-free stripping of
the cables and cutting of the strands.
Modular connector RJ12 6/6 (6P6C)
This plier is also suitable for crimping modular male
connectors with offset latch DEC.
Integrated cable tester
Thanks to the integrated cable tester, the correct wiring
can be tested directly after the crimping process. All three
types of plugs fit into the female sockets.
LED test run
Each connector type has its own pin arrangement. The
white number arrangement (1 - 8 +G) is used to test the
RJ45 pin assignment. The yellow number row (1 - 6)
stands for RJ11 and the green (1 - 4) for the RJ10 plug.
During the test, the red LEDs run through the respective
pinout. For example, if the RJ10 plug is tested, the red
LED starts with green 1.
Note
The plier has a locking mechanism to prevent unintentional closing or opening. Five clearly
audible locking points signal this mechanism. After the fifth, the pliers open again when the
handles are pressed together.
With the help of the screw attached to the handle, opening can be done at any time.
Network tester
The battery compartment is built into the handles of the pliers. 3 x LR44 batteries are
needed, which are not included in the package content.
Specification
• Metal pliers with plastic handles and lock
• Built-in cutter and stripper
• Connectors suitable for crimping: e.g. RJ45, RJ12, RJ11, RJ10
• Colour: grey / black
• Weight: ca. 358 g
• Dimensions (LxWxH): ca. 19.0 x 6.9 x 2.2 cm
System requirements
• Battery: 3 x LR44
• Connectors suitable for crimping
Package content
• Crimping tool
• 1 x replacement blade set
Item no. 90511
EAN: 4043619905119
Country of origin: China
Package: • Blister
Page 2
Images
Page 3
Physical characteristics
Weight: 358 g
Length: 19 cm
Width: 6.9 cm
Height: 2.2 cm
