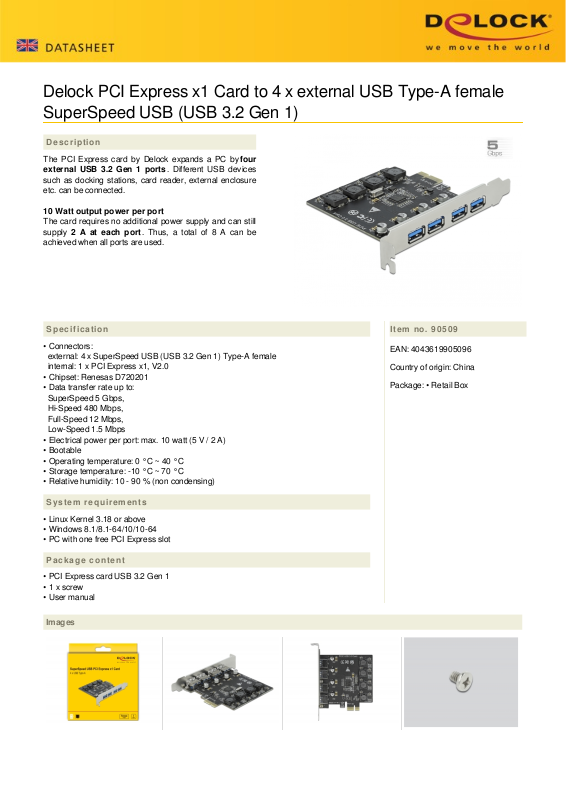

Page 1
Delock PCI Express x1 Card to 4 x external USB Type-A female
SuperSpeed USB (USB 3.2 Gen 1)
Description
The PCI Express card by Delock expands a PC byfour
external USB 3.2 Gen 1 ports. Different USB devices
such as docking stations, card reader, external enclosure
etc. can be connected.
10 Watt output power per port
The card requires no additional power supply and can still
supply 2 A at each port. Thus, a total of 8 A can be
achieved when all ports are used.
Specification
• Connectors:
external: 4 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
internal: 1 x PCI Express x1, V2.0
• Chipset: Renesas D720201
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Electrical power per port: max. 10 watt (5 V / 2 A)
• Bootable
• Operating temperature: 0 °C ~ 40 °C
• Storage temperature: -10 °C ~ 70 °C
• Relative humidity: 10 - 90 % (non condensing)
Item no. 90509
EAN: 4043619905096
Country of origin: China
Package: • Retail Box
System requirements
• Linux Kernel 3.18 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card USB 3.2 Gen 1
• 1 x screw
• User manual
Images
Page 2
General
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.18 or above
Interface
External: 4 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
Internal: 1 x PCI Express x1, V2.0
Technical characteristics
Chipset: Renesas D720201
Physical characteristics
Slot bracket: standard
