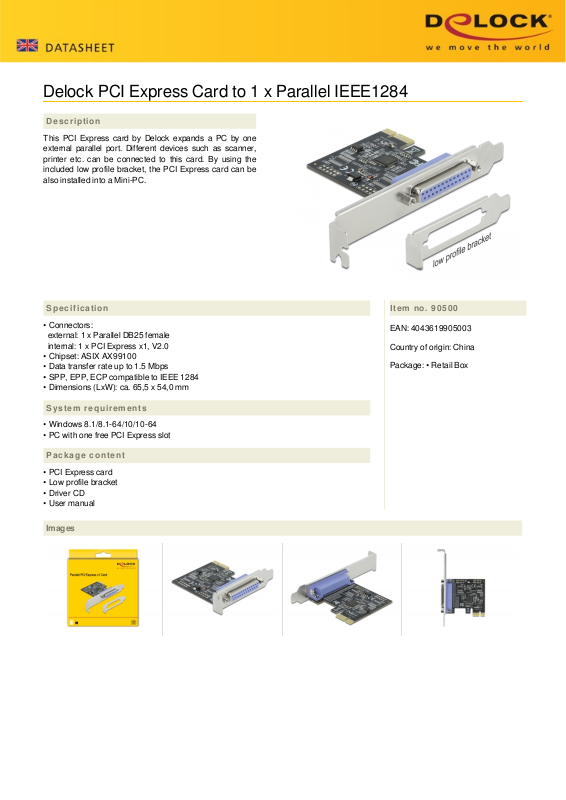

Delock PCI Express Card to 1 x Parallel IEEE1284
Description
This PCI Express card by Delock expands a PC by one
external parallel port. Different devices such as scanner,
printer etc. can be connected to this card. By using the
included low profile bracket, the PCI Express card can be
also installed into a Mini-PC.
Specification
• Connectors:
external: 1 x Parallel DB25 female
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Data transfer rate up to 1.5 Mbps
• SPP, EPP, ECP compatible to IEEE 1284
• Dimensions (LxW): ca. 65,5 x 54,0 mm
Item no. 90500
EAN: 4043619905003
Country of origin: China
Package: • Retail Box
System requirements
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
Images
Page 2
General
Form factor: Low Profile
Specification: IEEE1284
PCIe 1.1
SPP, EPP, ECP
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: PCIe
Interface
External: 1 x Parallel DB25 female
Internal: 1 x PCI Express x1, V1.1
Technical characteristics
Chipset: ASIX AX99100
Data transfer rate: 1.5 MBps LPT
Data transmission: Bi-directional
Physical characteristics
Slot bracket: low profile
standard
Length: 65.5 mm
Width: 54.0 mm
