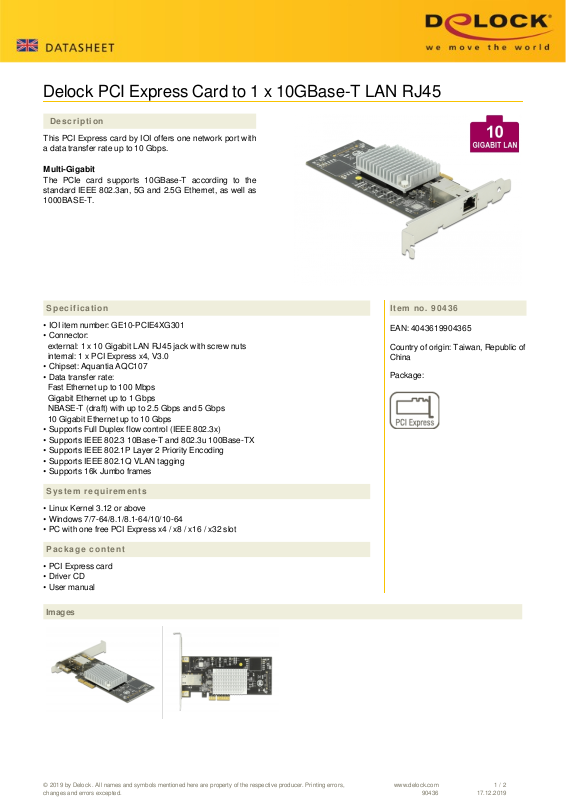

Delock PCI Express Card to 1 x 10GBase-T LAN RJ45
Description
This PCI Express card by IOI offers one network port with
a data transfer rate up to 10 Gbps.
Multi-Gigabit
The PCIe card supports 10GBase-T according to the
standard IEEE 802.3an, 5G and 2.5G Ethernet, as well as
1000BASE-T.
Specification
• IOI item number: GE10-PCIE4XG301
• Connector:
external: 1 x 10 Gigabit LAN RJ45 jack with screw nuts
internal: 1 x PCI Express x4, V3.0
• Chipset: Aquantia AQC107
• Data transfer rate:
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
• Supports Full Duplex flow control (IEEE 802.3x)
• Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports 16k Jumbo frames
Item no. 90436
EAN: 4043619904365
Country of origin: Taiwan, Republic of
China
Package:
System requirements
• Linux Kernel 3.12 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Driver CD
• User manual
Images
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
90436
1 / 2
17.12.2019
Page 2
General
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.12 or above
Interface
External: 1 x 10 Gigabit LAN RJ45 jack
Internal: 1 x PCI Express x4, V3.0
1 x SATA 15 pin power connector
