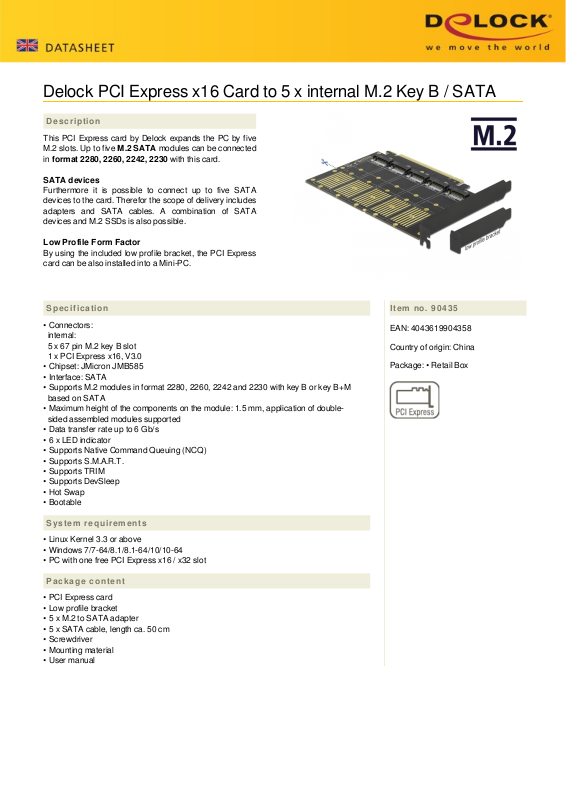

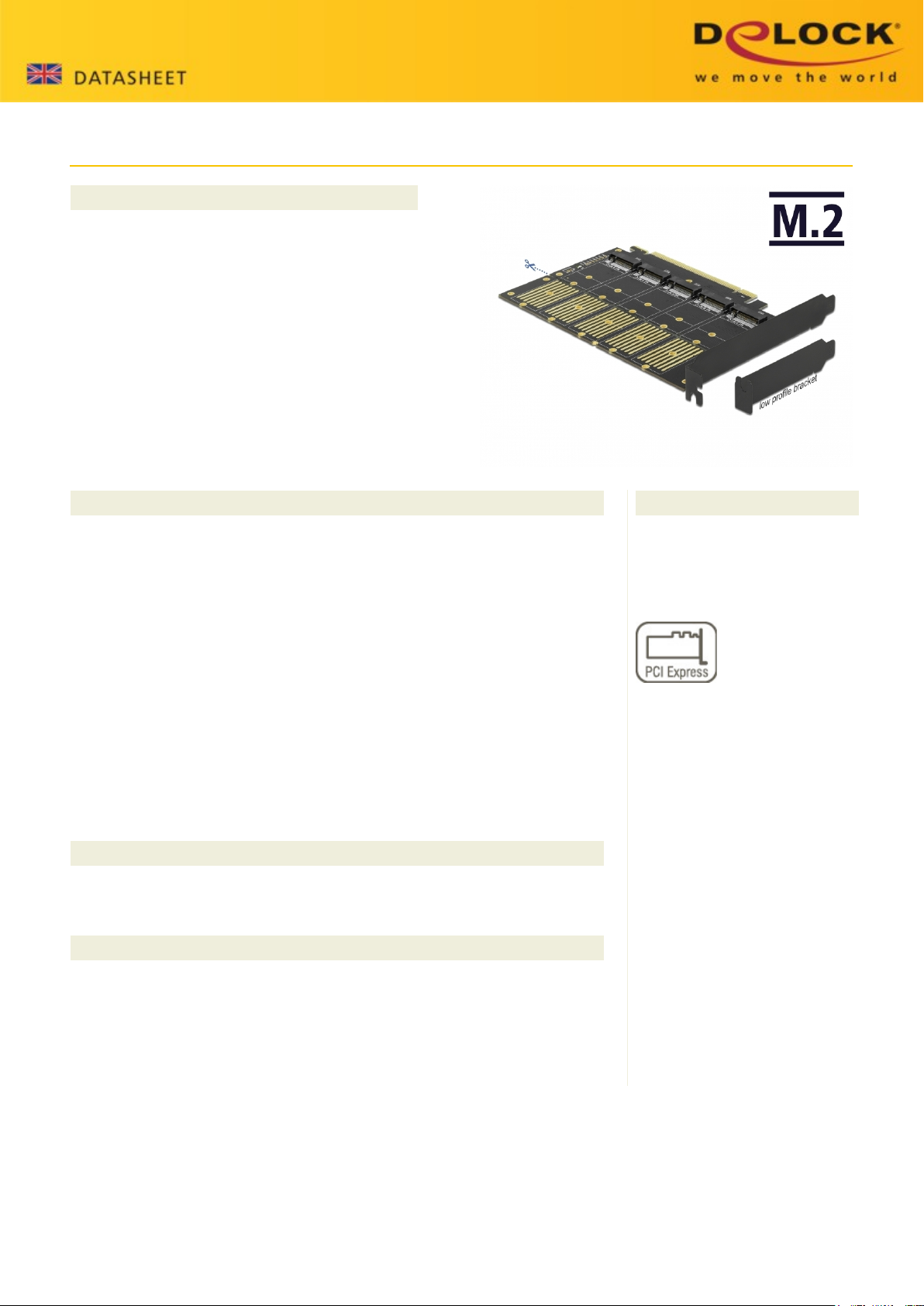

Delock PCI Express x16 Card to 5 x internal M.2 Key B / SATA
Description
This PCI Express card by Delock expands the PC by five
M.2 slots. Up to five M.2 SATA modules can be connected
in format 2280, 2260, 2242, 2230 with this card.
SATA devices
Furthermore it is possible to connect up to five SATA
devices to the card. Therefor the scope of delivery includes
adapters and SATA cables. A combination of SATA
devices and M.2 SSDs is also possible.
Low Profile Form Factor
By using the included low profile bracket, the PCI Express
card can be also installed into a Mini-PC.
Specification
• Connectors:
internal:
5 x 67 pin M.2 key B slot
1 x PCI Express x16, V3.0
• Chipset: JMicron JMB585
• Interface: SATA
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M
based on SATA
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• 6 x LED indicator
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
Item no. 90435
EAN: 4043619904358
Country of origin: China
Package: • Retail Box
System requirements
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• 5 x M.2 to SATA adapter
• 5 x SATA cable, length ca. 50 cm
• Screwdriver
• Mounting material
• User manual
Page 2

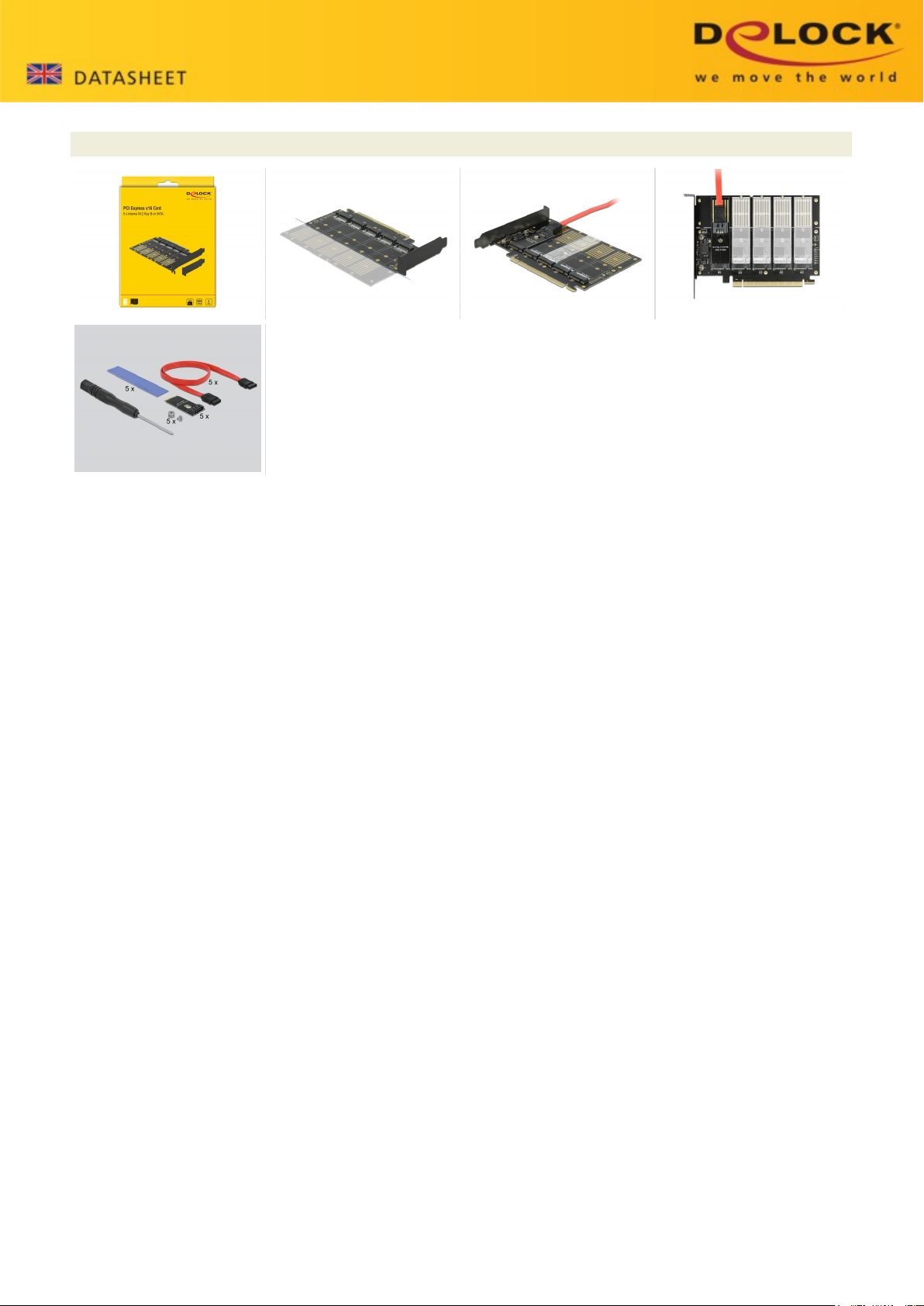

Images
Page 3
General
Function: bootable
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.3 or above
LED indicator: 6 x
Slot: SATA
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
Maximum height of the components on
the module:
Interface
Internal: 5 x SATA 6 Gb/s 7 pin plug
Technical characteristics
Chipset: JMicron JMB585
1.5 mm application of double-sided assembled modules supported
1 x PCI Express x16, V3.0
5 x 67 pin M.2 key B slot
