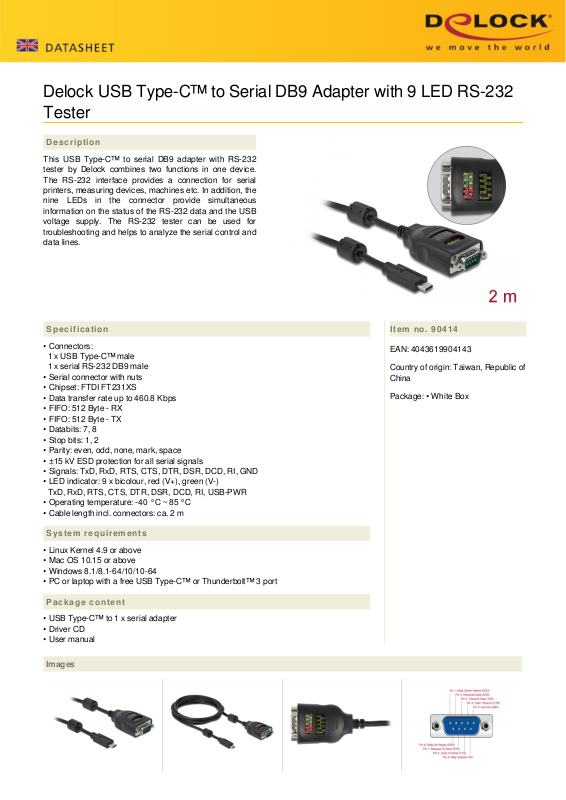

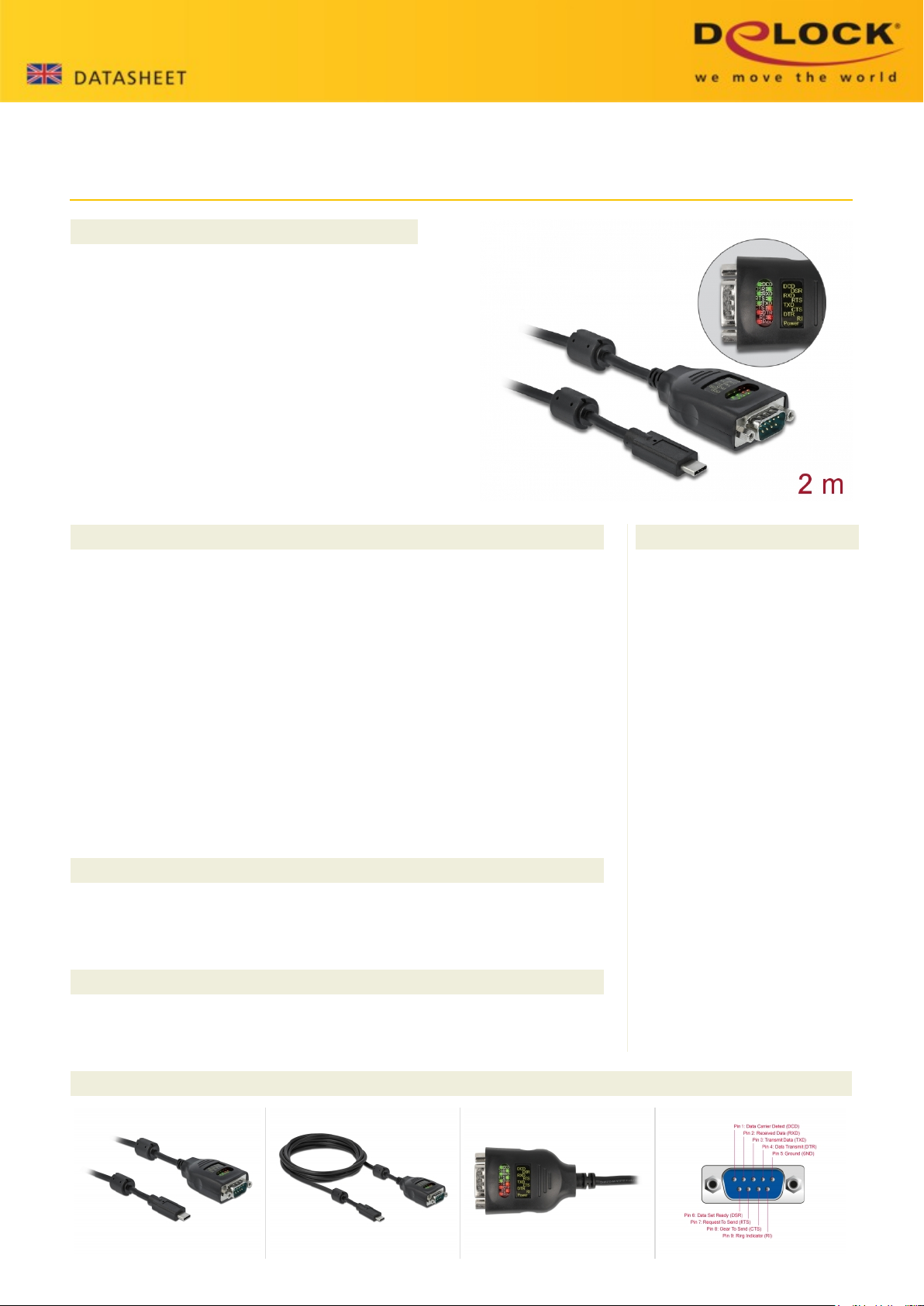

Delock USB Type-C™ to Serial DB9 Adapter with 9 LED RS-232
Tester
Description
This USB Type-C™ to serial DB9 adapter with RS-232
tester by Delock combines two functions in one device.
The RS-232 interface provides a connection for serial
printers, measuring devices, machines etc. In addition, the
nine LEDs in the connector provide simultaneous
information on the status of the RS-232 data and the USB
voltage supply. The RS-232 tester can be used for
troubleshooting and helps to analyze the serial control and
data lines.
Specification
• Connectors:
1 x USB Type-C™ male
1 x serial RS-232 DB9 male
• Serial connector with nuts
• Chipset: FTDI FT231XS
• Data transfer rate up to 460.8 Kbps
• FIFO: 512 Byte - RX
• FIFO: 512 Byte - TX
• Databits: 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• ±15 kV ESD protection for all serial signals
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• LED indicator: 9 x bicolour, red (V+), green (V-)
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, USB-PWR
• Operating temperature: -40 °C ~ 85 °C
• Cable length incl. connectors: ca. 2 m
Item no. 90414
EAN: 4043619904143
Country of origin: Taiwan, Republic of
China
Package: • White Box
System requirements
• Linux Kernel 4.9 or above
• Mac OS 10.15 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB Type-C™ to 1 x serial adapter
• Driver CD
• User manual
Images
Page 2
General
Function: Plug & Play
Specification: RS-232 (EIA / TIA)
USB Type-C™
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Mac OS 10.13 or above
Linux Kernel 2.6 or above
LED indicator: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, PWR
Protection: ESD (Electrostatic Discharge)
Interface
Output: 1 x serial RS-232 DB9 male
Input: 1 x USB Type-C™ male
Technical characteristics
Operating voltage: 5 V / 90 mA
Chipset: FTDI FT231XS
Data transfer rate: up to 460,8 Kbps
FIFO: 2 x 512 Byte
Operating temperature: -40 °C ~ 85 °C
Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Data transmission: asynchronous
full duplex
Bi-directional
UART: USB to serial UART
Data bits: 7, 8
Physical characteristics
Ferrite core: 2 x
Housing material: Plastic (ABS)
Weight: 26 g
Cable type: UL Recognized Component
UL AWM 2725 80°C 30V
Cable colour: black
Cable length incl. connector: 2 m
Pin finishing: gold-plated
Conductor gauge: 28 AWG data line
26 AWG power line
Shielding: double
Colour: black
Overvoltage protection: 15 kV
Thread type: 4-40#
Insulator: PVC
LED colour: red
green
Page 3
Cable diameter: 4.5 mm
