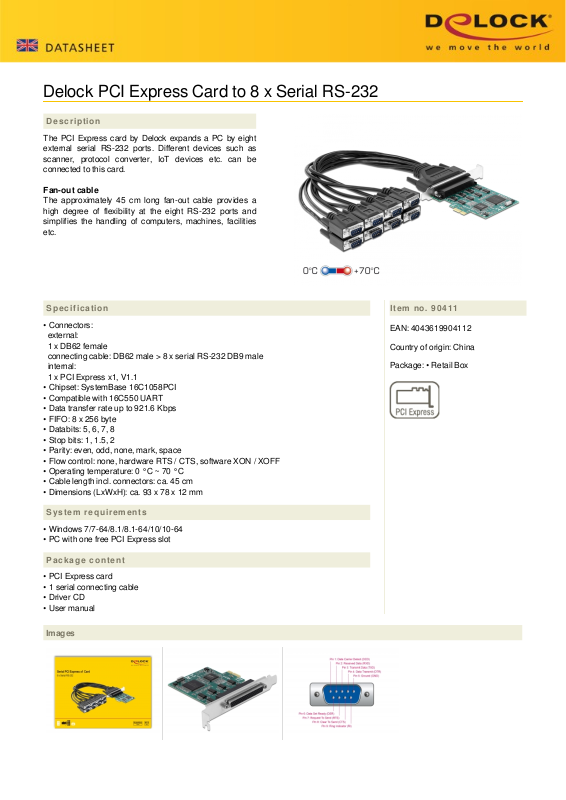

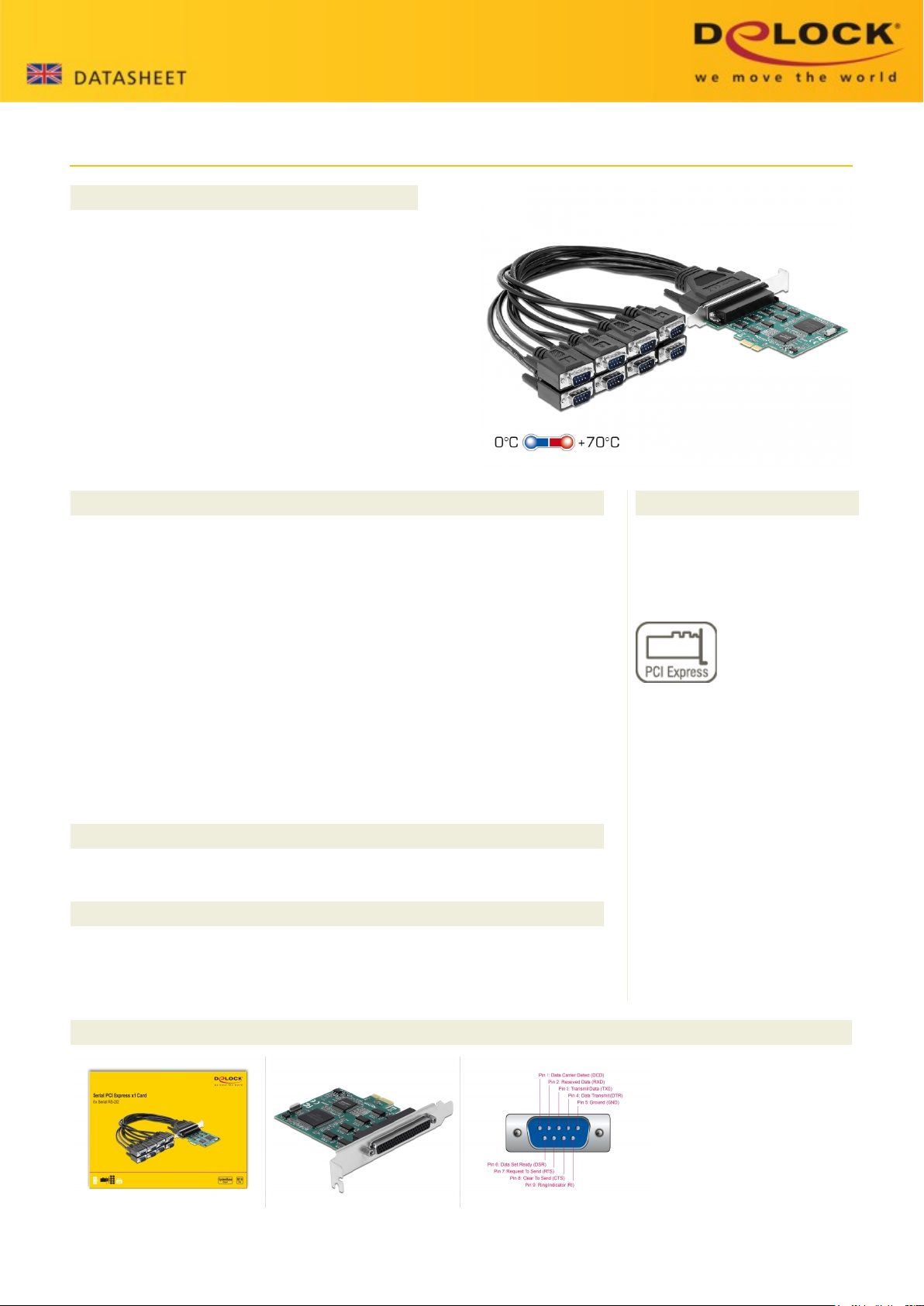

Delock PCI Express Card to 8 x Serial RS-232
Description
The PCI Express card by Delock expands a PC by eight
external serial RS-232 ports. Different devices such as
scanner, protocol converter, IoT devices etc. can be
connected to this card.
Fan-out cable
The approximately 45 cm long fan-out cable provides a
high degree of flexibility at the eight RS-232 ports and
simplifies the handling of computers, machines, facilities
etc.
Specification
• Connectors:
external:
1 x DB62 female
connecting cable: DB62 male > 8 x serial RS-232 DB9 male
internal:
1 x PCI Express x1, V1.1
• Chipset: SystemBase 16C1058PCI
• Compatible with 16C550 UART
• Data transfer rate up to 921.6 Kbps
• FIFO: 8 x 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Cable length incl. connectors: ca. 45 cm
• Dimensions (LxWxH): ca. 93 x 78 x 12 mm
Item no. 90411
EAN: 4043619904112
Country of origin: China
Package: • Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• 1 serial connecting cable
• Driver CD
• User manual
Images
Page 2
General
Specification: RS-232 (EIA / TIA)
PCIe 1.1
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: PCIe
Interface
External: 8 x Serial RS-232 DB9 Plug
1 x Sub-D 62 Pin
Internal: 1 x PCI Express x1, V1.1
Technical characteristics
Chipset: SystemBase 16C1058PCI
Data transfer rate: up to 921.6 Kbps
FIFO: 8 x 256 Byte
Operating temperature: 0 °C ~ 70 °C
Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Data transmission: asynchronous
Bi-directional
full duplex
UART: 16C550
Support: Modbus
Data bits: 5, 6, 7, 8
Physical characteristics
Cable type: AWM Style 2464 30 AWG 80 °C 300 V VW-1
Cable colour: black
Cable length incl. connector: 45 cm
Screw type: #4-40 UNC
Material: PVC
Colour: green
