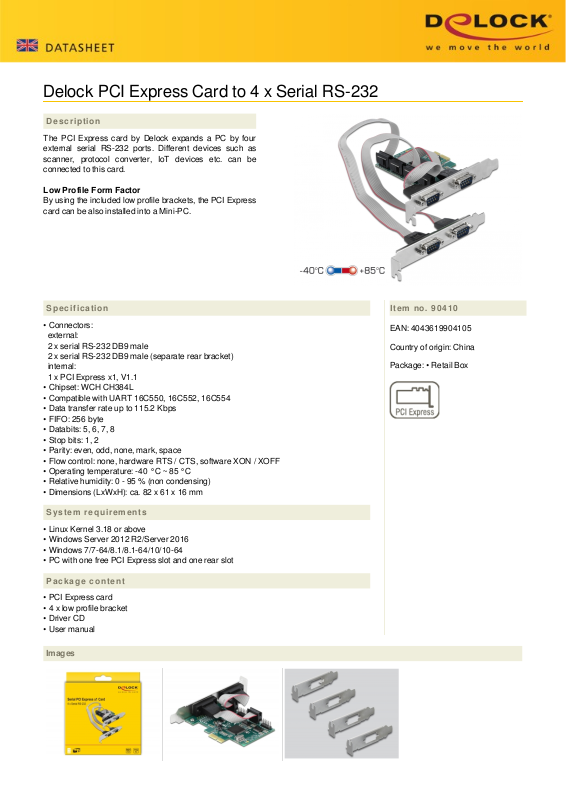

Delock PCI Express Card to 4 x Serial RS-232
Description
The PCI Express card by Delock expands a PC by four
external serial RS-232 ports. Different devices such as
scanner, protocol converter, IoT devices etc. can be
connected to this card.
Low Profile Form Factor
By using the included low profile brackets, the PCI Express
card can be also installed into a Mini-PC.
Specification
• Connectors:
external:
2 x serial RS-232 DB9 male
2 x serial RS-232 DB9 male (separate rear bracket)
internal:
1 x PCI Express x1, V1.1
• Chipset: WCH CH384L
• Compatible with UART 16C550, 16C552, 16C554
• Data transfer rate up to 115.2 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -40 °C ~ 85 °C
• Relative humidity: 0 - 95 % (non condensing)
• Dimensions (LxWxH): ca. 82 x 61 x 16 mm
Item no. 90410
EAN: 4043619904105
Country of origin: China
Package: • Retail Box
System requirements
• Linux Kernel 3.18 or above
• Windows Server 2012 R2/Server 2016
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot and one rear slot
Package content
• PCI Express card
• 4 x low profile bracket
• Driver CD
• User manual
Images
Page 2
General
Form factor: Low Profile
Specification: RS-232 (EIA / TIA)
PCIe 1.1
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Windows Server 2012 R2
Windows Server 2016
Linux Kernel 3.18 or above
Slot: PCIe
Interface
External: 4 x serial RS-232 DB9 male
Internal: 1 x PCI Express x1, V1.1
Technical characteristics
Chipset: WCH CH382L
Data transfer rate: 4 x 115,2 Kb/s
FIFO: 4 x 256 Byte
Operating temperature: -40 °C ~ 85 °C
UART: 16C550
16C552
16C554
Physical characteristics
Slot bracket: low profile
standard
Colour: green
