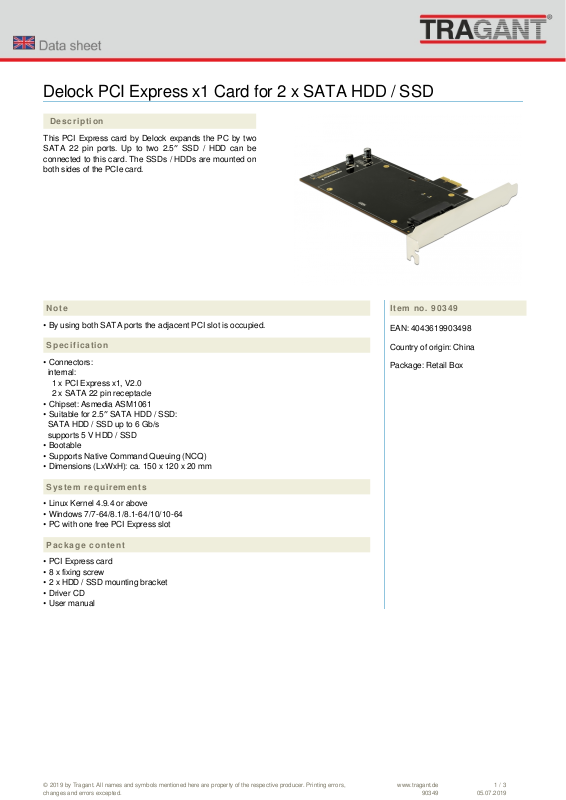

Delock PCI Express x1 Card for 2 x SATA HDD / SSD
Description
This PCI Express card by Delock expands the PC by two
SATA 22 pin ports. Up to two 2.5″ SSD / HDD can be
connected to this card. The SSDs / HDDs are mounted on
both sides of the PCIe card.
Note
• By using both SATA ports the adjacent PCI slot is occupied.
Specification
• Connectors:
internal:
1 x PCI Express x1, V2.0
2 x SATA 22 pin receptacle
• Chipset: Asmedia ASM1061
• Suitable for 2.5″ SATA HDD / SSD:
SATA HDD / SSD up to 6 Gb/s
supports 5 V HDD / SSD
• Bootable
• Supports Native Command Queuing (NCQ)
• Dimensions (LxWxH): ca. 150 x 120 x 20 mm
Item no. 90349
EAN: 4043619903498
Country of origin: China
Package: Retail Box
System requirements
• Linux Kernel 4.9.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• 8 x fixing screw
• 2 x HDD / SSD mounting bracket
• Driver CD
• User manual
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
90349
1 / 3
05.07.2019
Page 2

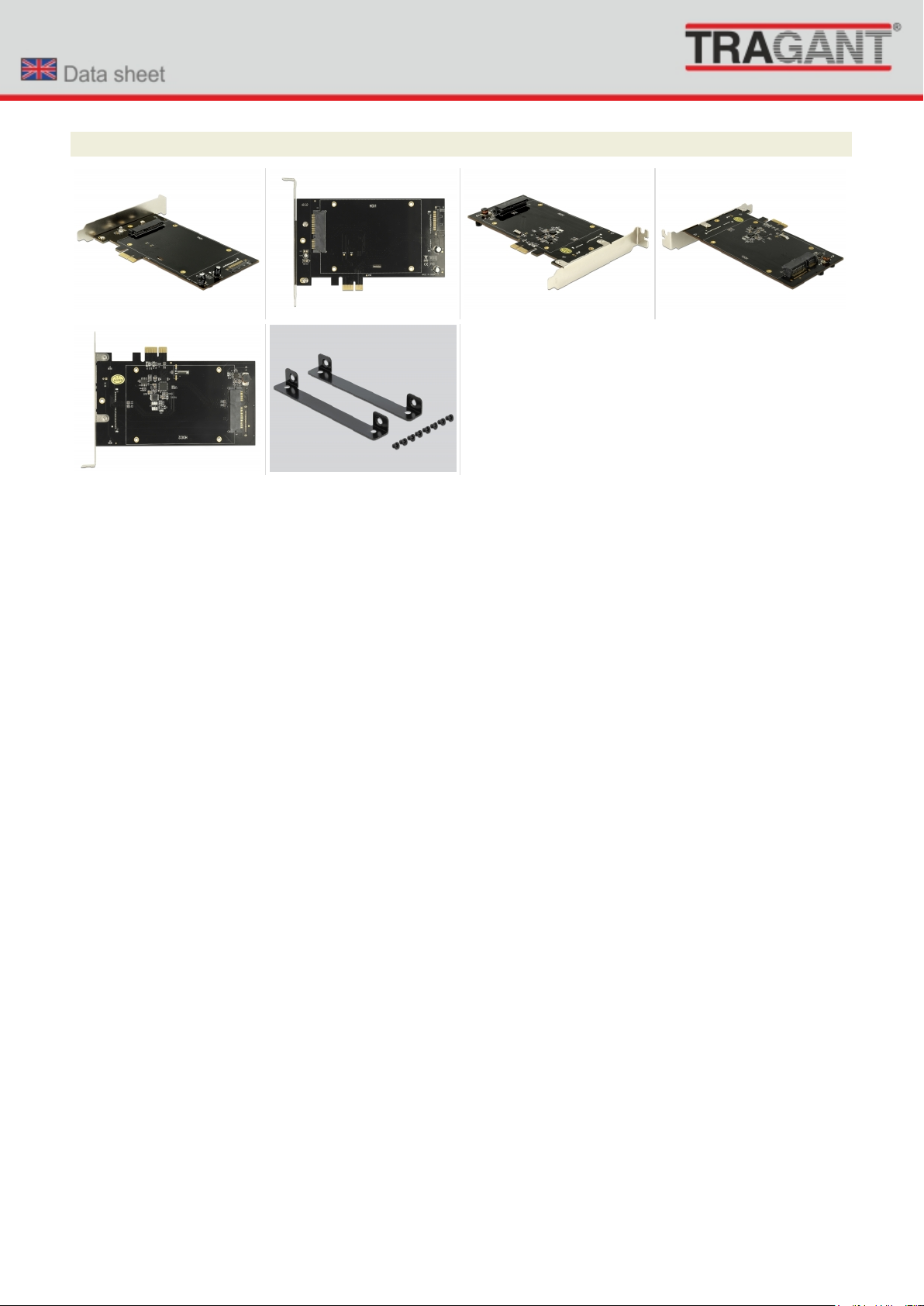

Images
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
90349
2 / 3
05.07.2019
Page 3
General
Form factor: standard
Standard
Function: standard
Plug & Play
bootable
Suitable for data medium: standard
SSD or HDD
Supported operating system: standard
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 4.9.4 or above
Slot: standard
PCIe
Interface
Internal: standard
1 x PCI Express x1, V2.0
2 x SATA 22 Pin Buchse
Technical characteristics
Data transfer rate: standard
SATA up to 6 Gb/s
