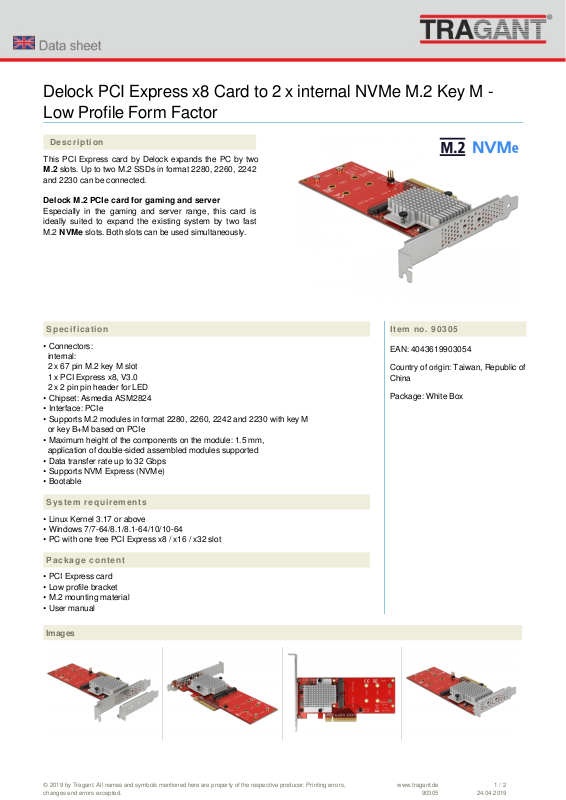

Delock PCI Express x8 Card to 2 x internal NVMe M.2 Key M Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC by two
M.2 slots. Up to two M.2 SSDs in format 2280, 2260, 2242
and 2230 can be connected.
Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is
ideally suited to expand the existing system by two fast
M.2 NVMe slots. Both slots can be used simultaneously.
Specification
• Connectors:
internal:
2 x 67 pin M.2 key M slot
1 x PCI Express x8, V3.0
2 x 2 pin pin header for LED
• Chipset: Asmedia ASM2824
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable
Item no. 90305
EAN: 4043619903054
Country of origin: Taiwan, Republic of
China
Package: White Box
System requirements
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• M.2 mounting material
• User manual
Images
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
90305
1 / 2
24.04.2019
Page 2
General
Function: standard
NVM Express (NVMe)
bootable
Supported operating system: standard
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.17 or above
Slot: standard
PCIe
Supported module: standard
M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
Internal: standard
Technical characteristics
Chipset: standard
Physical characteristics
Slot bracket: standard
standard
1.5 mm application of double-sided assembled modules supported
2 x 67 pin M.2 key M slot
1 x PCI Express x8, V3.0
Asmedia ASM2824
standard
low profile
