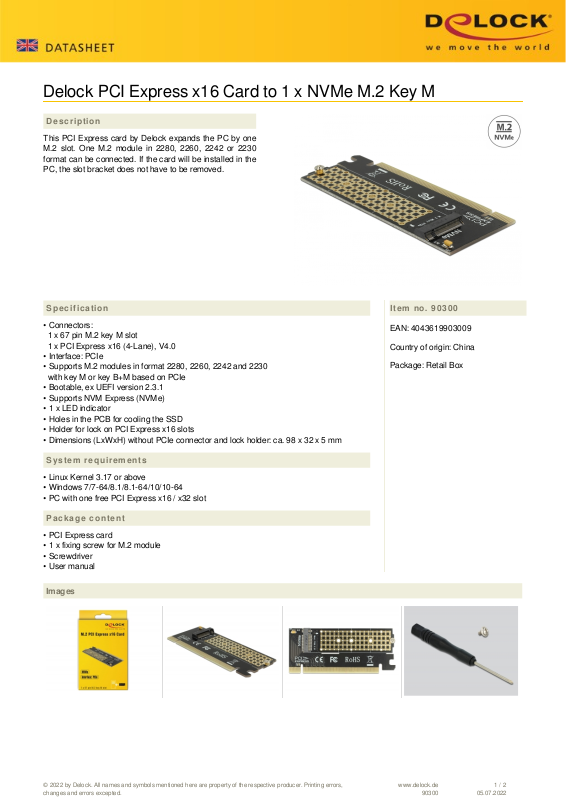

Page 1
Delock PCI Express x16 Card to 1 x NVMe M.2 Key M
Description
This PCI Express card by Delock expands the PC by one
M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230
format can be connected. If the card will be installed in the
PC, the slot bracket does not have to be removed.
Specification
• Connectors:
1 x 67 pin M.2 key M slot
1 x PCI Express x16 (4-Lane), V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230
with key M or key B+M based on PCIe
• Bootable, ex UEFI version 2.3.1
• Supports NVM Express (NVMe)
• 1 x LED indicator
• Holes in the PCB for cooling the SSD
• Holder for lock on PCI Express x16 slots
• Dimensions (LxWxH) without PCIe connector and lock holder: ca. 98 x 32 x 5 mm
Item no. 90300
EAN: 4043619903009
Country of origin: China
Package: Retail Box
System requirements
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card
• 1 x fixing screw for M.2 module
• Screwdriver
• User manual
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90300
1 / 2
05.07.2022
Page 2
General
Function: NVM Express (NVMe)
Supported operating system: Linux Kernel 3.17 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Slot: PCIe
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Interface
Internal: 1 x 67 pin M.2 key M slot
1 x PCI Express x16, V4.0
Powered by TCPDF (www.tcpdf.org)
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90300
2 / 2
05.07.2022
