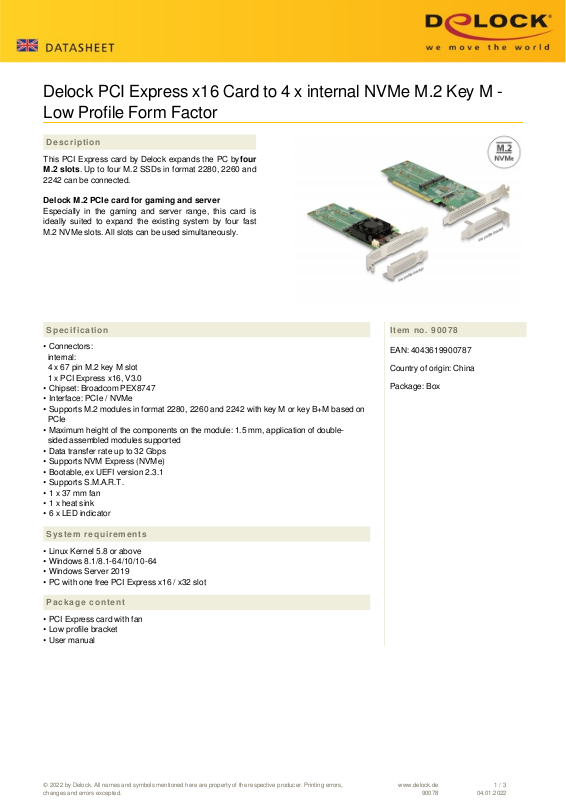

Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC byfour
M.2 slots. Up to four M.2 SSDs in format 2280, 2260 and
2242 can be connected.
Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is
ideally suited to expand the existing system by four fast
M.2 NVMe slots. All slots can be used simultaneously.
Specification
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Chipset: Broadcom PEX8747
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on
PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• 1 x 37 mm fan
• 1 x heat sink
• 6 x LED indicator
Item no. 90078
EAN: 4043619900787
Country of origin: China
Package: Box
System requirements
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card with fan
• Low profile bracket
• User manual
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90078
1 / 3
04.01.2022
Page 2

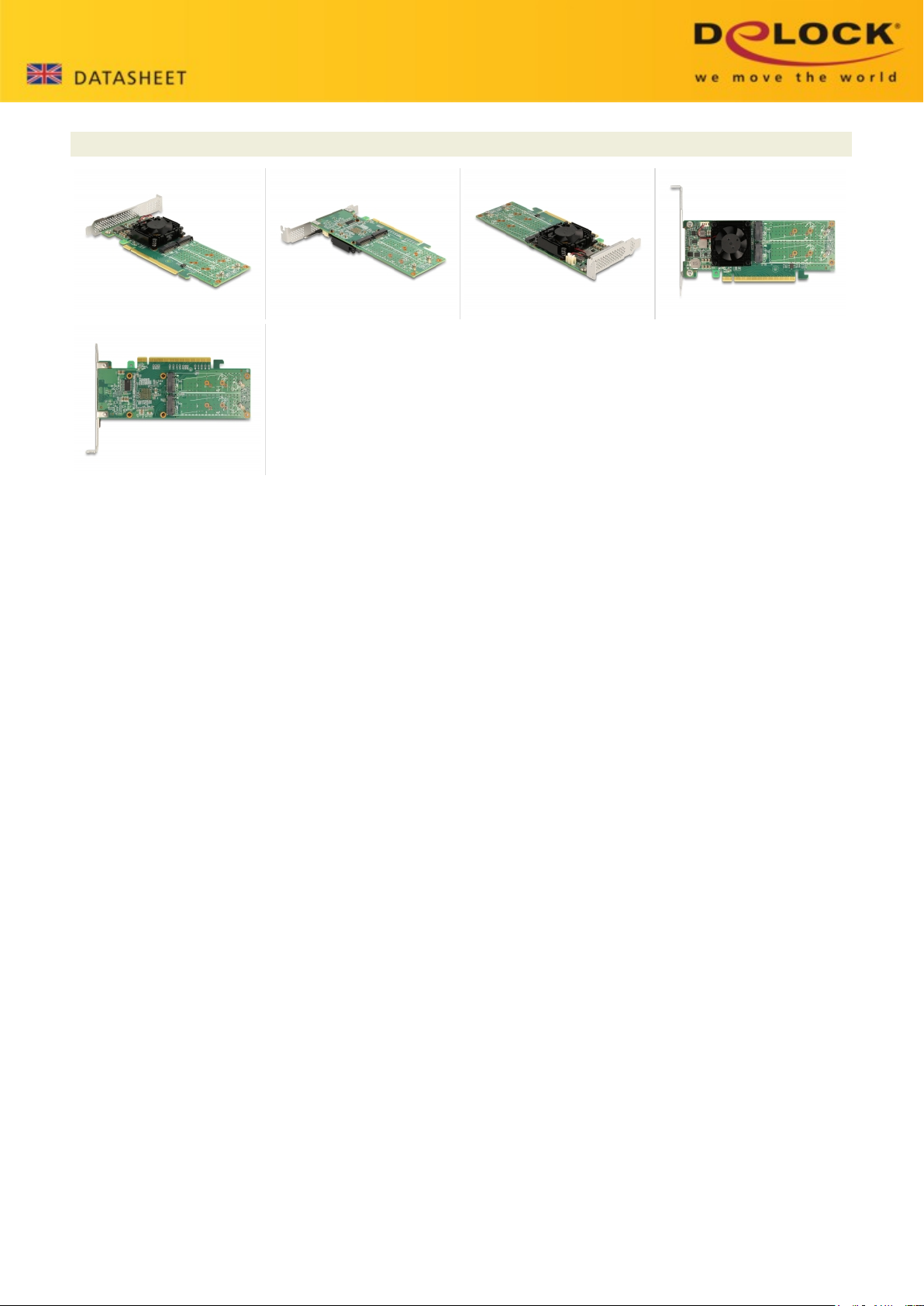

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90078
2 / 3
04.01.2022
Page 3
General
Form factor: Low Profile
Function: Bootable, ex UEFI 2.3.1
Supported operating system: Linux Kernel 5.8.0 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows Server 2019
LED indicator: 6 x
Slot: PCIe
Supported module: M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
Internal: 4 x 67 pin M.2 key M slot
Technical characteristics
Chipset: Broadcom PEX8747
1.5 mm application of double-sided assembled modules supported
1 x PCI Express x16, V3.0
