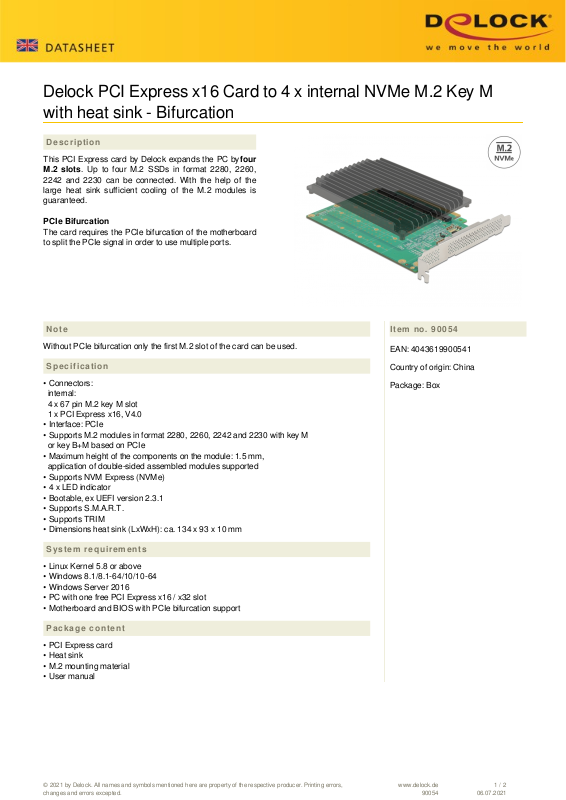

Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M
with heat sink - Bifurcation
Description
This PCI Express card by Delock expands the PC byfour
M.2 slots. Up to four M.2 SSDs in format 2280, 2260,
2242 and 2230 can be connected. With the help of the
large heat sink sufficient cooling of the M.2 modules is
guaranteed.
PCIe Bifurcation
The card requires the PCIe bifurcation of the motherboard
to split the PCIe signal in order to use multiple ports.
Note
Without PCIe bifurcation only the first M.2 slot of the card can be used.
Specification
• Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• Dimensions heat sink (LxWxH): ca. 134 x 93 x 10 mm
Item no. 90054
EAN: 4043619900541
Country of origin: China
Package: Box
System requirements
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x16 / x32 slot
• Motherboard and BIOS with PCIe bifurcation support
Package content
• PCI Express card
• Heat sink
• M.2 mounting material
• User manual
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90054
1 / 2
06.07.2021
Page 2

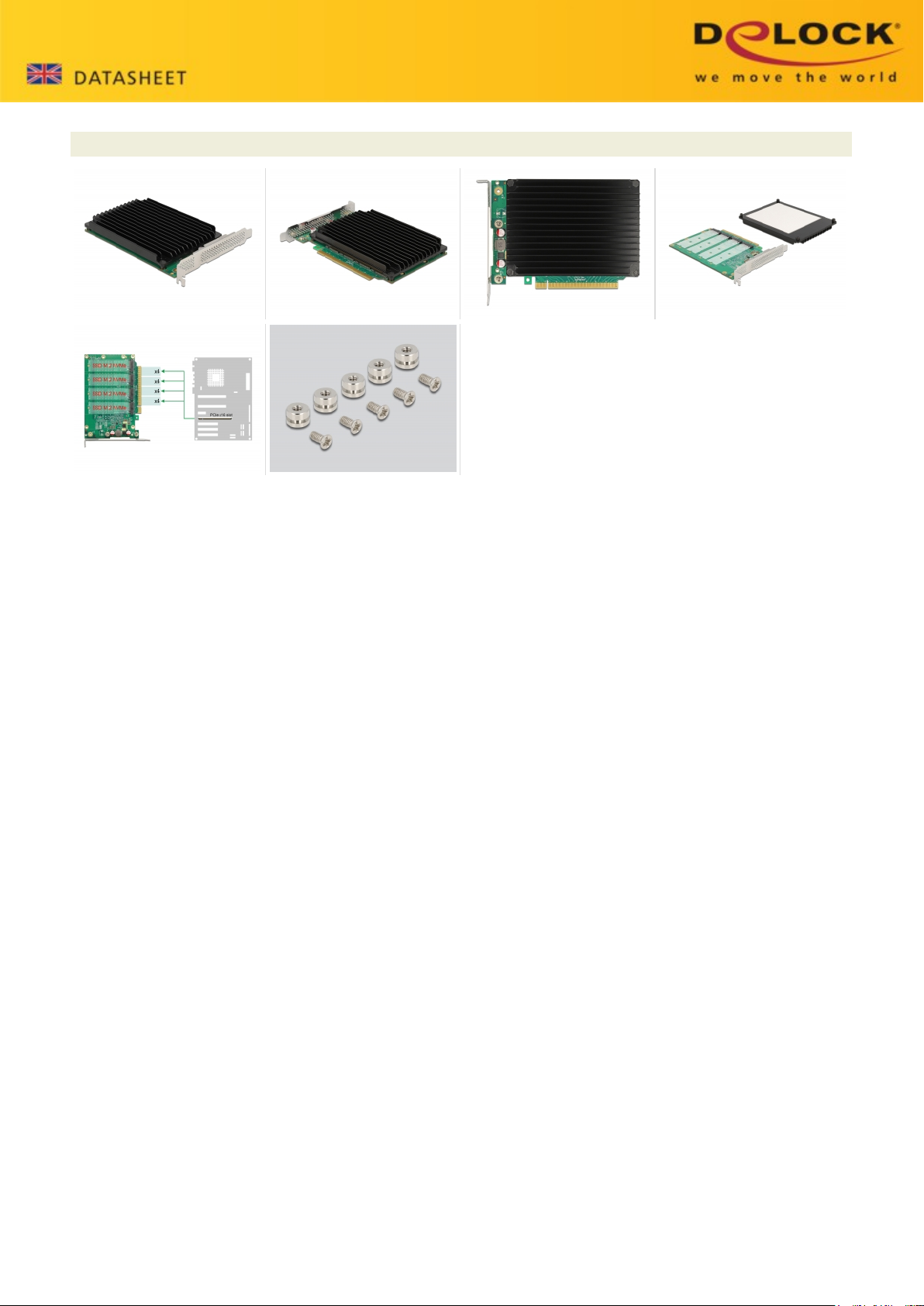

Images
