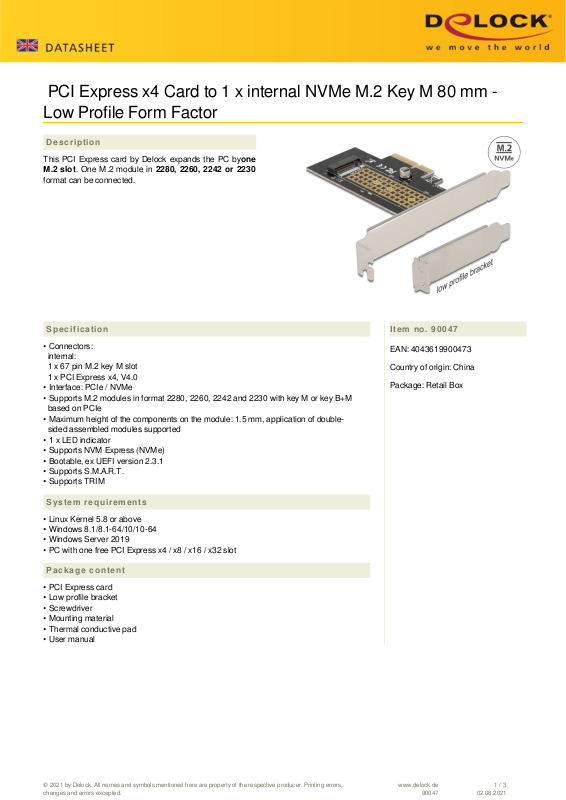

PCI Express x4 Card to 1 x internal NVMe M.2 Key M 80 mm Low Profile Form Factor
Description
This PCI Express card by Delock expands the PC byone
M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230
format can be connected.
Specification
• Connectors:
internal:
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• 1 x LED indicator
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
Item no. 90047
EAN: 4043619900473
Country of origin: China
Package: Retail Box
System requirements
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• Screwdriver
• Mounting material
• Thermal conductive pad
• User manual
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90047
1 / 3
02.08.2021
Page 2

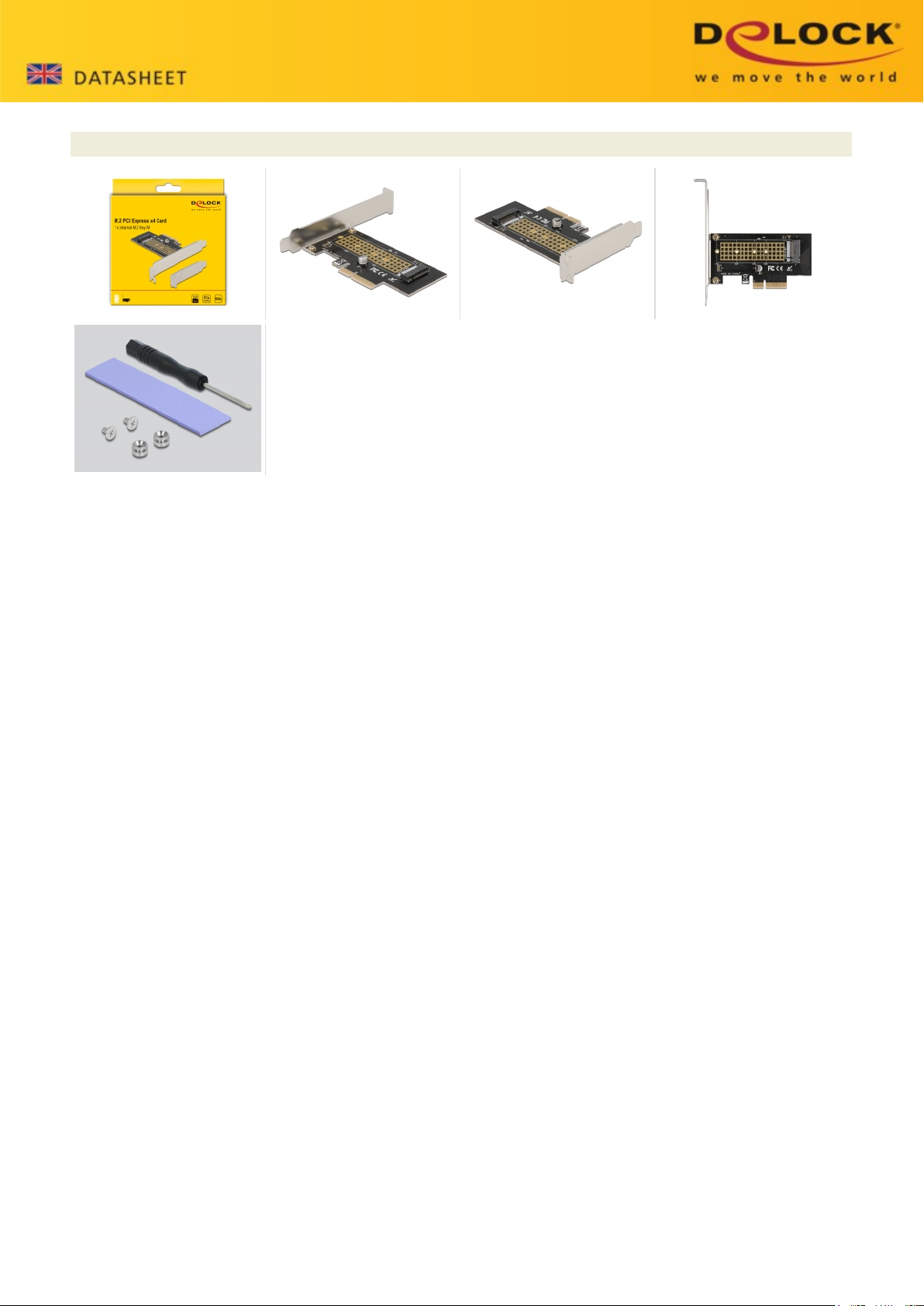

Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
90047
2 / 3
02.08.2021
Page 3
General
Form factor: Low Profile
Function: NVM Express (NVMe)
bootable
Supported operating system: Linux Kernel 5.8.0 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows Server 2019
LED indicator: 1 x
Slot: PCIe
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
Internal: 1 x 67 pin M.2 key M slot
1.5 mm application of double-sided assembled modules supported
1 x PCI Express x4, V4.0
