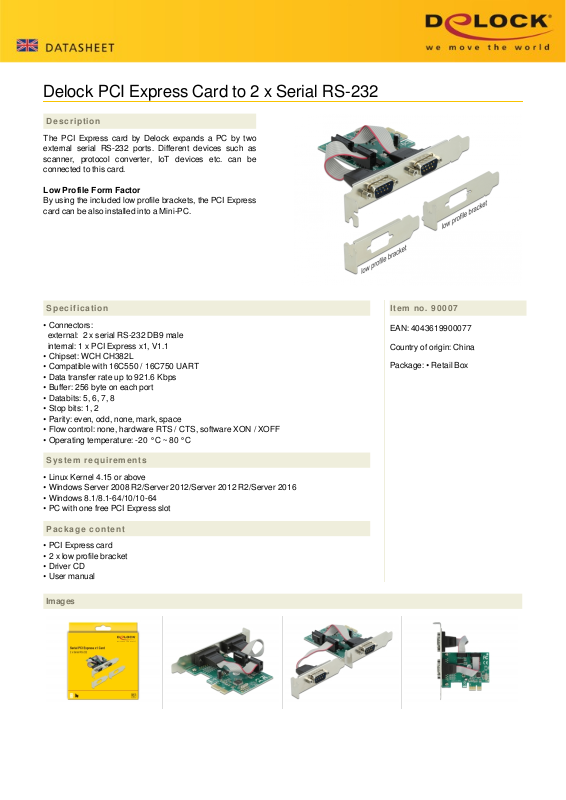

Page 1
Delock PCI Express Card to 2 x Serial RS-232
Description
The PCI Express card by Delock expands a PC by two
external serial RS-232 ports. Different devices such as
scanner, protocol converter, IoT devices etc. can be
connected to this card.
Low Profile Form Factor
By using the included low profile brackets, the PCI Express
card can be also installed into a Mini-PC.
Specification
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V1.1
• Chipset: WCH CH382L
• Compatible with 16C550 / 16C750 UART
• Data transfer rate up to 921.6 Kbps
• Buffer: 256 byte on each port
• Databits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: -20 °C ~ 80 °C
Item no. 90007
EAN: 4043619900077
Country of origin: China
Package: • Retail Box
System requirements
• Linux Kernel 4.15 or above
• Windows Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
Images
Page 2
General
Specification: RS-232 (EIA / TIA)
PCIe 1.1
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 4.15 or above
Slot: PCIe
Interface
External: 2 x serial RS-232 DB9 male
Internal: 1 x PCI Express x1, V1.1
Technical characteristics
Chipset: WCH CH382L
Data transfer rate: 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400,
57600, 115200, 230400, 460800, 921600
UART: 16C550
16C750
Physical characteristics
Slot bracket: low profile
standard
Colour: green
