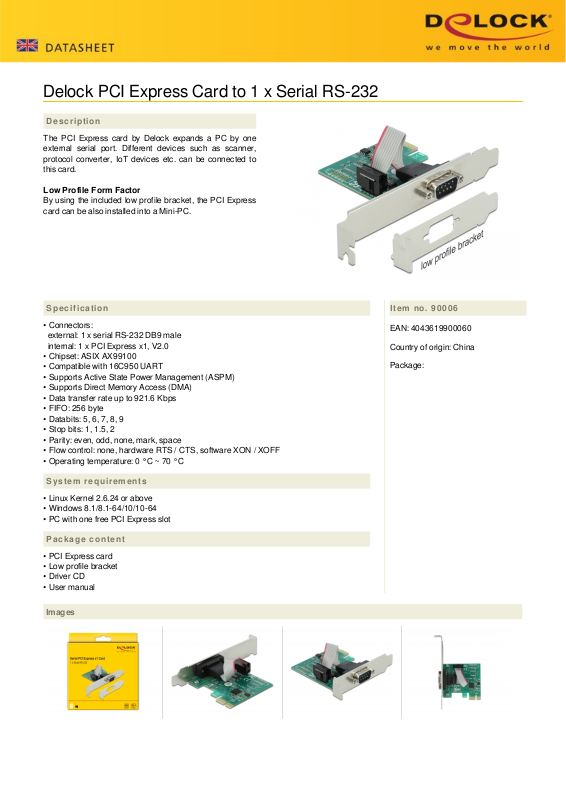

Delock PCI Express Card to 1 x Serial RS-232
Description
The PCI Express card by Delock expands a PC by one
external serial port. Different devices such as scanner,
protocol converter, IoT devices etc. can be connected to
this card.
Low Profile Form Factor
By using the included low profile bracket, the PCI Express
card can be also installed into a Mini-PC.
Specification
• Connectors:
external: 1 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Data transfer rate up to 921.6 Kbps
• FIFO: 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
Item no. 90006
EAN: 4043619900060
Country of origin: China
Package:
System requirements
• Linux Kernel 2.6.24 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
Images
Page 2
General
Form factor: Low Profile
Specification: PCI Express 2.0
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: PCIe
Interface
External: 1 x serial RS-232 DB9 male
Internal: 1 x PCI Express x1, V2.0
Technical characteristics
Chipset: ASIX AX99100
Data transfer rate: 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400,
57600, 115200, 230400, 460800, 921600
FIFO: 1 x 256 Byte
UART: 16C950
Physical characteristics
Slot bracket: low profile
standard
Colour: green
