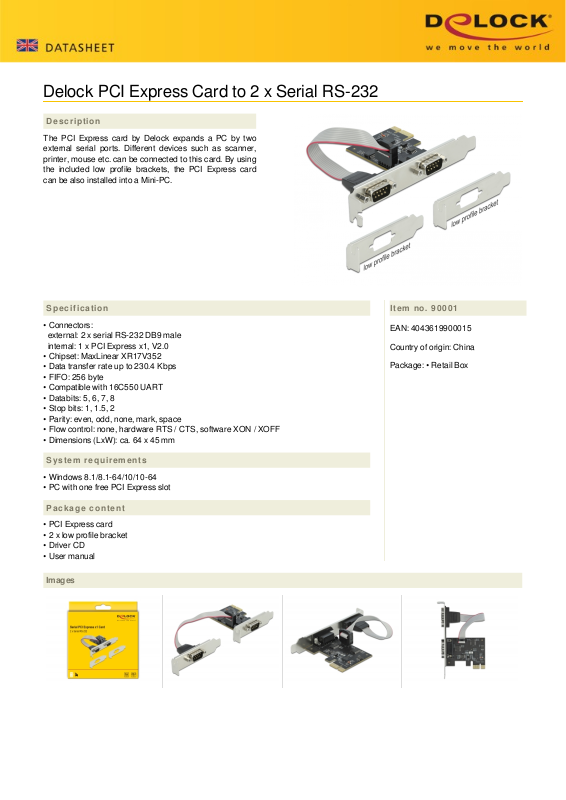

Delock PCI Express Card to 2 x Serial RS-232
Description
The PCI Express card by Delock expands a PC by two
external serial ports. Different devices such as scanner,
printer, mouse etc. can be connected to this card. By using
the included low profile brackets, the PCI Express card
can be also installed into a Mini-PC.
Specification
• Connectors:
external: 2 x serial RS-232 DB9 male
internal: 1 x PCI Express x1, V2.0
• Chipset: MaxLinear XR17V352
• Data transfer rate up to 230.4 Kbps
• FIFO: 256 byte
• Compatible with 16C550 UART
• Databits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Dimensions (LxW): ca. 64 x 45 mm
Item no. 90001
EAN: 4043619900015
Country of origin: China
Package: • Retail Box
System requirements
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• 2 x low profile bracket
• Driver CD
• User manual
Images
Page 2
General
Form factor: Low Profile
Specification: RS-232 (EIA / TIA)
PCI Express 2.0
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: PCIe
Interface
Connector 1: 1 x PCI Express x1
Connector 2: 2 x Serial RS-232 DB9 male
Technical characteristics
Chipset: Exar 17V352
Data transfer rate: up to 230.4 Kb/s
FIFO: 1 x 256 Byte
Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
Data transmission: asynchronous
Bi-directional
Half duplex
full duplex
UART: 16C550
Data bits: 5, 6, 7, 8
Physical characteristics
Screw type: #4-40 UNC
Slot bracket: low profile
standard
Width: 45 mm
Height: 64 mm
Colour: black
