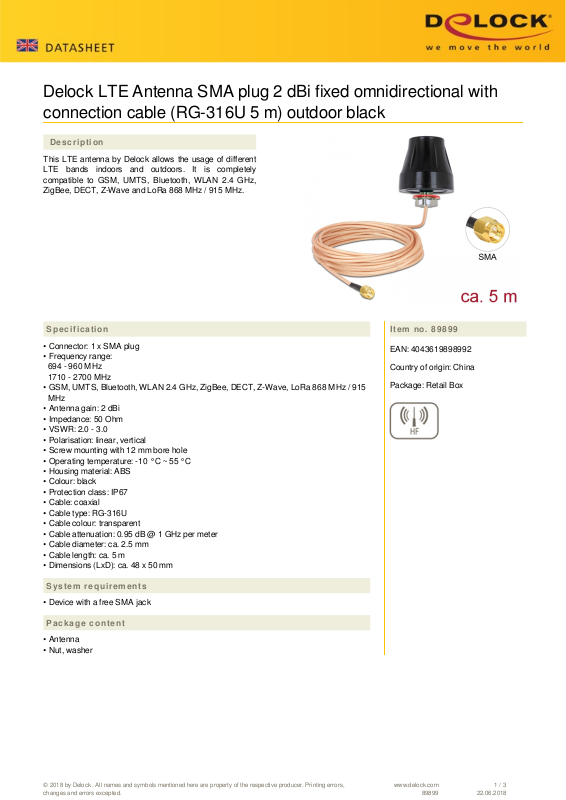

Delock LTE Antenna SMA plug 2 dBi fixed omnidirectional with
connection cable (RG-316U 5 m) outdoor black
Description
This LTE antenna by Delock allows the usage of different
LTE bands indoors and outdoors. It is completely
compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz,
ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x SMA plug
• Frequency range:
694 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 MHz / 915
MHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0 - 3.0
• Polarisation: linear, vertical
• Screw mounting with 12 mm bore hole
• Operating temperature: -10 °C ~ 55 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable: coaxial
• Cable type: RG-316U
• Cable colour: transparent
• Cable attenuation: 0.95 dB @ 1 GHz per meter
• Cable diameter: ca. 2.5 mm
• Cable length: ca. 5 m
• Dimensions (LxD): ca. 48 x 50 mm
Item no. 89899
EAN: 4043619898992
Country of origin: China
Package: Retail Box
System requirements
• Device with a free SMA jack
Package content
• Antenna
• Nut, washer
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
89899
1 / 3
22.06.2018
Page 2
Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
89899
2 / 3
22.06.2018
Page 3
General
Mounting type: design mounting
Protection category: IP67
Interface
connector: 1 x SMA
Technical characteristics
Frequency range: 1710 - 2700 MHz
694 - 960 MHz
Antenna gain: 2 dBi
Impedance: 50 Ω
Operating temperature: -10 °C ~ 55 °C
Polarisation: linear vertical
VSWR: 2.0 - 3.0
Physical characteristics
Housing material: ABS UV protected
Cable category: coaxial
Cable type: RG-316U
Cable attenuation: 0,95 dB @ 1 GHz pro Meter
Cable colour: transparent
Cable length: 5 m (incl. connectors)
Cable diameter: 2.5 mm
Diameter: 50 mm
Length: 48 mm
