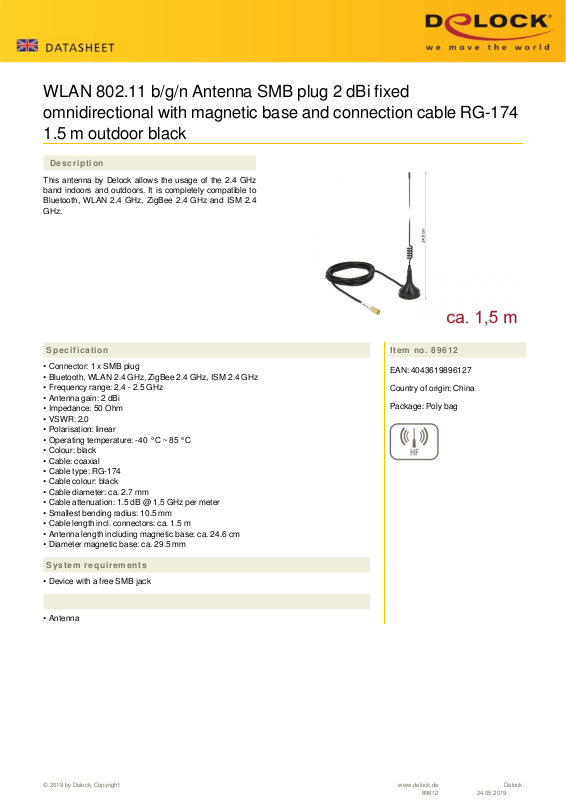

WLAN 802.11 b/g/n Antenna SMB plug 2 dBi fixed
omnidirectional with magnetic base and connection cable RG-174
1.5 m outdoor black
Description
This antenna by Delock allows the usage of the 2.4 GHz
band indoors and outdoors. It is completely compatible to
Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz and ISM 2.4
GHz.
Specification
• Connector: 1 x SMB plug
• Bluetooth, WLAN 2.4 GHz, ZigBee 2.4 GHz, ISM 2.4 GHz
• Frequency range: 2.4 - 2.5 GHz
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable diameter: ca. 2.7 mm
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Smallest bending radius: 10.5 mm
• Cable length incl. connectors: ca. 1.5 m
• Antenna length including magnetic base: ca. 24.6 cm
• Diameter magnetic base: ca. 29.5 mm
Item no. 89612
EAN: 4043619896127
Country of origin: China
Package: Poly bag
System requirements
• Device with a free SMB jack
• Antenna
© 2019 by Delock. Copyright www.delock.de
89612
24.05.2019
Delock
Page 2

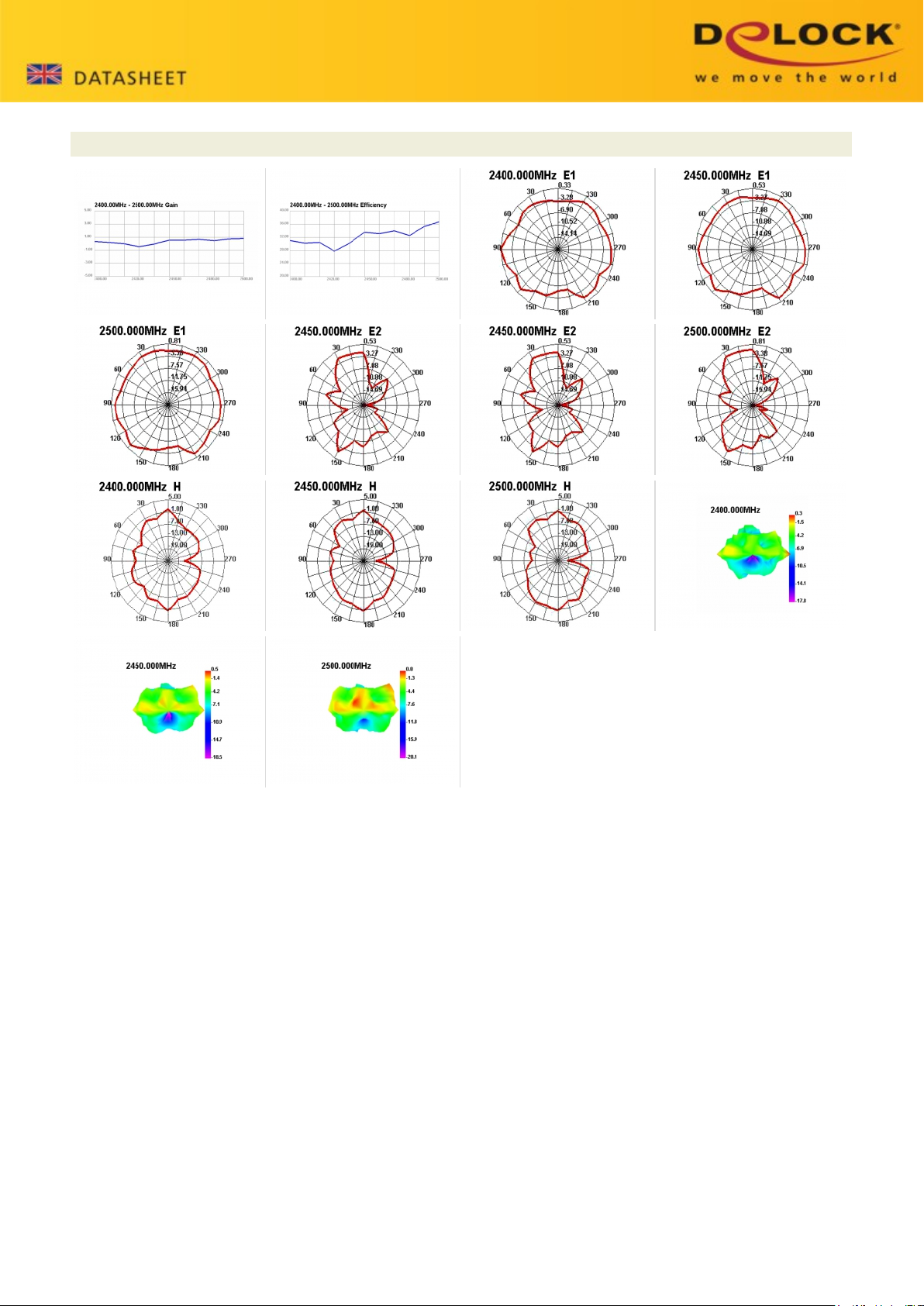

Images
© 2019 by Delock. Copyright www.delock.de
89612
24.05.2019
Delock
Page 3
General
Mounting type: standard
magnet
Suitable for outdoor: standard
yes
Interface
connector: standard
SMB plug
Technical characteristics
Frequency range: standard
2.400 - 2.500 GHz
Antenna gain: standard
2 dBi
Impedance: standard
50 Ω
Operating temperature: standard
-40 °C ~ 85 °C
Polarisation: standard
linear
VSWR: standard
2.0
Physical characteristics
Antenna type: standard
omnidirectional
Antenna length incl. magnetic base: standard
24.6 cm
Diameter magnetical base: standard
29.5 mm
Cable category: standard
coaxial
Cable type: standard
RG-174
Cable attenuation: standard
1.5 dB @ 1.5 GHz per meter
Cable colour: standard
black
Cable length incl. connector: standard
1.5 m
Smallest bending radius: standard
10,5 mm
Colour: standard
black
