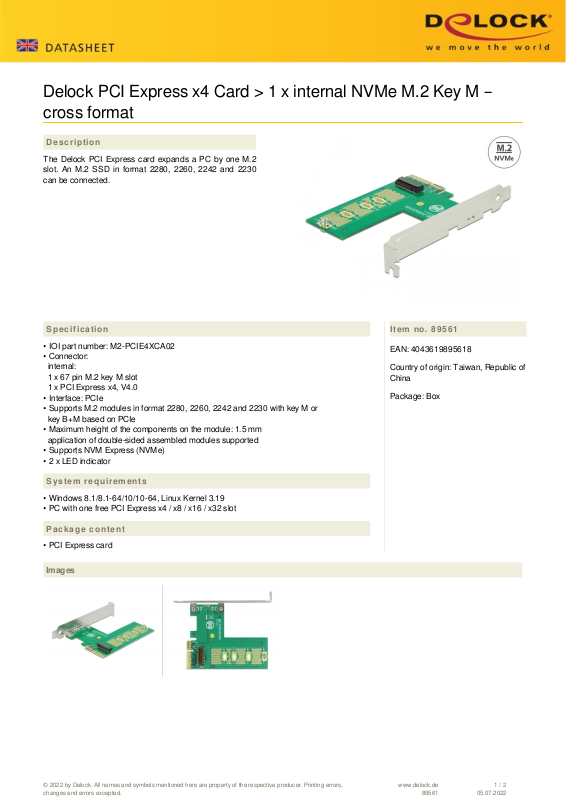

Page 1
Delock PCI Express x4 Card > 1 x internal NVMe M.2 Key M –
cross format
Description
The Delock PCI Express card expands a PC by one M.2
slot. An M.2 SSD in format 2280, 2260, 2242 and 2230
can be connected.
Specification
• IOI part number: M2-PCIE4XCA02
• Connector:
internal:
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V4.0
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 2 x LED indicator
Item no. 89561
EAN: 4043619895618
Country of origin: Taiwan, Republic of
China
Package: Box
System requirements
• Windows 8.1/8.1-64/10/10-64, Linux Kernel 3.19
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
89561
1 / 2
05.07.2022
Page 2
General
Supported operating system: Linux Kernel 3.19 or above
Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Slot: PCIe
Supported module: M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on PCIe
Maximum height of the components on
1.5 mm application of double-sided assembled modules supported
the module:
Interface
Internal: 1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
Technical characteristics
Data transfer rate: up to 39 Gbps
