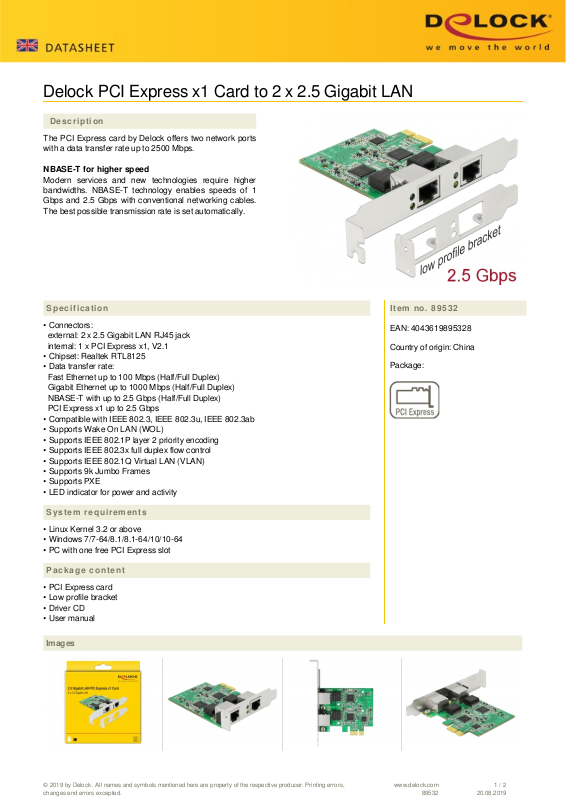

Delock PCI Express x1 Card to 2 x 2.5 Gigabit LAN
Description
The PCI Express card by Delock offers two network ports
with a data transfer rate up to 2500 Mbps.
NBASE-T for higher speed
Modern services and new technologies require higher
bandwidths. NBASE-T technology enables speeds of 1
Gbps and 2.5 Gbps with conventional networking cables.
The best possible transmission rate is set automatically.
Specification
• Connectors:
external: 2 x 2.5 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x1, V2.1
• Chipset: Realtek RTL8125
• Data transfer rate:
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
PCI Express x1 up to 2.5 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 9k Jumbo Frames
• Supports PXE
• LED indicator for power and activity
Item no. 89532
EAN: 4043619895328
Country of origin: China
Package:
System requirements
• Linux Kernel 3.2 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
Images
© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
89532
1 / 2
20.08.2019
Page 2
General
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.2 or above
LED indicator: power and activity
Interface
External: 2 x Gigabit LAN RJ45 jack
Internal: 1 x PCI Express x1, V2.1
Technical characteristics
Chipset: Realtek RTL8125
Data transfer rate: Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
Gigabit Ethernet up to 2.5 Gbps
Physical characteristics
Slot bracket: low profile
standard
