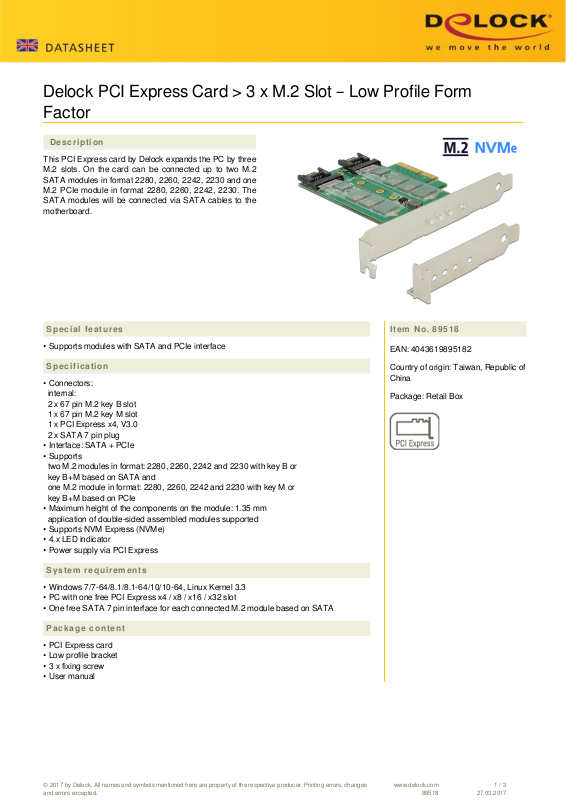

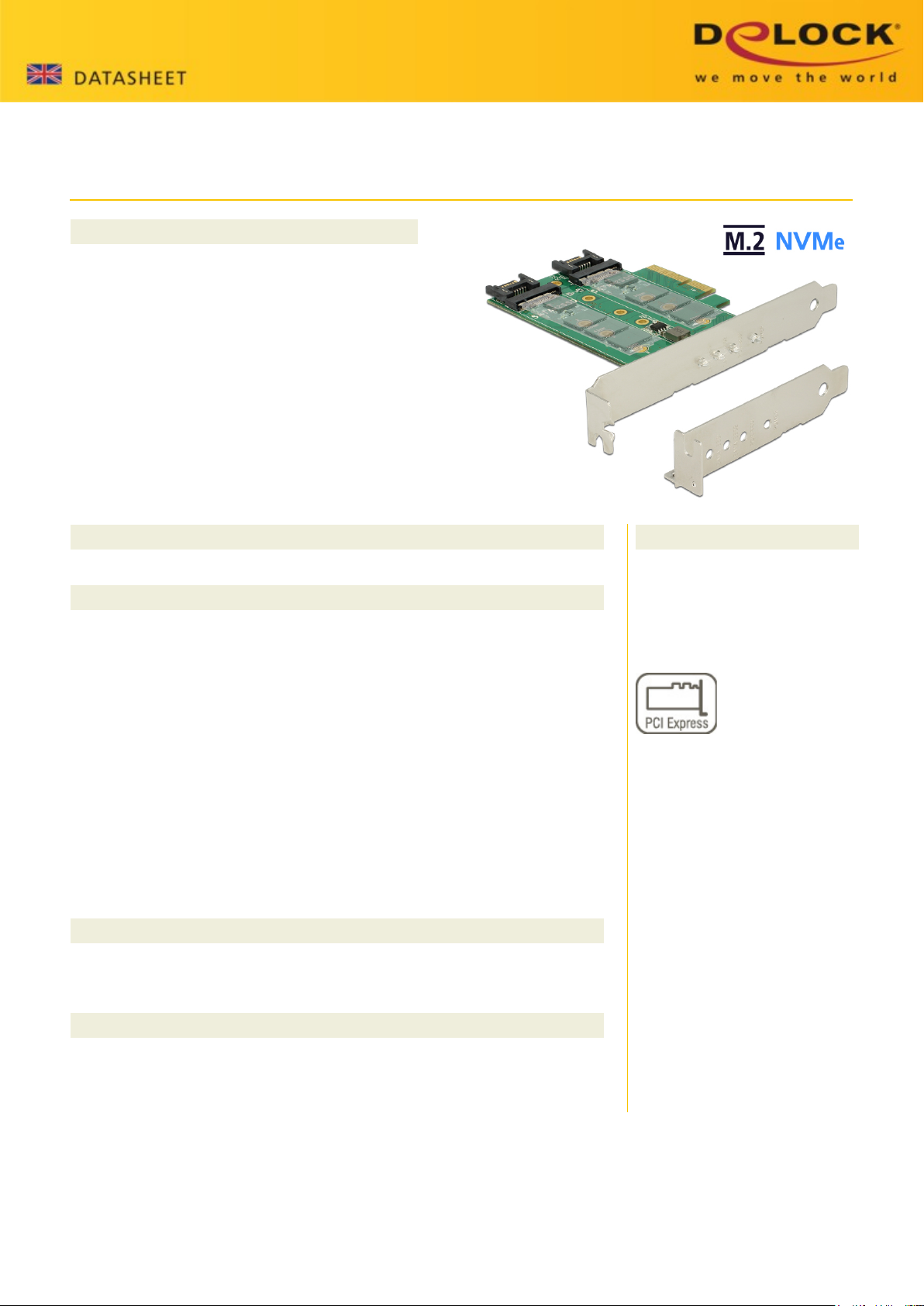

Delock PCI Express Card > 3 x M.2 Slot – Low Profile Form
Factor
Description
This PCI Express card by Delock expands the PC by three
M.2 slots. On the card can be connected up to two M.2
SATA modules in format 2280, 2260, 2242, 2230 and one
M.2 PCIe module in format 2280, 2260, 2242, 2230. The
SATA modules will be connected via SATA cables to the
motherboard.
Special features
• Supports modules with SATA and PCIe interface
Specification
• Connectors:
internal:
2 x 67 pin M.2 key B slot
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
2 x SATA 7 pin plug
• Interface: SATA + PCIe
• Supports
two M.2 modules in format: 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA and
one M.2 module in format: 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• 4 x LED indicator
• Power supply via PCI Express
Item No. 89518
EAN: 4043619895182
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.3
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• One free SATA 7 pin interface for each connected M.2 module based on SATA
Package content
• PCI Express card
• Low profile bracket
• 3 x fixing screw
• User manual
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
89518
1 / 3
27.03.2017
Page 2

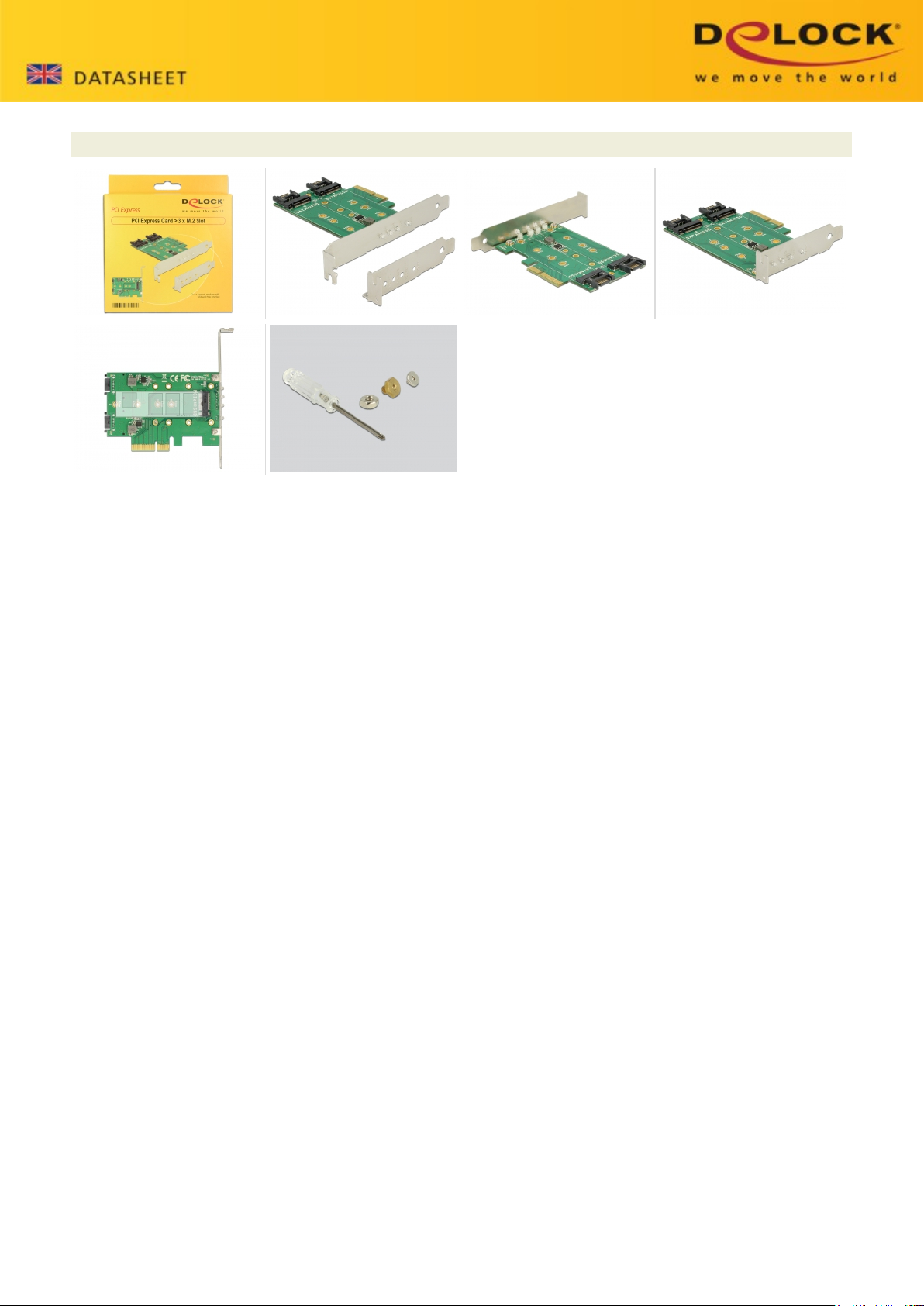

Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
89518
2 / 3
27.03.2017
Page 3
General
function: NVM Express (NVMe)
Supported operating system: Linux Kernel 3.3
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Slot: SATA
PCIe
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA
Maximum height of the components on
the module:
Interface
Internal: 2 x 67 pin M.2 key B slot
Physical characteristics
Slot bracket: low profile
1.35 mm application of double-sided assembled modules supported
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0
2 x SATA 22 pin plug
standard
