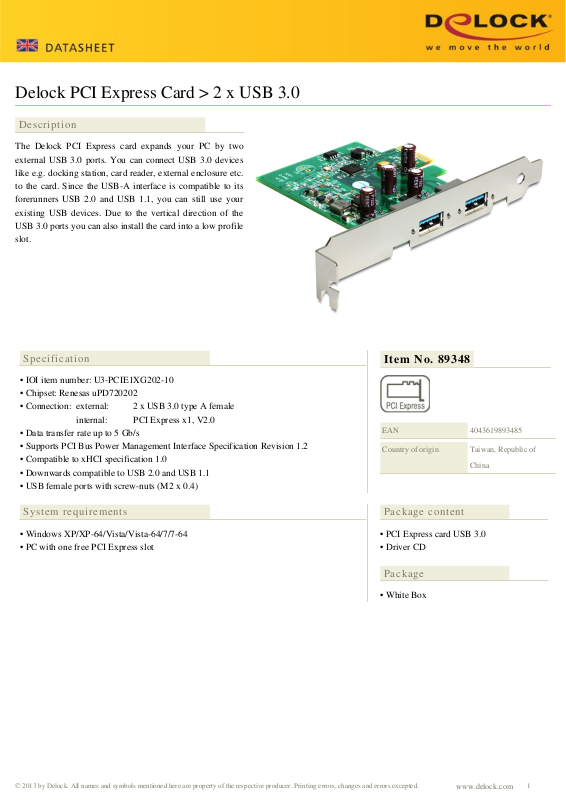

DeLOCK 89348 User Manual

Delock PCI Express Card > 2 x USB 3.0

Description

The Delock PCI Express card expands your PC by two
external USB 3.0 ports. You can connect USB 3.0 devices
like e.g. docking station, card reader, external enclosure etc.
to the card. Since the USB-A interface is compatible to its
forerunners USB 2.0 and USB 1.1, you can still use your
existing USB devices. Due to the vertical direction of the
USB 3.0 ports you can also install the card into a low profile
slot.

Specification

• IOI item number: U3-PCIE1XG202-10

• Chipset: Renesas uPD720202

• Connection: external: 2 x USB 3.0 type A female
internal: PCI Express x1, V2.0

• Data transfer rate up to 5 Gb/s

• Supports PCI Bus Power Management Interface Specification Revision 1.2

• Compatible to xHCI specification 1.0

• Downwards compatible to USB 2.0 and USB 1.1

• USB female ports with screw-nuts (M2 x 0.4)

Item No. 89348

EAN

Country of origin

4043619893485

Taiwan, Republic of
China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64

• PC with one free PCI Express slot

Package content

• PCI Express card USB 3.0

• Driver CD

Package

• White Box
